Vector control
4.9 Vdc control
Drive Functions
136
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
Description of Vdc_max control
,
TVHWS
WRUTXHJHQHUDWLQJFXUUHQWVHWSRLQW
,
TVHWS
6ZLWFKRQOHYHO
Q
VHWS
Q
DFW
9
GF
FWUODFWLYH
$
_Q_
9
GF
W
W
>9@
W

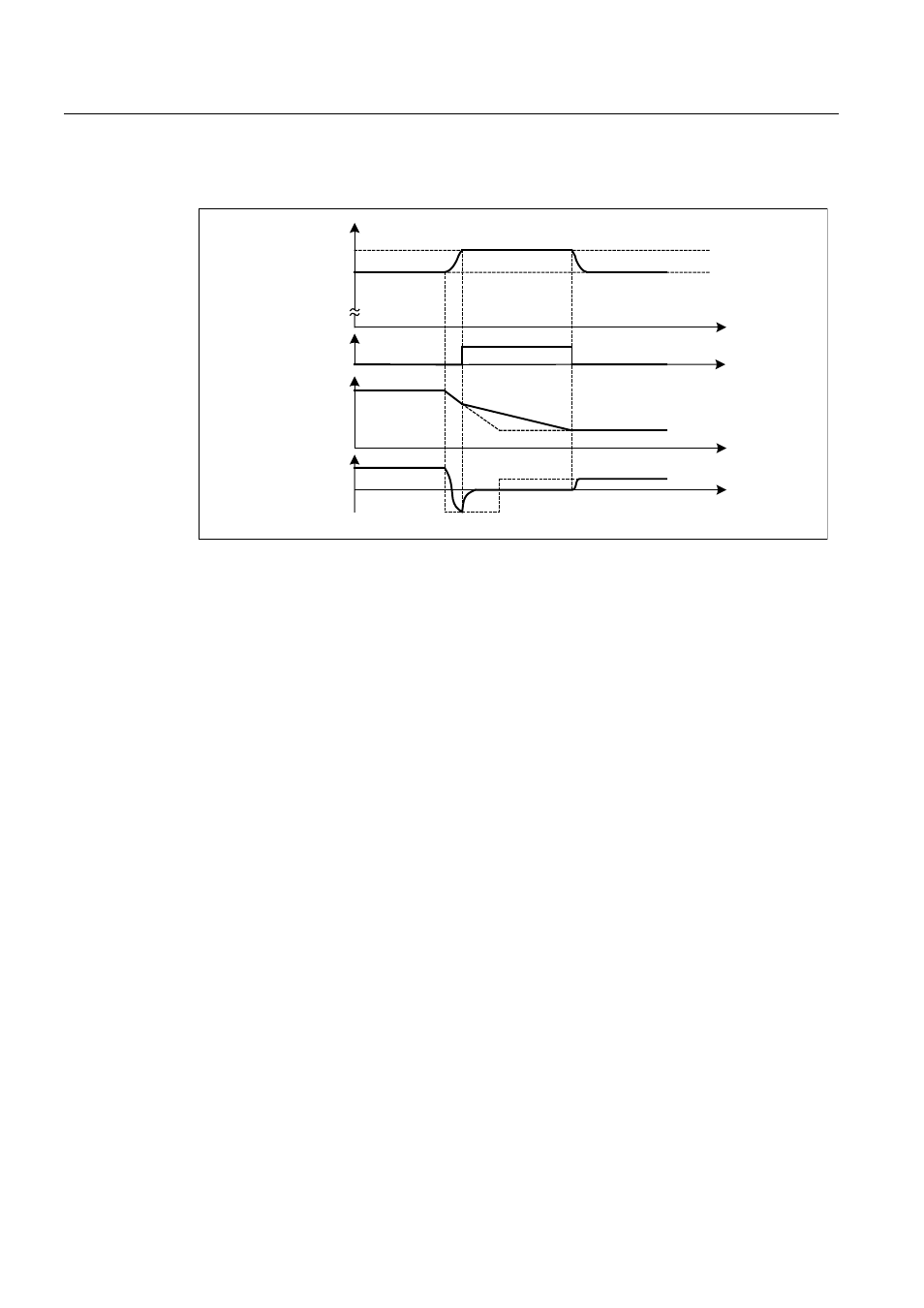

Figure 4-15 Switching Vdc_max control on/off
The switch-in level for Vdc_max control (r1242) is calculated as follows:
● When the function for automatically detecting the switch-on level is switched off
(p1254 = 0)
r1242 = 1.15 * p0210 (device connection voltage, DC link).
● When the function for automatically detecting the switch-on level is switched on
(p1254 = 1)
r1242 = Vdc_max - 50 V (Vdc_max: overvoltage threshold of the Motor Module)
Function diagrams (see SINAMICS S List Manual)
● 6220 Vdc_max controller and Vdc_min controller
Overview of key parameters (see SINAMICS S List Manual)
● p1240[0...n] Vdc controller or Vdc monitoring configuration
● r1242 Vdc_max controller switch-in level
● p1243[0...n] Vdc_max controller dynamic factor (control)
● p1245[0...n] Vdc_min controller switch-in level (kinetic buffering) (control)
● r1246 Vdc_min controller switch-in level (kinetic buffering) (control)
● p1247[0...n] Vdc_min controller dynamic factor (kinetic buffering) (control)
● p1250[0...n] Vdc controller proportional gain (control)
● p1251[0...n] Vdc controller integral time (control)
● p1252[0...n] Vdc controller derivative-action time (control)
● p1254 Vdc_max controller automatic detection ON level (control)
