Applications
11.4 Application examples with the DMC20
Drive Functions
462
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
Note
Drives with enabled safety functions must not be deactivated, see chapter "Safety
Integrated" for further details.
;
;
;
;
;
;
;
;
;
;
;
'0&
;
;
;
;
;
'5,9(&/L4
&8 $FWLYH
/LQH
0RGXOH
6LQJOH
0RWRU
0RGXOH
;
;
;
6LQJOH
0RWRU
0RGXOH
;
;
;
6LQJOH
0RWRU
0RGXOH
;
;
;
6LQJOH
0RWRU
0RGXOH
;
;
;
6LQJOH
0RWRU
0RGXOH
;
;
;
6LQJOH
0RWRU
0RGXOH
;
;
;
6LQJOH
0RWRU
0RGXOH

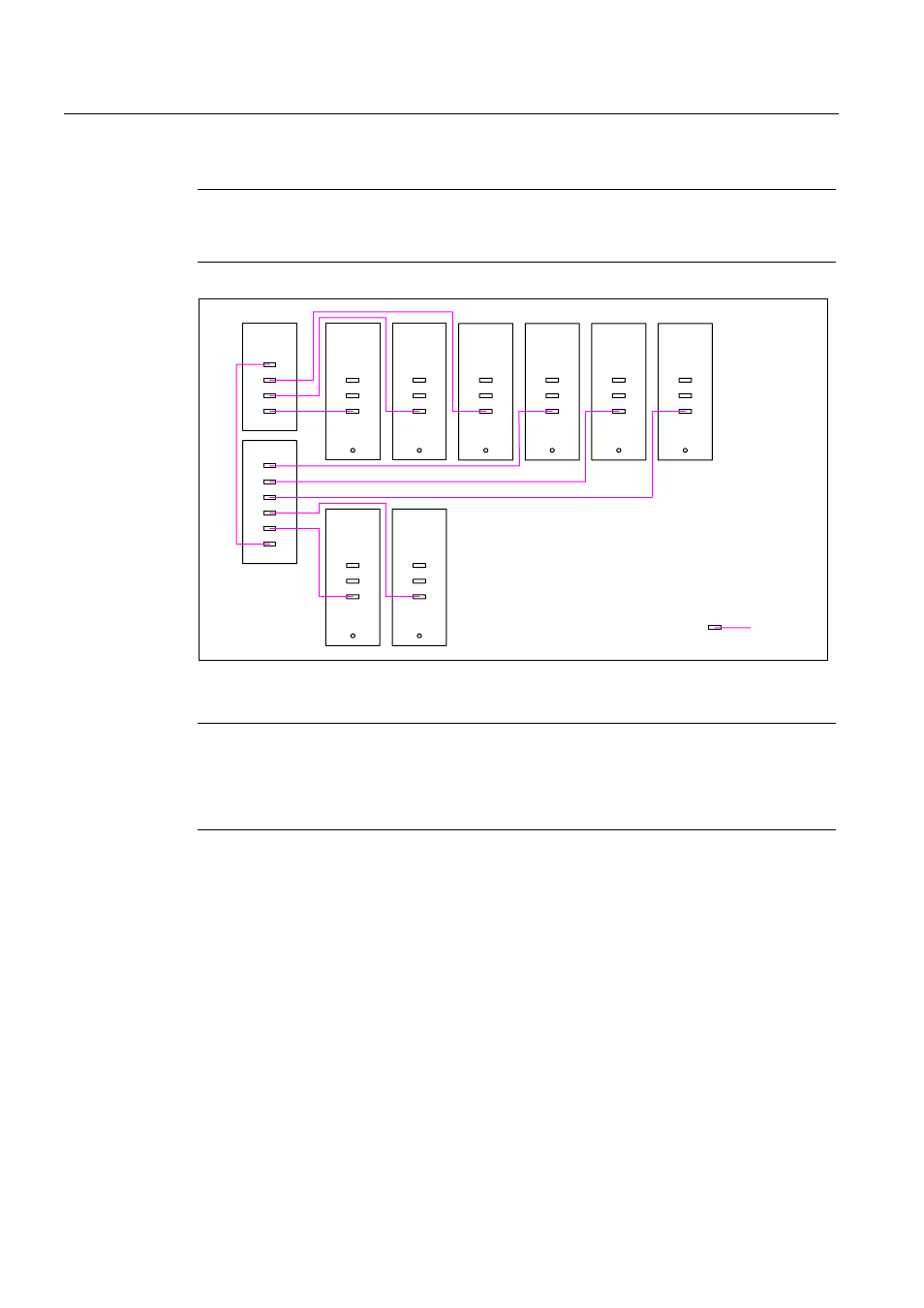

Figure 11-5 Example: topology vector V/f hot plugging
Note
In order to disconnect and isolate the power unit from the DC link, additional measures must
be applied - such as DC link wiring through the DC link infeed adapter and DC link
disconnecting devices. The safety information and instructions in the Equipment Manual
must be carefully observed.
11.4.5 Instructions for offline commissioning with STARTER
With automatic online configuration in STARTER, the DMC20 is detected and adopted in the
topology. Offline commissioning requires the following operation steps:
1. Configure a drive unit offline
2. Right-click on Topology -> enter new object -> DRIVE-CLiQ Hub
3. Configuring a topology
