Extended setpoint channel

2.6 Main/supplementary setpoint and setpoint modification

Drive Functions

Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4

2.6

Main/supplementary setpoint and setpoint modification

Description

The supplementary setpoint can be used to incorporate correction values from lower-level

controllers. This can be easily carried out using the addition point for the

main/supplementary setpoint in the setpoint channel. Both variables are imported

simultaneously via two separate or one setpoint source and added in the setpoint channel.

'LUHFWLRQRIURWDWLRQOLPLWLQJ

'LUHFWLRQRIURWDWLRQUHYHUVDO

6FDOLQJPDLQVHWSRLQW

6FDOLQJ6XSSOHPHQWDU\

VHWSRLQW

0DLQVHWSRLQW

6XSSOHPHQWDU\VHWSRLQW

6XSSUHVVLRQEDQGZLGWKV

6HWSRLQWOLPLWDWLRQ

5DPSIXQFWLRQJHQHUDWRU

0RWRUFRQWURO

S>&@

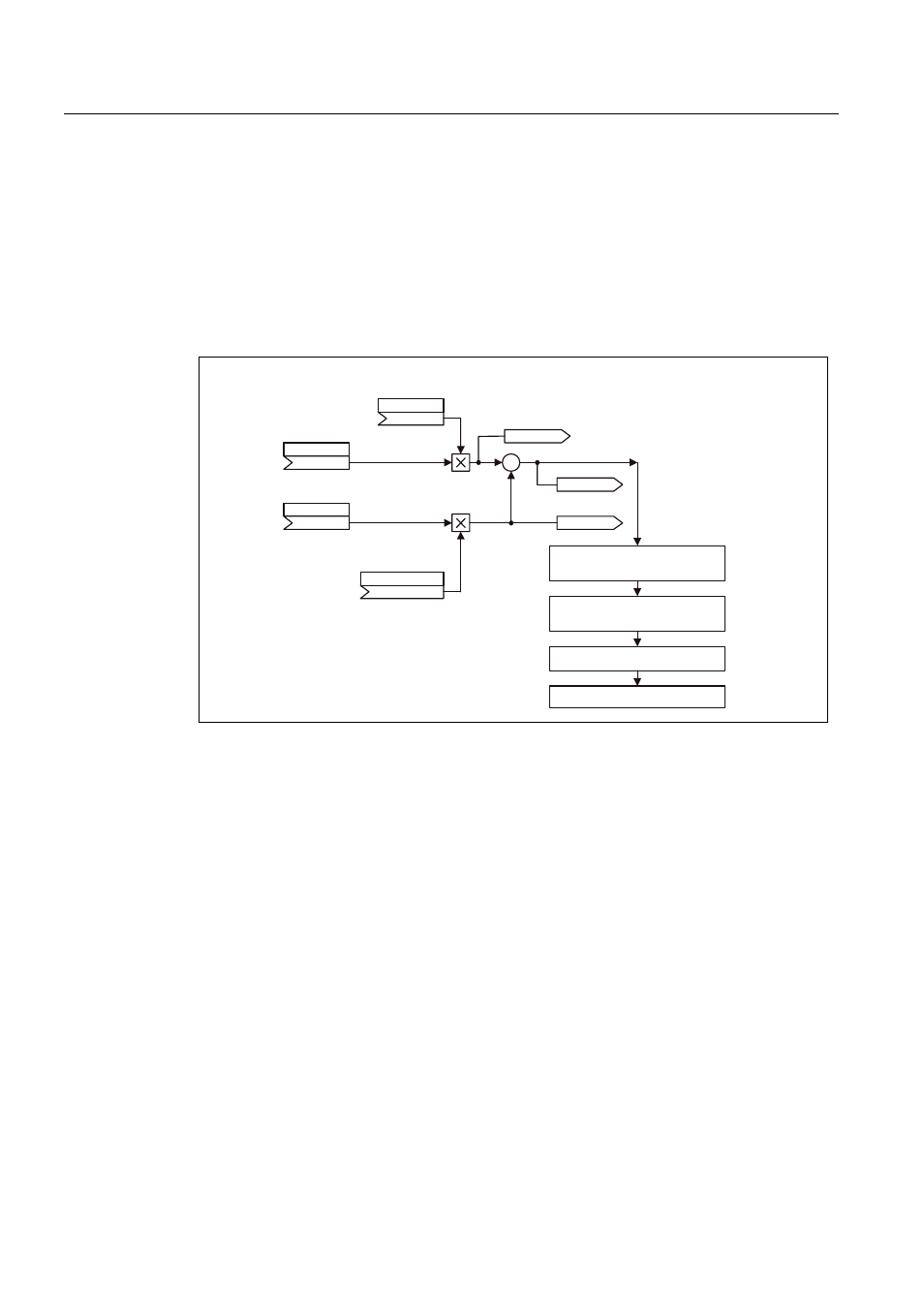

Figure 2-5

Setpoint addition, setpoint scaling

Function diagrams (see SINAMICS S List Manual)

● 1550 Setpoint channel
● 3030 Main/added setpoint, setpoint scaling, jogging

Overview of key parameters (see SINAMICS S List Manual)

Adjustable parameters

● p1070[C] CI: Main setpoint
● p1071[C] CI: Main setpoint scaling
● p1075[C] CI: Supplementary setpoint
● p1076[C] CI: Supplementary setpoint scaling
