Basic information about the drive system
12.4 BICO technology: interconnecting signals
Drive Functions
482
Function Manual, (FH1), 07/2007 Edition, 6SL3097-2AB00-0BP4
%2%LQHFWRURXWSXW
6LJQDOVRXUFH
%,%LQHFWRULQSXW
6LJQDOVLQN
2))
2))
2))
'ULYH
'ULYH
2))
2))
2))
U
', ;
9
S&
S&
S&
S&

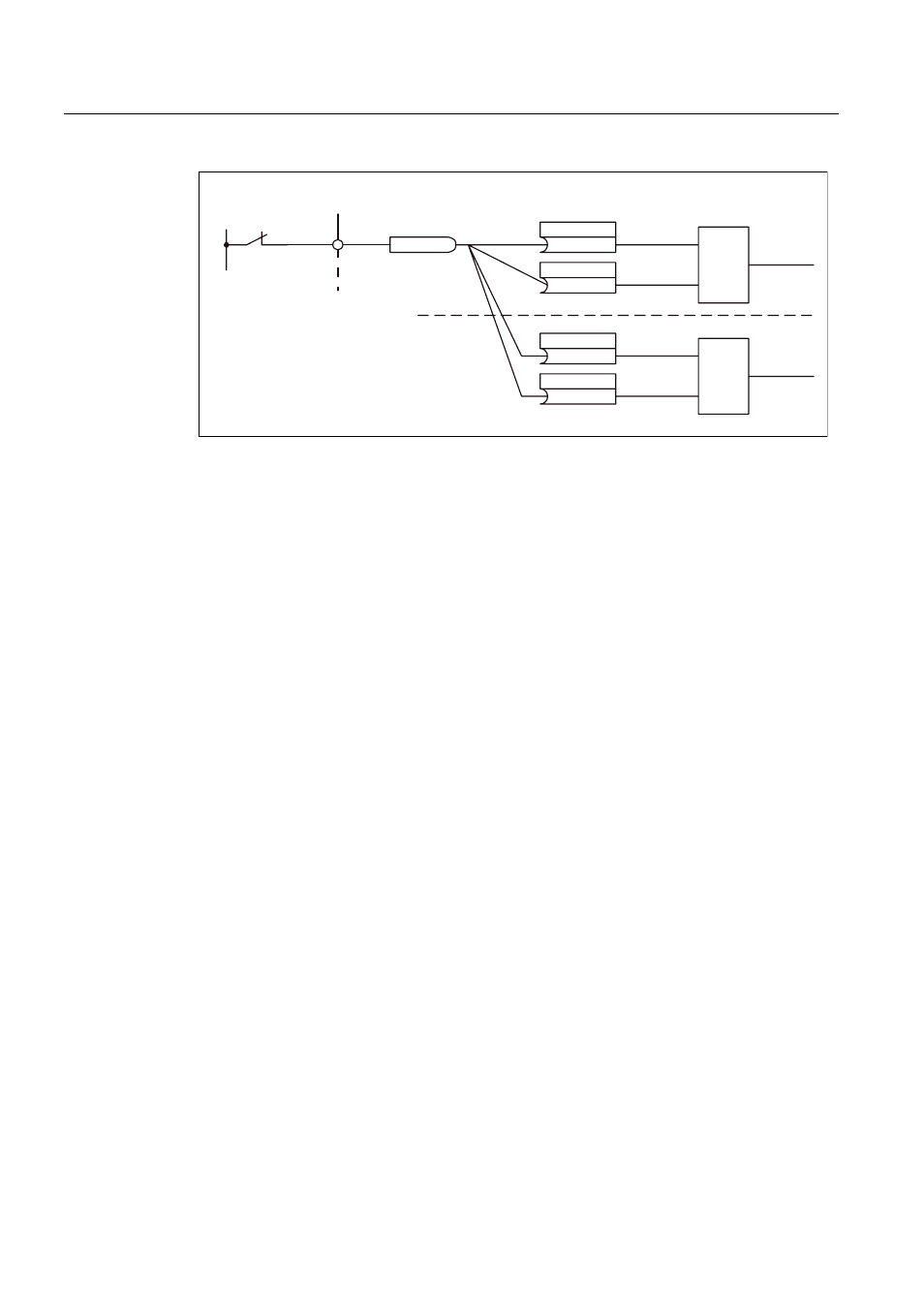

Figure 12-8 Connection of OFF3 to several drives (example)
12.4.6 BICO technology
BICO interconnections to other drives
The following parameters are available for BICO interconnections to other drives:
● r9490 Number of BICO interconnections to other drives
● r9491[0...15] BI/CI of BICO interconnections to other drives
● r9492[0...15] BO/CO of BICO interconnections to other drives
● p9493[0...15] Reset BICO interconnections to other drives
Copying drives
When a drive is copied, the interconnection is copied with it.
Binector-connector converters and connector-binector converters
Binector-connector converter
● Several digital signals are converted to a 32-bit integer double word or to a 16-bit integer
word.
● p2080[0...15] BI: PROFIdrive PZD send bit-serial
Connector-binector converter
● A 32-bit integer double word or a 16-bit integer word is converted to individual digital
signals.
● p2099[0...1] CI: PROFIdrive PZD selection receive bit-serial
