Communication Chapter 9

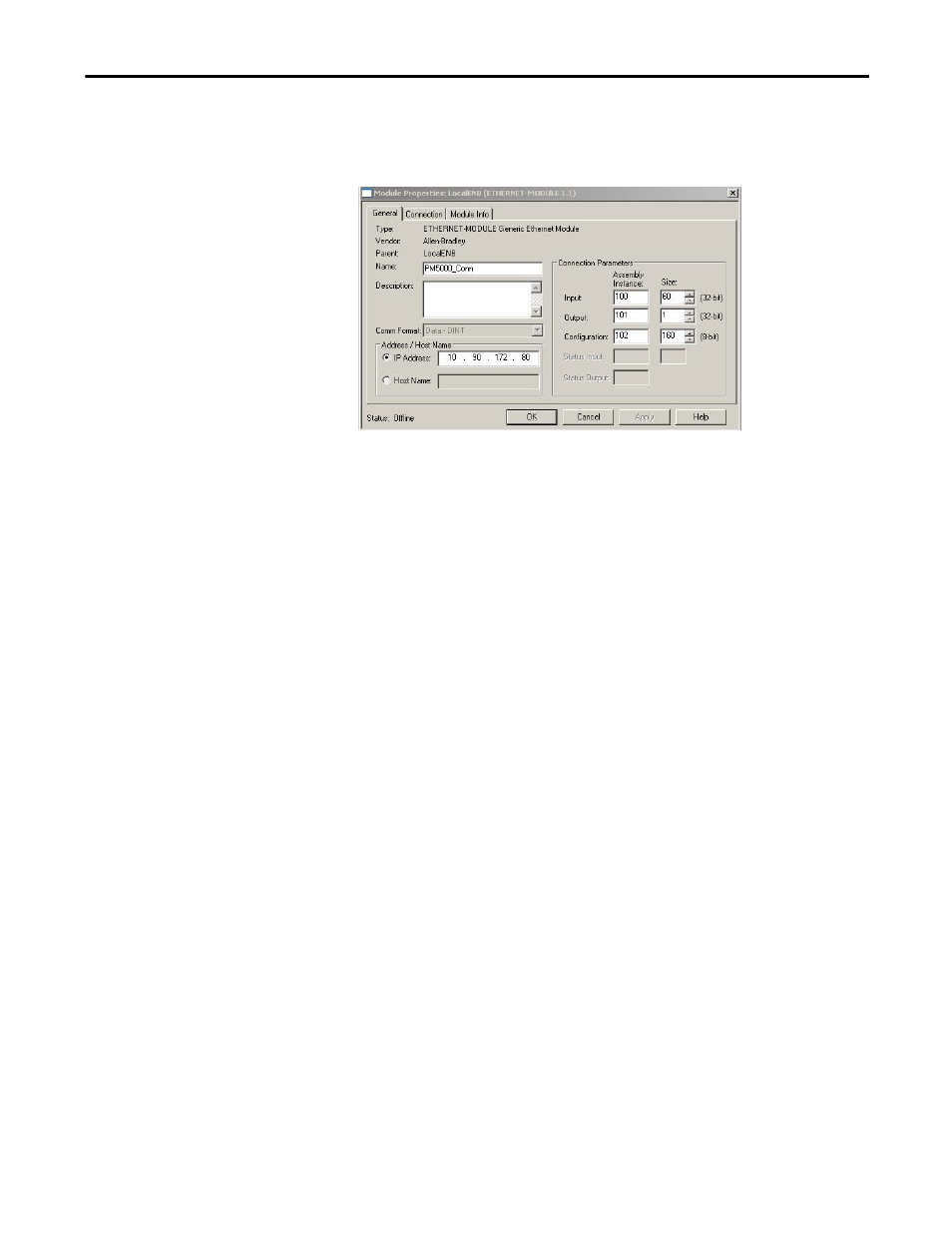

3. Fill in the power monitor IP address, and the values shown in the figure
below for the input, output, and configuration instances.
4. Click OK when finished.
The Input instance contains a variety of data types. You need to create controller
tags and write controller logic to copy the Input instance data into a usable form.
DeviceNet I/O Connection
The DeviceNet Class 1 connection sets up implicit communication between the
DeviceNet scanner and the PowerMonitor 5000 unit. This connection makes it
possible to read power monitor parameters into a Logix controller and to control
the power monitor discrete outputs. The DeviceNet network connection does
not include the configuration instance of the PowerMonitor 5000 unit. You can
use a web browser for setting up the power monitor, except that when a
DeviceNet network connection is active, the web browser is not permitted to
change the Configuration.OptionalComm.DNT setup values or execute output
forcing commands.
It is not necessary to establish an I/O connection to allow explicit messaging with
a DeviceNet PowerMonitor 5000 unit that is connected on a DeviceNet
network.
