Viewing the mesh statistics summary

7

1. Select Status and Statistics -> Mesh Stats from the Brocade Mobility 7131N-FGR Access Point

menu tree.

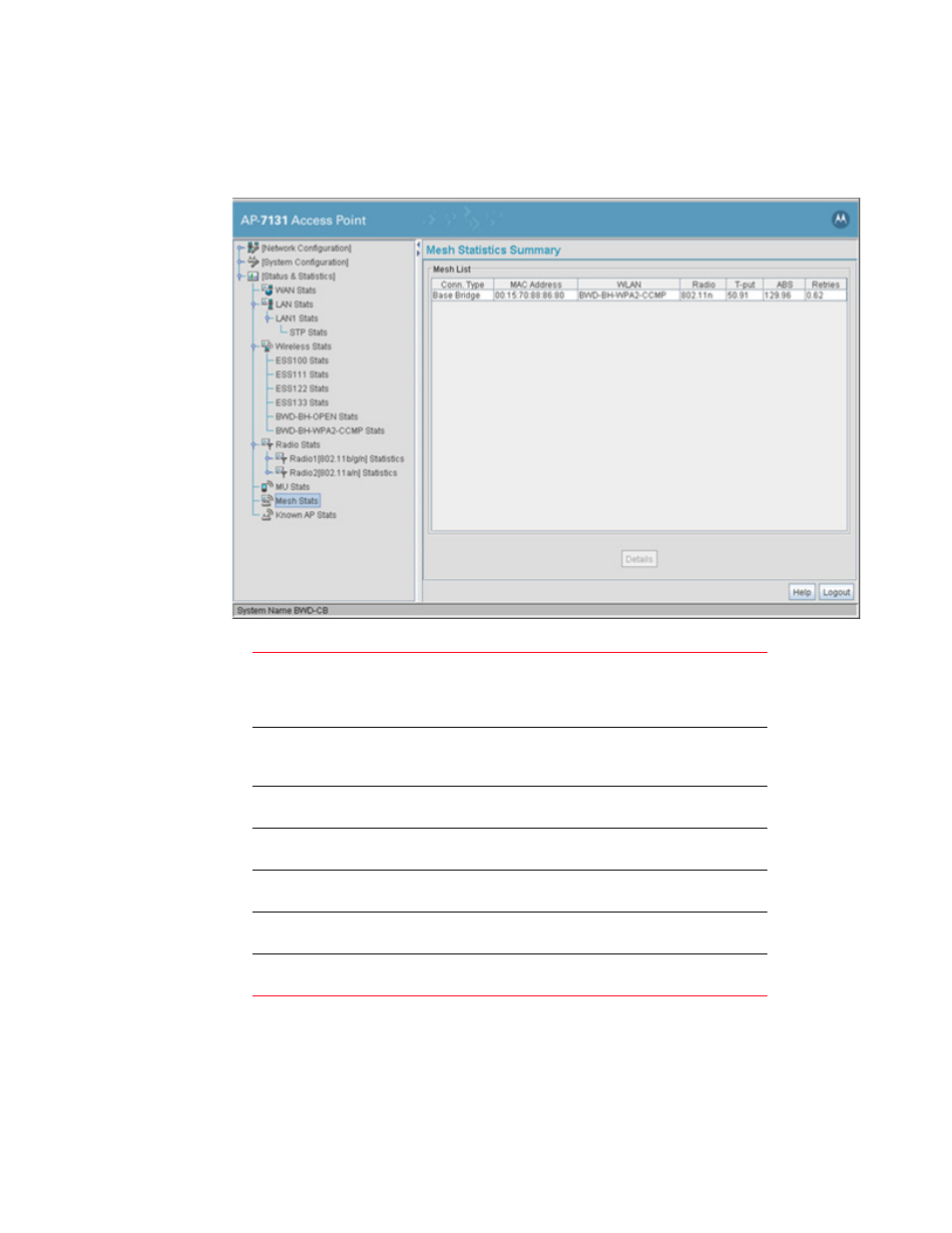

The Mesh Statistics Summary screen displays the following information:

2. Click the Refresh button to update the display of the Mesh Statistics Summary screen to the

latest values.s

3. Click the Details button to display AP properties and radio information for those access points

in a mesh configuration with this detecting access point.

Conn Type

Displays whether the bridge has been defined as a base bridge or
a client bridge. For information on defining configuring the access
point as either a base or client bridge, see

“Configuring mesh

networking support”

on page 523.

MAC Address

The unique 48-bit, hard-coded Media Access Control address,
known as the devices station identifier. This value is hard coded at
the factory by the manufacturer and cannot be changed.

WLAN

Displays the WLAN name each wireless bridge is interoperating
with.

Radio

Displays the name of the 802.11a/n or 802.11b/g/n radio each
bridge is associated with.

T-put

Displays the total throughput in Megabits per second (Mbps) for
each associated bridge.

ABS

Displays the Average Bit Speed (ABS) in Megabits per second
(Mbps) for each associated bridge.

Retries

Displays the average number of retries per packet. A high number
retries could indicate possible network or hardware problems.
