Viewing LAN statistics
7

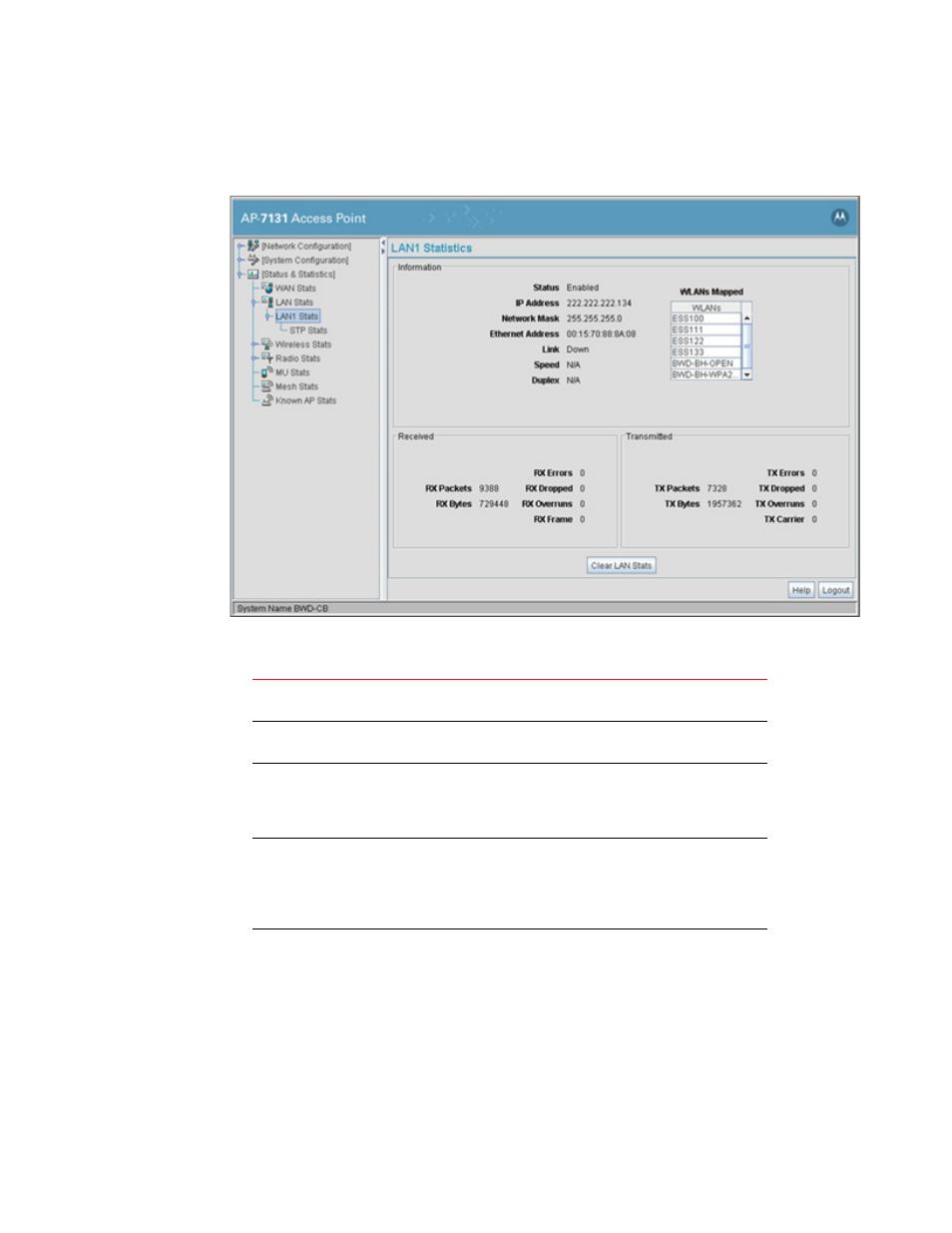

1. Select Status and Statistics -> LAN Stats -> LAN1 Stats (or LAN2 Stats) from the Brocade
Mobility 7131N-FGR Access Point menu tree.
2. Refer to the Information field to view the following Brocade Mobility 7131N-FGR Access Point
device address information:
Status
Displays whether this particular LAN has been enabled as viable
subnet from within the LAN Configuration screen.
IP Address
The Internet Protocol (IP) addresses for the Brocade Mobility
7131N-FGR Access Point LAN port.
Network Mask
The first two sets of numbers specify the network domain, the next
set specifies the subset of hosts within a larger network. These
values help divide a network into subnetworks and simplify routing
and data transmission.
Ethernet Address
The Media Access Control (MAC) address of the Brocade Mobility
7131N-FGR Access Point. The MAC address is hard coded at the
factory and cannot be changed. For more information on how
access point MAC addresses are assigned, see
Link
The Link parameter displays Up if the LAN connection is active
between the Brocade Mobility 7131N-FGR Access Point and
network, and Down if the LAN connection is interrupted or lost.
Use this information to assess the current connection status of
LAN 1 or LAN2.
