Brocade Mobility 7131N-FGR Product Reference Guide

229

53-1001947-01

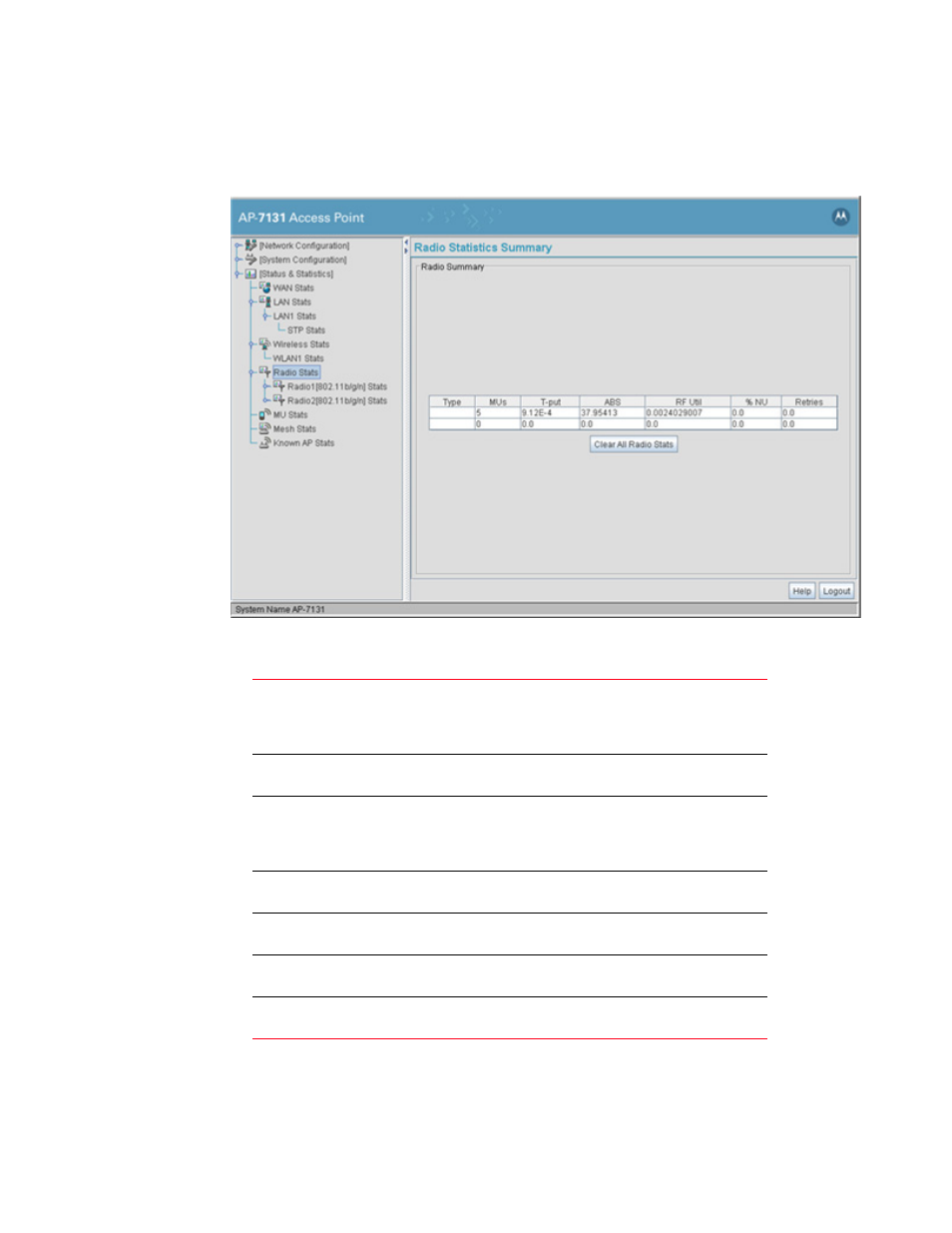

Viewing radio statistics summary

7

1. Select Status and Statistics -> Radio Stats from the Brocade Mobility 7131N-FGR Access Point

menu tree.

2. Refer to the Radio Summary field to reference Brocade Mobility 7131N-FGR Access Point

radio information.

3. Click the Clear All Radio Stats button to reset each of the data collection counters to zero in

order to begin new data collections.

Type

Displays the type of radio (either 802.11a/n or 802.11b/g/n)
currently deployed by the Brocade Mobility 7131N-FGR Access
Point. To configure the radio type, see

“Setting the WLAN’s radio

configuration”

on page 137.

MUs

Displays the total number of MUs currently associated with each
Brocade Mobility 7131N-FGR Access Point radio.

T-put

Displays the total throughput in Megabits per second (Mbps) for
each Brocade Mobility 7131N-FGR Access Point radio listed. To
adjust the data rate for a specific radio, see

“Configuring the

802.11a/n or 802.11b/g/n radio”

on page 142.

ABS

Displays the Average Bit Speed (ABS) in Megabits per second
(Mbps) for each Brocade Mobility 7131N-FGR Access Point radio.

RF Util

Displays the approximate RF Utilization for each Brocade Mobility
7131N-FGR Access Point radio

% NU

Displays the percentage of the total packets that are non-unicast.
Non-unicast packets include broadcast and multicast packets.

Retries

Displays the average number of retries per packet on each radio. A
high number could indicate network or hardware problems.
