Viewing WAN statistics
7
Viewing WAN statistics

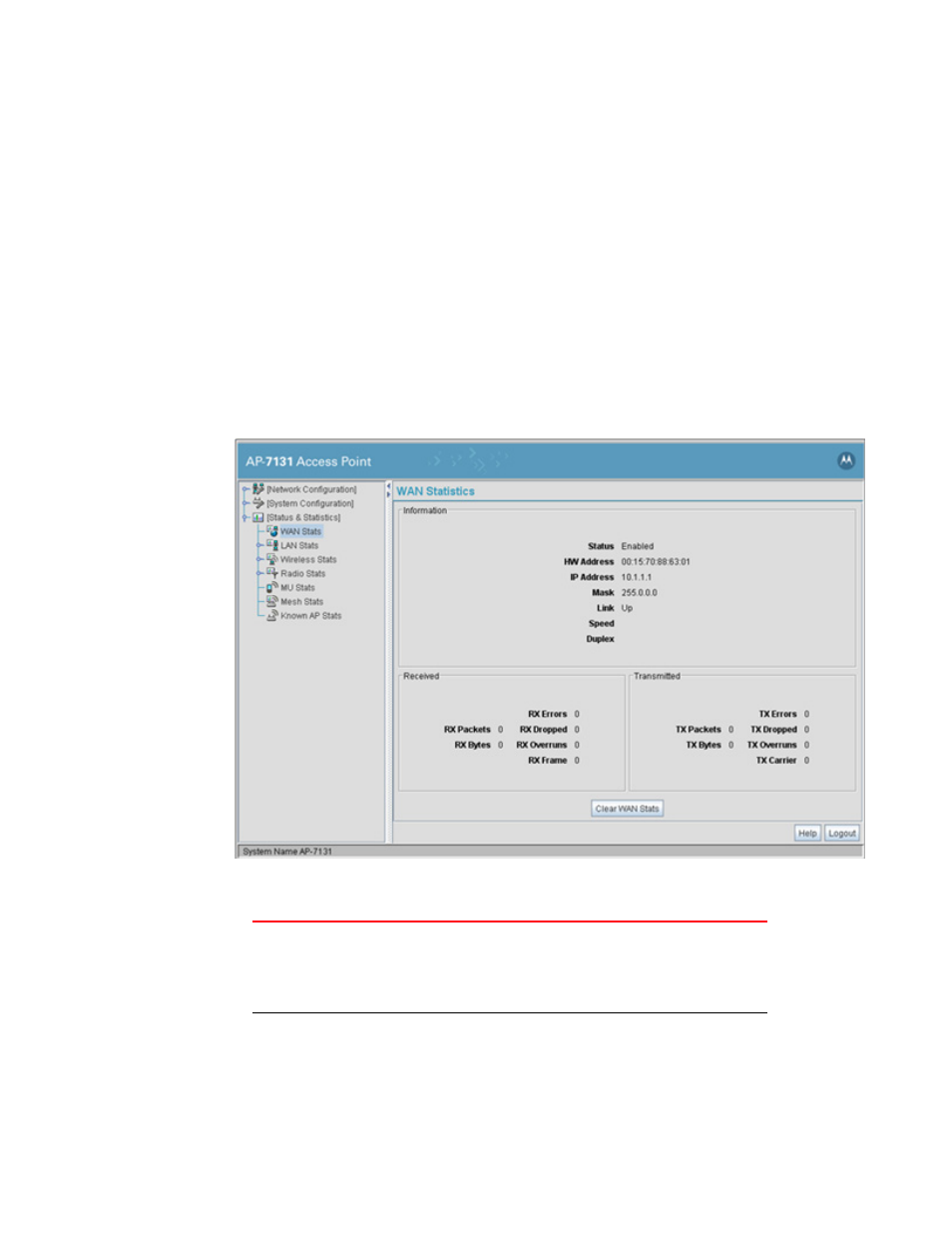

Use the Brocade Mobility 7131N-FGR Access Point WAN Stats screen to view real-time statistics for
monitoring the Brocade Mobility 7131N-FGR Access Point activity through its Wide Area Network
(WAN) port.
The Information field of the WAN Stats screen displays basic WAN information, generated from
settings on the WAN screen. The Received and Transmitted fields display statistics for the
cumulative packets, bytes, and errors received and transmitted through the WAN interface since it
was last enabled or the AP was last rebooted. The Brocade Mobility 7131N-FGR Access Point WAN
Stats screen is view-only with no configurable data fields.
To view Brocade Mobility 7131N-FGR Access Point WAN Statistics:
1. Select Status and Statistics -> WAN Stats from the Brocade Mobility 7131N-FGR Access Point
menu tree.
2. Refer to the Information field to reference the following Brocade Mobility 7131N-FGR Access
Point WAN data:
Status
The Status field displays Enabled if the WAN interface is enabled
on the WAN screen. If the WAN interface is disabled on the WAN
screen, the WAN Stats screen displays no connection information
and statistics. To enable the WAN connection, see
HW Address
The Media Access Control (MAC) address of the Brocade Mobility
7131N-FGR Access Point WAN port. The WAN port MAC address is
hard coded at the factory and cannot be changed. For more
information on how access point MAC addresses are assigned,
see
