Configuring the LAN interface
5
1. Select Network Configuration-> LAN -> LAN1 (or LAN2)-> Type Filter from the Brocade Mobility
7131N-FGR Access Point menu tree.

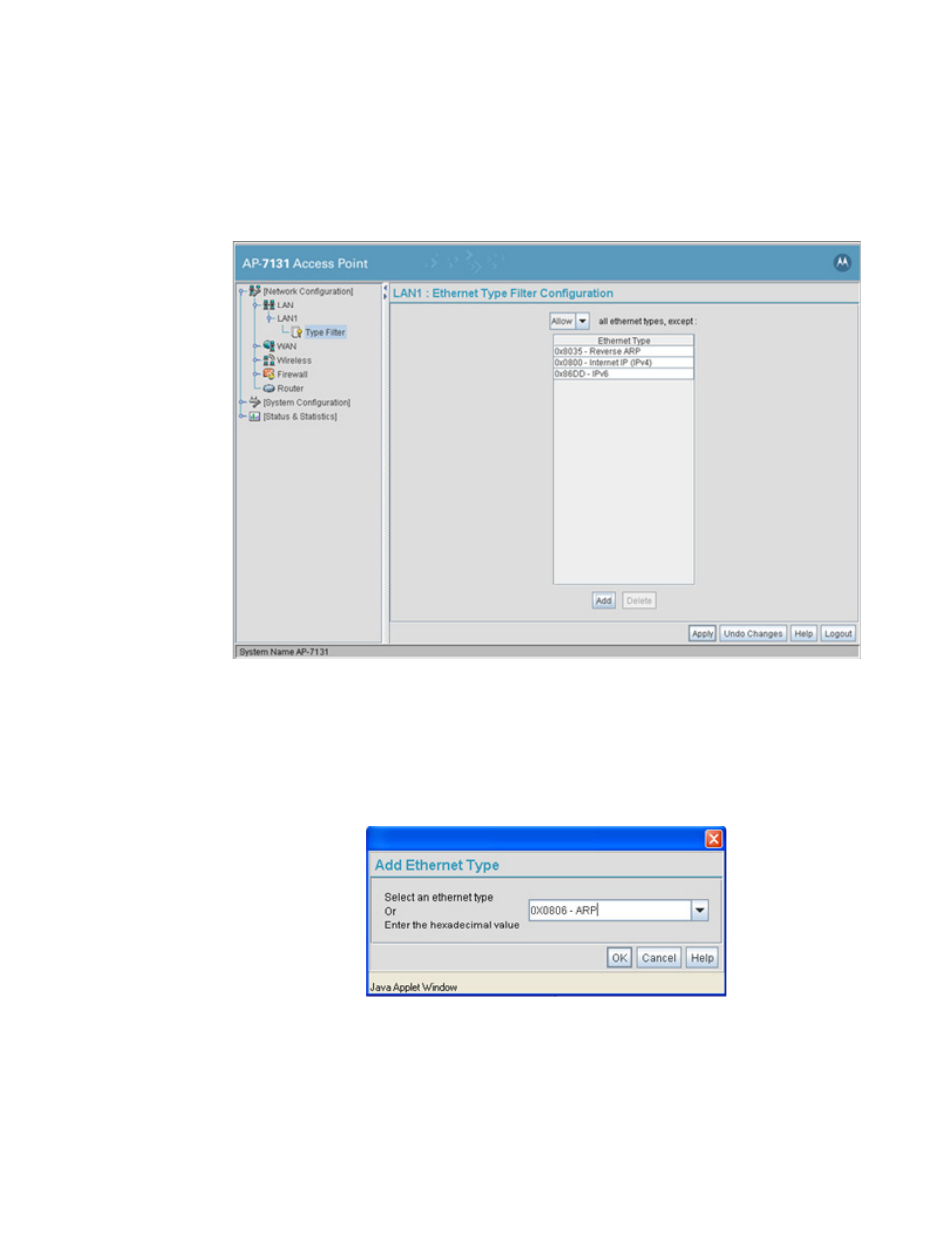

The Ethernet Type Filter Configuration screen displays for the LAN. No Ethernet types are
displayed (by default) when the screen is first launched.
2. Use the all ethernet types, except drop-down menu to designate whether the Ethernet Types
defined for the LAN are allowed or denied for use by the Brocade Mobility 7131N-FGR Access
Point.
3. To add an Ethernet type, click the Add button.
The Add Ethernet Type screen displays. Use this screen to add one type filter option at a time,
for a list of up to 16 entries.
Packet types supported for the type filtering function include 16-bit DIX Ethernet types as well
as Brocade proprietary types. Select an Ethernet type from the drop down menu, or enter the
Ethernet type’s hexadecimal value. See your System Administrator if unsure of the implication
of adding or omitting a type from the list for either LAN1 or LAN2.
4. To optionally delete a type filtering selection from the list, highlight the packet type and click
the Delete button.
