4. RC Gateway Function setting

[Procedure 9] RC PC Software Startup

Start up RC PC Software.

[Refer to the operation manual of the PC software for the details of the RC PC software.]

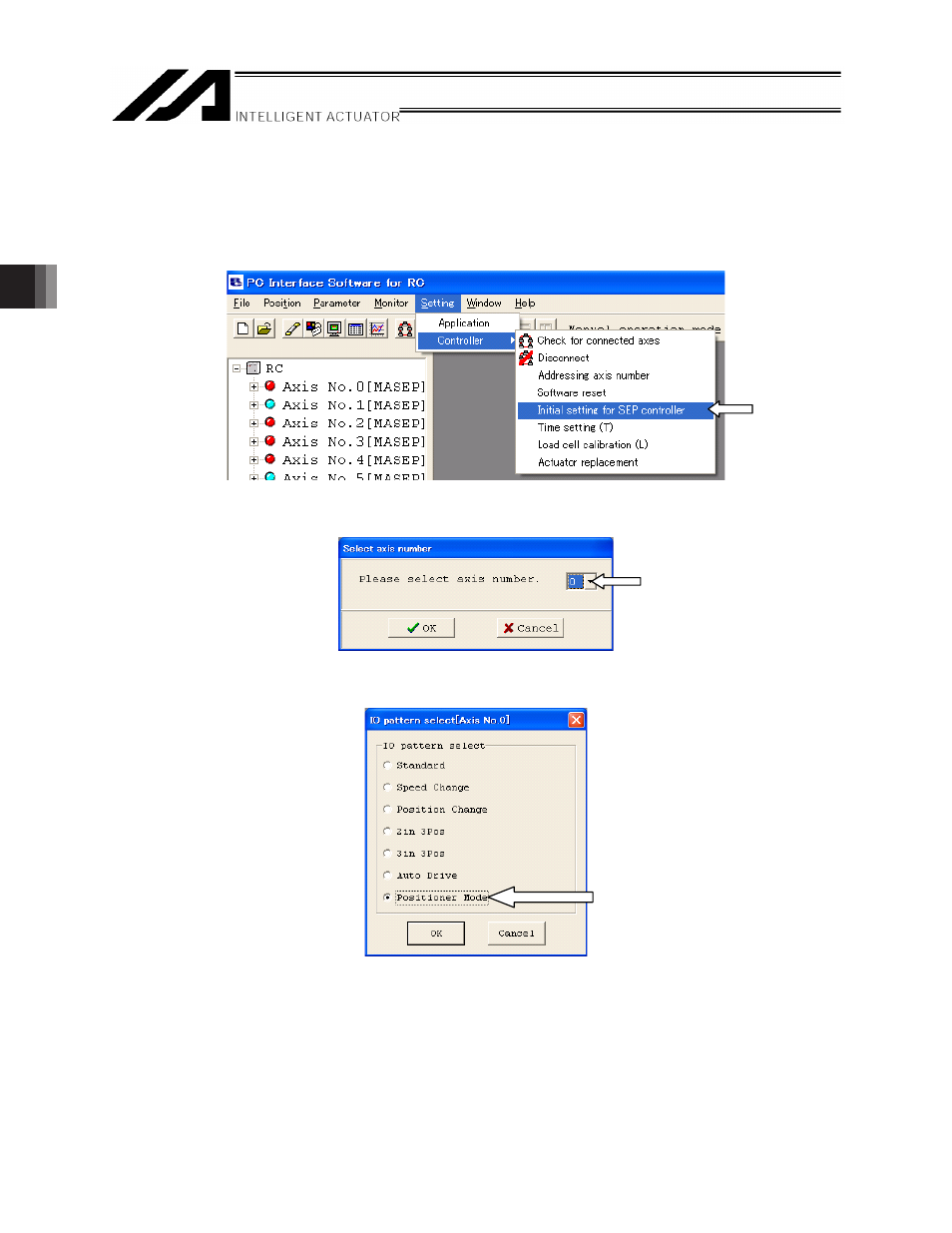

[Procedure 10] Operation Pattern Selected

1) Select the initial setting of SEP from the controller menu.

2) Select the axis number which the setting is to be conducted.

3) Select Positioner Mode in IO pattern select and click on

OK button.
