4. RC Gateway Function setting
69

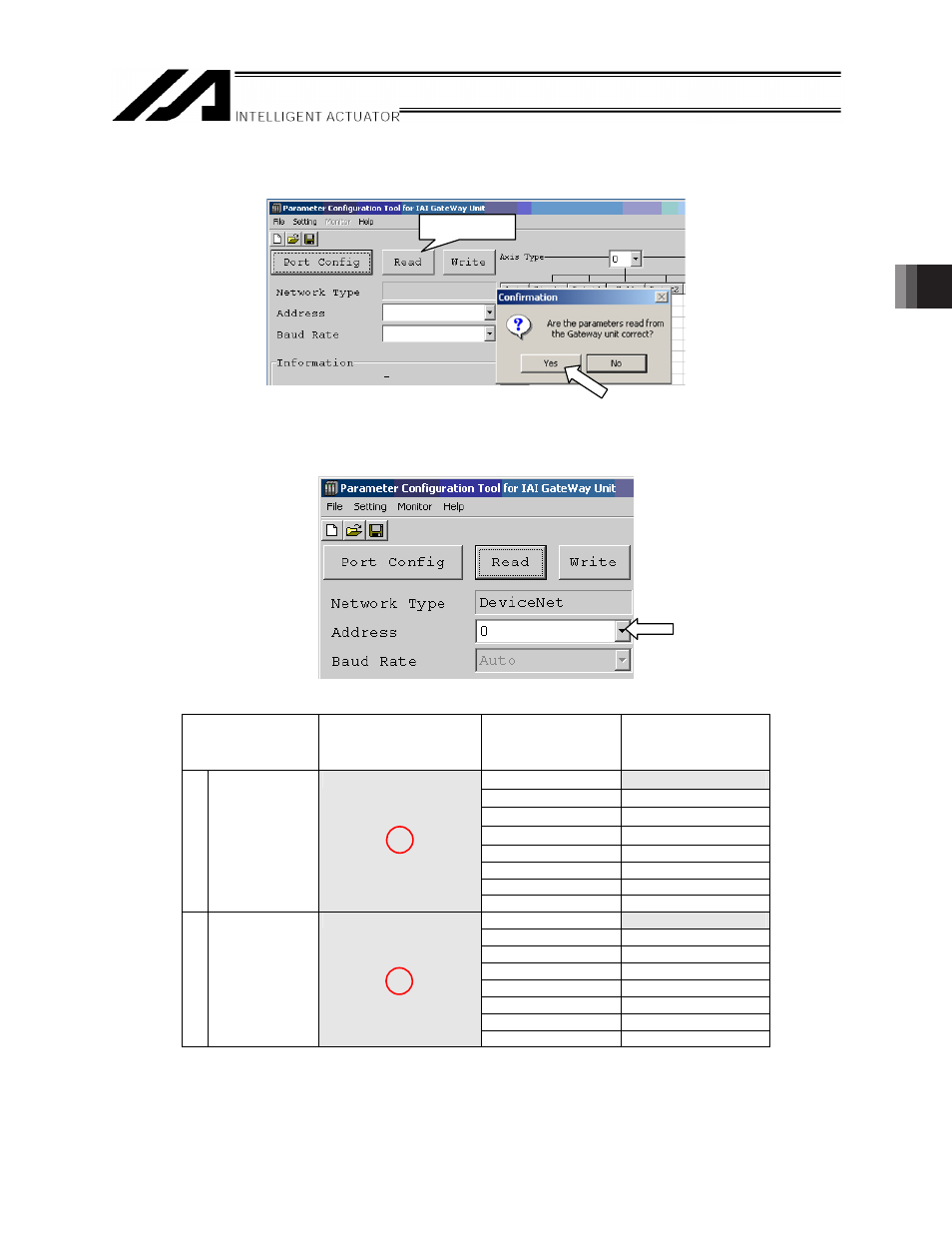

3) Once the main window is open, click on Read button and then click Yes.
[Procedure 2] Setting for Address
Set the Fieldbus node address within the range from 0 to 14.
Set the top axis number (Axis No.) of MSEP set in the master (X-SEL) as the node
address.
Example 1) When connecting 2 units of MSEP to a slave controller
Model Code of
Slave Controller
Address setting value
(Node Address)
Axis number on
slave side
(Axis No.)
Axis number on
master side (X-SEL)
(Axis No.)
0 0
1 1
2 2
3 3
4 4
5 5
6 6
1 MSEP
7 7
0 8
1 9
2 10
3 11
4 12
5 13
6 14
2 MSEP
7 15
Read button
8
0
