4. RC Gateway Function setting
54
[Procedure 1] Axis No. Setting
The setting of the axis numbers differ for each SCON-C, PCON-SE, ACON-SE and
ERC2-SE.
In the below, describes the setting for SCON-C first, and then the settings for PCON-SE,
ACON-SE and ERC2-SE.

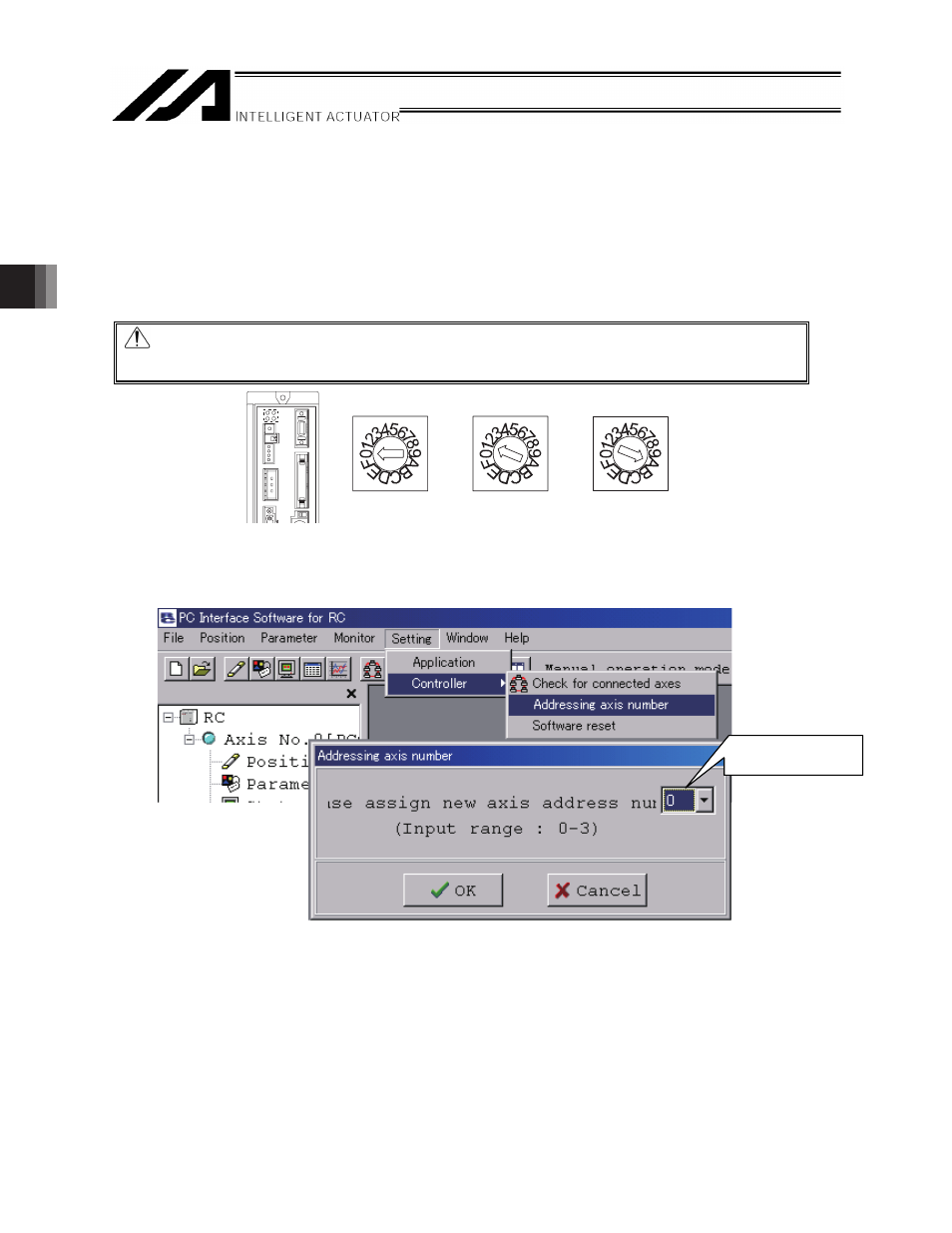

x SCON-C setting
Set the axis number with the hexadecimal rotary switch allocated on the front panel.
Set the arrow to the desired axis number with using a slotted screw driver.
Caution㧦 Have the setting of the axis number not duplicated. It should also not duplicate with
the ROBONET construction units.
It is not necessarily be in numbers in a row.
x The Setting of PCON-SE, ACON-SE and ERC2-SE
Click Setting o Controller o Addressing axis number in RC PC Software.
In Addressing axis number window, input the axis numbers (from 0 to 15) and click OK.
Setting axis number 0 Setting axis number 1 Setting axis number 10
Input the axis
number for setting
