1. Outline of Control Method
13
[2] For Fieldbus type (DeviceNet Communication system)

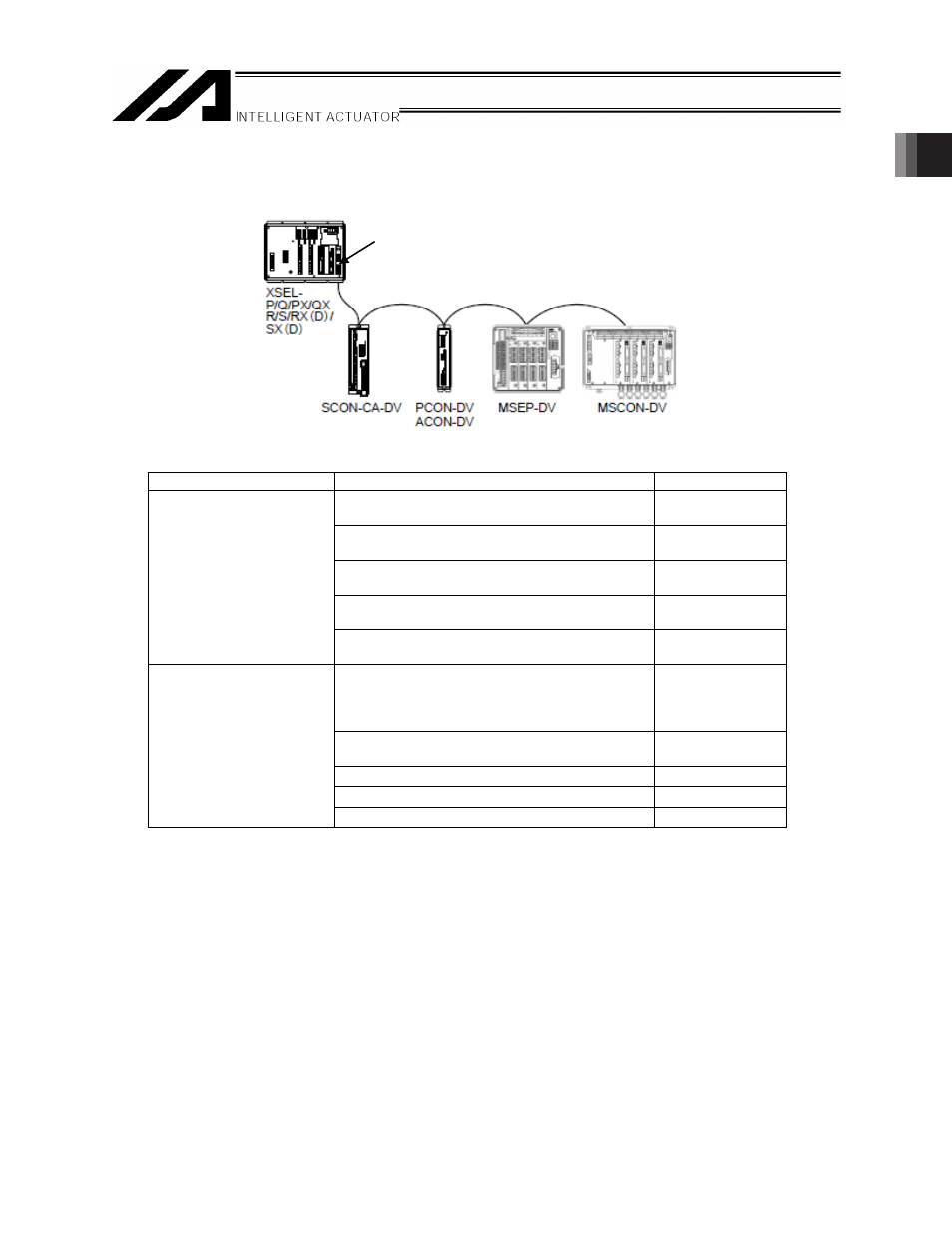

Connect an X-SEL controller and slaves (RC controllers) with DeviceNet system.
Ɣ System Configuration Example
Applicable Controller
Controller name Model No. Applicable version
Equipped with XSEL-P/Q RC Gateway Fieldbus
Board (option)
V1.27 or later
Equipped with XSEL-PX/QX RC Gateway
Fieldbus Board (option)
V0.59 or later
Equipped with XSEL-R/S RC Gateway Fieldbus
Board (option)
V1.04 or later
Equipped with XSEL-RX/SX RC Gateway
Fieldbus Board (option)
V1.05 or later
X-SEL Controller
Equipped with XSEL-RXD/SXD RC Gateway
Fieldbus Board (option)
㧙
PCON-C-DV
PCON-CG-DV
PCON-CA-DV
PCON-CFA-DV
㧙
ACON-C-DV
ACON-CG-DV
㧙
SCON-CA-DV 㧙
MSEP-DV 㧙
RC Controller
MSCON-DV
Refer to Item 3.2.2, for the network components.
RC Gateway
Fieldbus Board
(option)
