3. W
iring
33

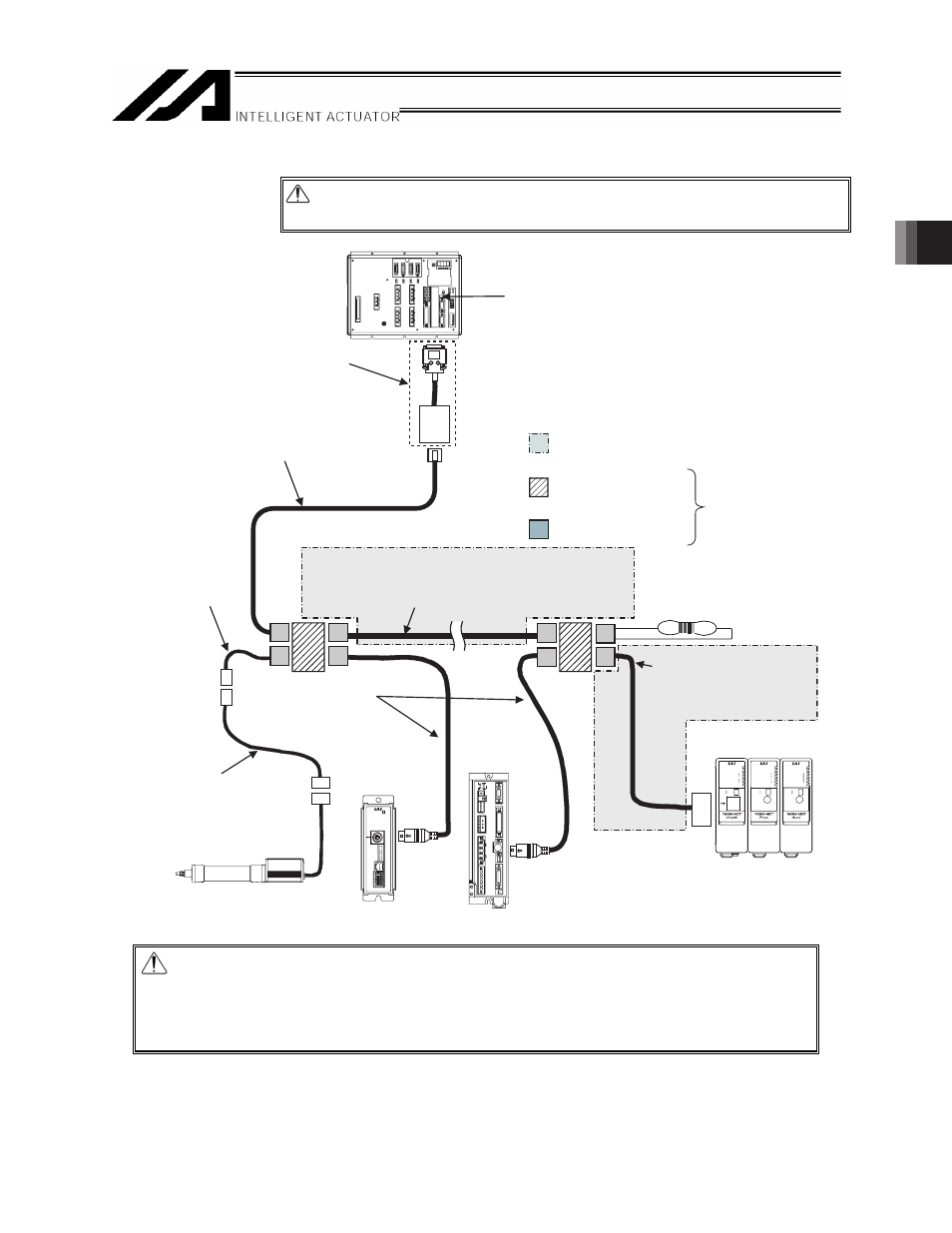

[2]-1 Wiring diagram (Example 2: When RS232 conversion unit is used for XSEL-P/Q/PX/QX)
Caution: Use a common 0V line for the 24V power supply for each controller.
(Except for SCON)
XSEL-P/Q/PX/QX
Set the +5V supply switch to the right position.
(there is an output)
ROBONET
SCON-C
PCON-SE
ACON-SE
ERC2-SE
Network
connection cable
CB-ERC2-CTL001
Power I/O Cable for SIO type
CB-ERC2-PWBIO-□□□
□□□ indicates the cable length.
Example: 050 = 5 m
Communication cable
CB-RCB-SIO-□□□
□□□ indicates the cable length.
Example: 050 = 5 m
RS232 conversion unit
RCB-CV-GW
Controller link cable
CB-RCB-CTL002
(Supplied with one each of
junction, e-CON connector
and 220Ω, 1/4W terminal resistor)
SV/ALM
SIO
PC
MOT
BK
MPO
24V
EMG-
MPC
RUN/ALM EMG T
C
1
0 ERROR
STATUS
MODE(AUTO)
MODE MANU
AUTO
SIO
RDY/ALM TX/RX
STATUS
3
2
1
0
BK(RLS)
BK RLS NOM
ADRS
RDY/ALM TX/RX
STATUS
3
2
1
0
BK(RLS)
BK RLS NOM
ADRS
(Female) Connect to general-purpose
RS232C port connector 2.
Peripherals to be provided by the customer.
(Purchase all other components from IAI.)
Junction
(5-1473574-4 by AMP)
e-CON connector
(1473562-4 by AMP)
You can also
replace these with
a terminal block.
Recommended cable 1
(HK-SB/20276×L (m) 2P×AWG22
by Taiyo Cabletec Corporation)
To be provided by the customer.
Terminal resistor R = 220Ω
(Not required if a
ROBONET is connected.)
Recommended cable 2
To be provided by the
customer according to the
connection diagram shown
in 3.2.1 [2]-2.
Caution: Ɣ Multiple ROBONET GatewayR_SIO units cannot be connected to a single
network.
Ɣ Since the ROBONET has a built-in terminal resistor, connect the ROBONET to
the junction farthest away from the X-SEL (at the end of the trunk line).
Do not connect a terminal resistor to the junction.
