Micro-PWC CONFIGURATION GUIDE
System Configuration 35
2.8.2.3 Find
Use the Find button to access an event bit by name. Click Find; a window will be displayed. Click the text
entry box labelled Enter Event Bit Name and enter the name of the desired event bit. Click OK. A list of 15
event bits, starting at the requested event bit, will be displayed in the Event Bit Configuration window.
2.8.2.4 Delete All
Use the Delete All button to delete all configured event bit names. Click this button; a confirmation box will
appear. Click Yes if all event bit names are to be deleted. Click No to exit without deleting the names.
2.8.3 Printer Assignment
A printer should be installed in the Windows operating system with the appropriate driver and settings
before assigning that printer to the Micro-PWC. Printers which are used for alarm printing or event logs
should have the printers processing data type TEXT selected from the WinPrint print processor. Note that
this print processing selection affects only the text printouts. It does not affect graphic printouts.
Printer Assignment is used to define the devices which will receive messages. These devices can be print-
ers or files.
Selecting Menu > Configure > Network Parameters > Printer Assignment causes the Printer Assignment
display (
Figure 2-17 ) to appear.
This display lists the currently configured devices, and allows the attributes of these devices to be added,
deleted, changed or sorted..
2.8.3.1 Adding a Device
To add a device to the list, click Add.
This action will cause a Device Characteristics display, similar to that shown in Figure 2-18 , to appear. The
information contained in the data fields will vary, depending on the actual configuration of the system. If no
data has been configured for the device, default information will be displayed on the pushbuttons.
TC00568A

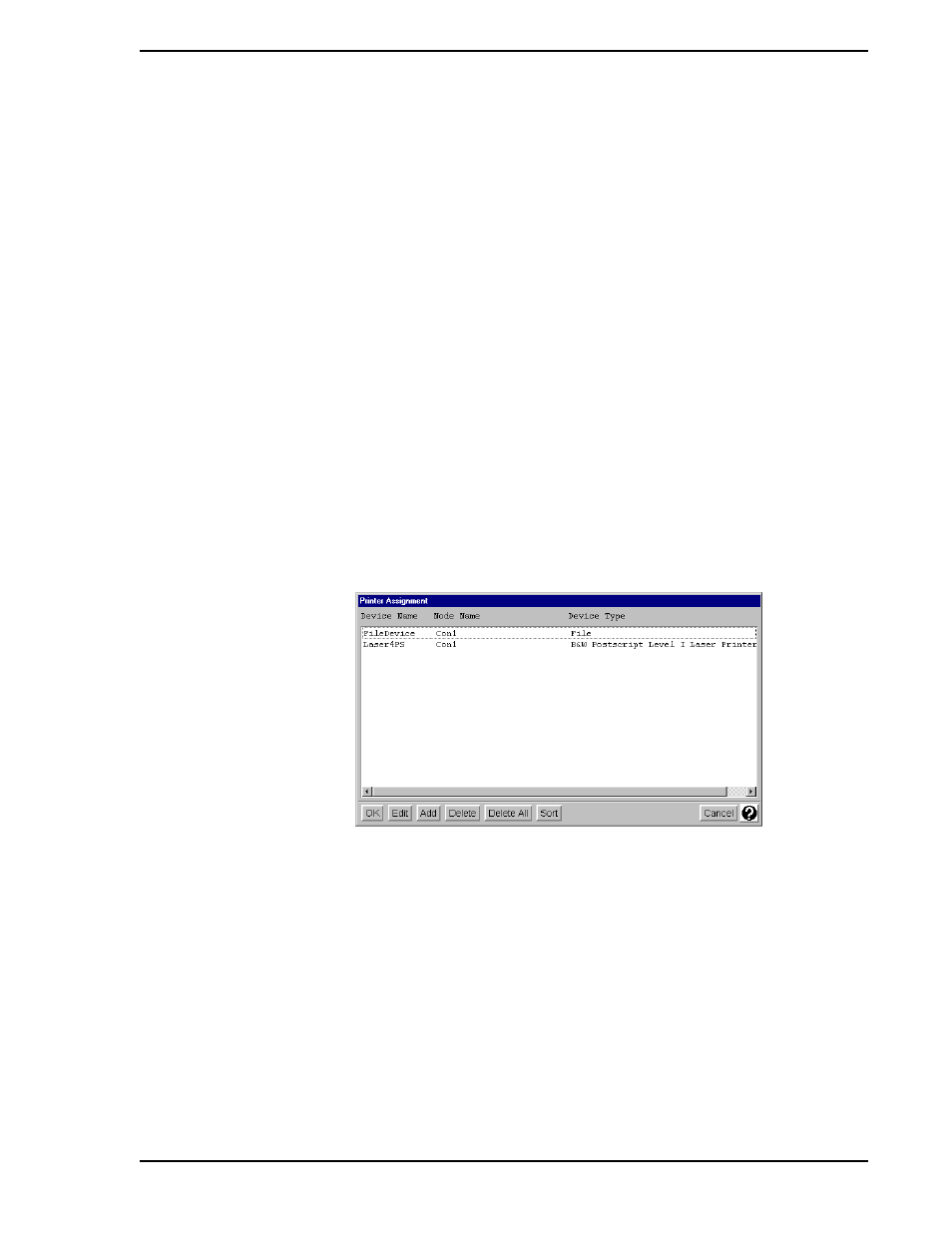

Figure 2-17. Printer Assignment Display
✎ Note Printers used to print scheduled logs must support PostScript.
