Micro-PWC CONFIGURATION GUIDE
180 Grafx Editor
4.4.3.11 FP_DYvslider
The submodel FP_DYvslider ( Figure 4-58 ) provides a vertical slider for control of controller database
points. The following example changes the setpoint of a Controller module.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pop-up menu. The following Submodel Configuration window will appear.
Variables
Figure 4-58. Vertical Slider Submodel (FP_DYvslider)

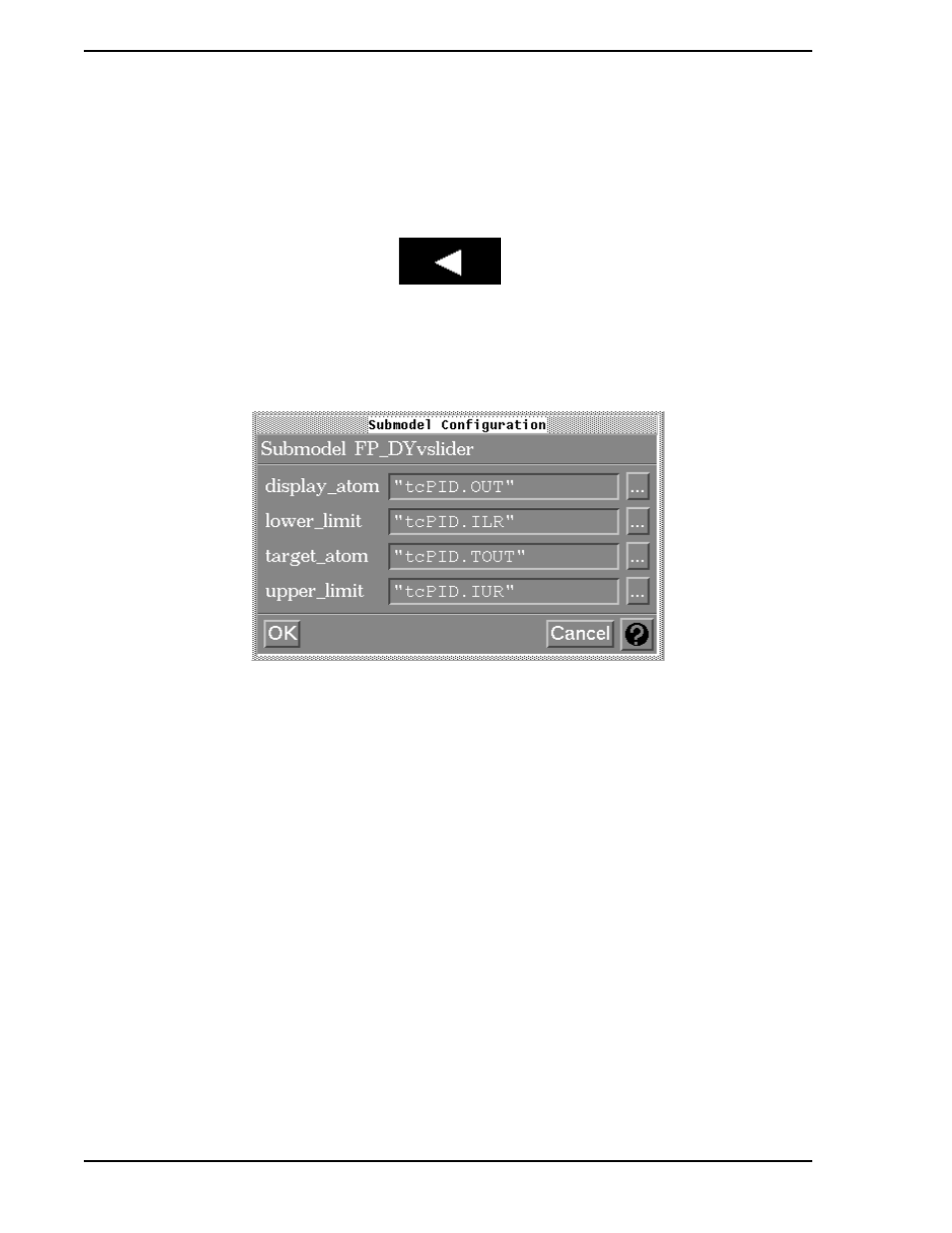

Figure 4-59. Vertical Slider Configuration Window
display_atom Enter the Tag.atom of the controller database point represented by the position of
the solid arrow (e.g., tcPID.CSP).
(User must define variable.)
lower_limit Enter the Tag.atom of the controller database point or the constant value that
represents the lower limit of the slider (e.g., tcPID.ilr).
Default: None
(User must define variable.)
target_atom Enter the Tag.atom of the controller database point to be written to when the
slider is released. The value is represented by the position of the hollow arrow
(e.g., tcPID.SP).
Default: None
(User must define variable.)
upper_limit Enter the Tag.atom of the controller database point or the constant value that
represents the upper limit of the slider. (e.g., tcPID.iur).
Default: None
(User must define variable.)
