Micro-PWC CONFIGURATION GUIDE
Utilities 291
The node name is the machine name of the node's computer, and appears on the icon for the node in the
System Status Display (e.g., PWC1, PWC10, and so on).
If you know the node name of the console node with which you want to synchronize the local configuration
item, but do not know which console group it is in, you can locate it quickly in the list by clicking the FIND
GROUP button. A pop-up window will appear, which prompts:
Enter Node Name
Enter the node name in the text entry box, then click OK. The entry for the group containing this node will
be selected. Note that this item is case-sensitive; you must enter the node name in the proper case. If the
wrong case is used, the node name will not be found, and an error pop-up will appear.
Click on the entry for the console group from which you want to obtain configuration data.
Once a console group has been selected, click the SYNC button on the Console Group Synchronization
window. If there are multiple nodes in the console group, the Console Node Selection window (
) will be displayed. (If there is only one node in the console group, this window is skipped and the Con-
sole Group Synchronization Selection window (
) will be displayed.)

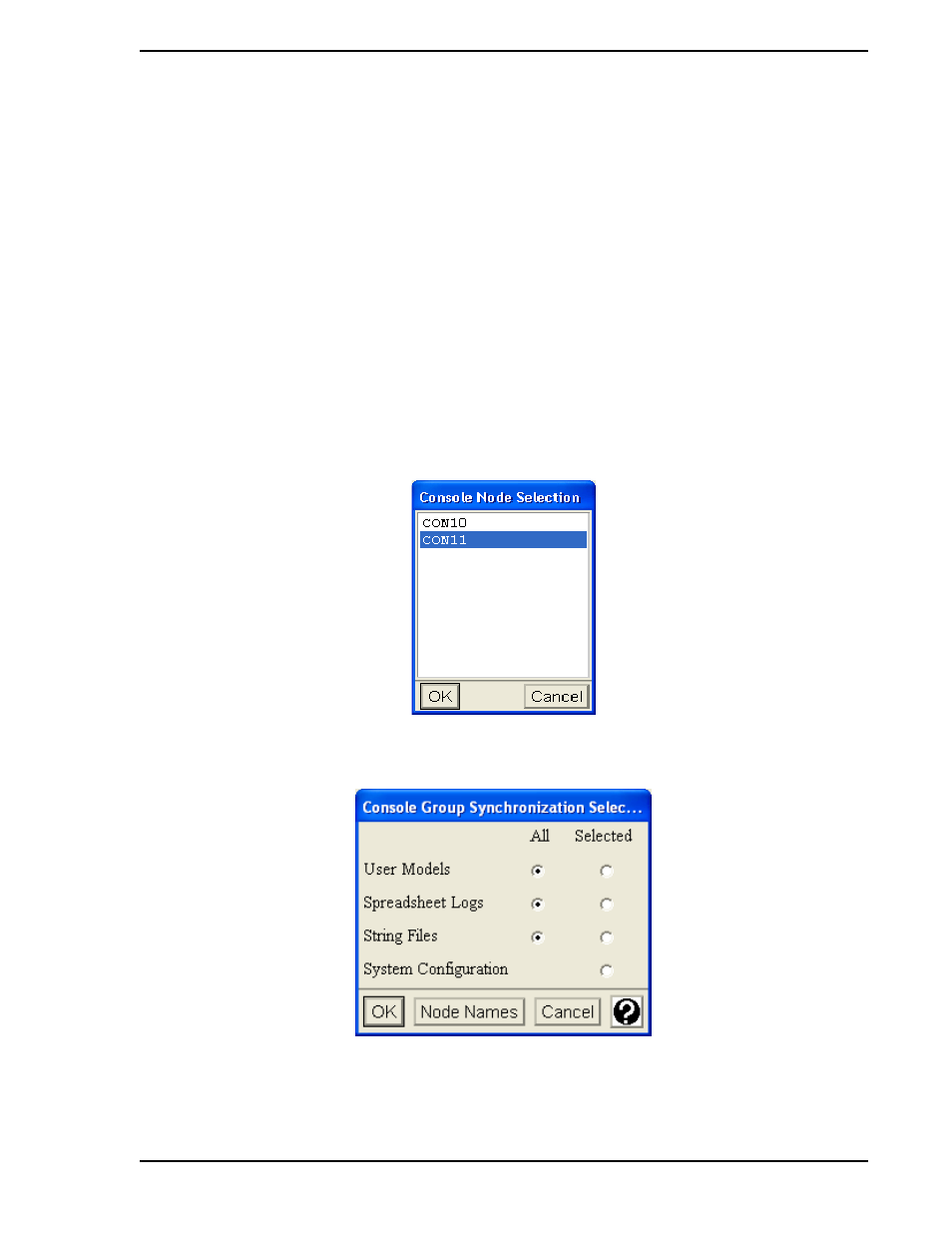

Figure 9-19. Console Node Selection Window
Figure 9-20. Console Group Synchronization Selection Window
