Micro-PWC CONFIGURATION GUIDE
Grafx Editor 195
4.4.6.2 FP_DYpointmod
The submodel FP_DYpointmod ( Figure 4-76 ) displays the point display of a controller database point. In
the Grafx editor, FP_DYpointmod appears simply as an unfilled rectangle which covers the extent of the
submodel. Once the graphic containing this submodel has been installed, a properly configured instance of
FP_DYpointmod appears as shown in
Figure 4-76 .
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pull-down menu. The following Submodel Configuration window will appear.
Variables

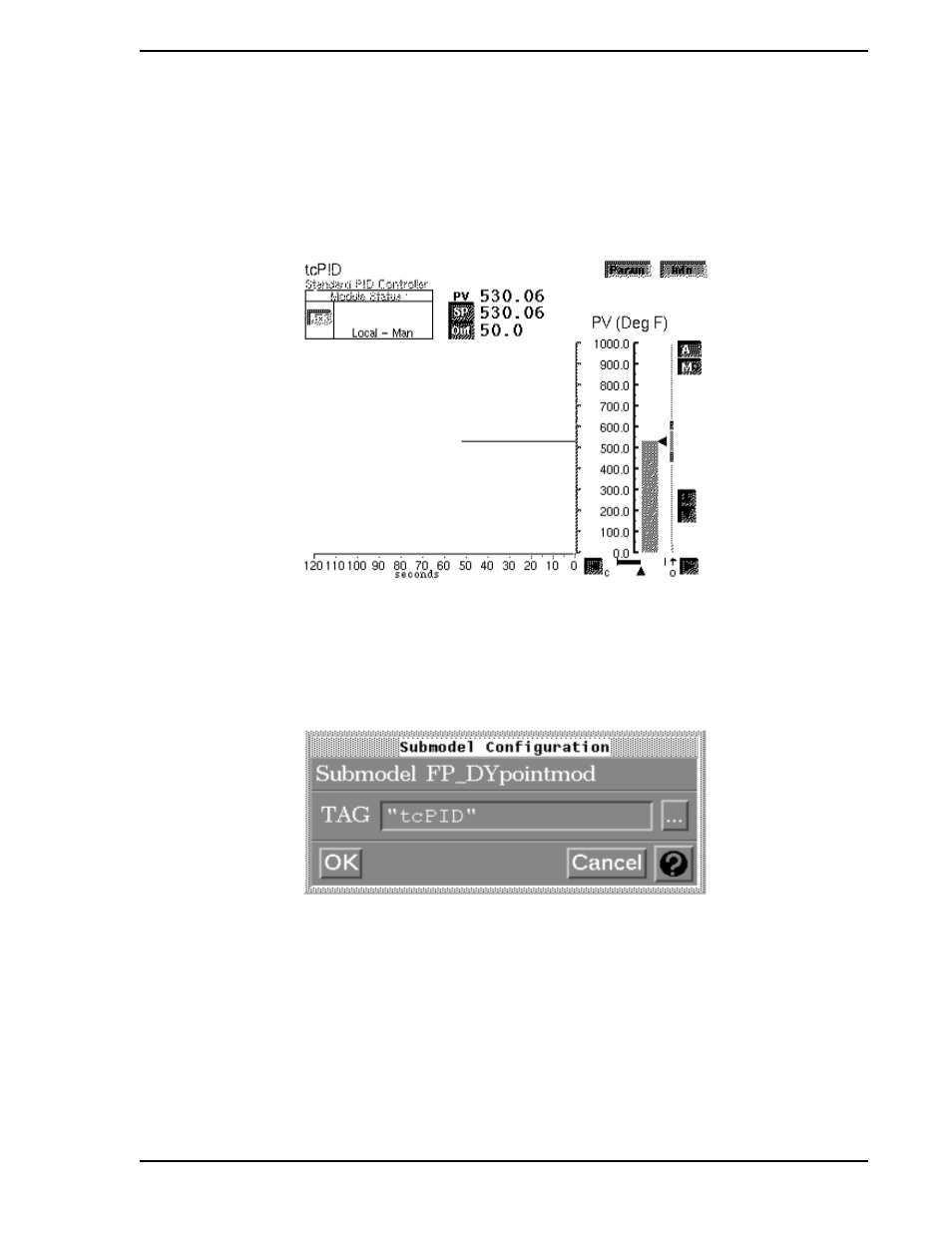

Figure 4-76. Point Display Submodel (FP_DYpointmod)
Figure 4-77. Point Display Submodel Configuration Window
tag Enter the Tagname of the controller database point that is to be displayed when
the button is clicked.
(User must define variable.)
