Micro-PWC CONFIGURATION GUIDE
Grafx Editor 187
4.4.5 Trends
4.4.5.1 FP_DYHoriztrend
The submodel FP_DYHoriztrend ( Figure 4-66 ) displays a current trend for a controller database point.
The trace is drawn from the right of the submodel. The data is scanned once every second and is not
stored historically. The data is plotted on the y-axis and the number of samples is plotted on the x-axis.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pull-down menu. The following Submodel Configuration window will appear.

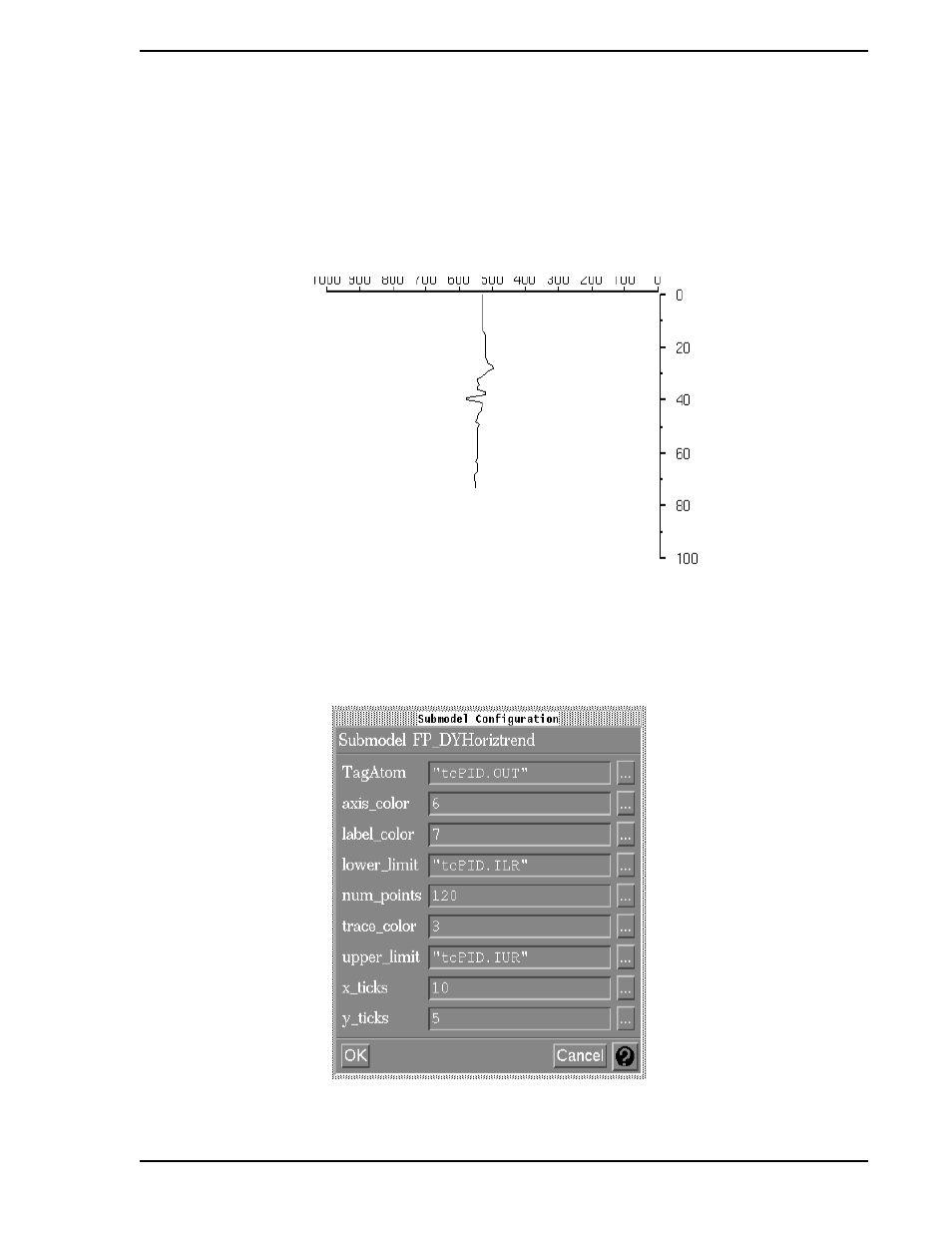

Figure 4-66. Horizontal Trend Submodel (FP_DYHoriztrend)
Figure 4-67. Horizontal Trend Submodel Configuration Window
