Micro-PWC CONFIGURATION GUIDE
Grafx Editor 179
4.4.3.10 FP_DYhslider
The submodel FP_DYhslider (
) provides a horizontal slider for control of controller database
points. The following example changes the output of a Controller module.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pop-up menu. The following Submodel Configuration window will appear.
Variables
Figure 4-56. Horizontal Slider Submodel (FP_DYhslider)

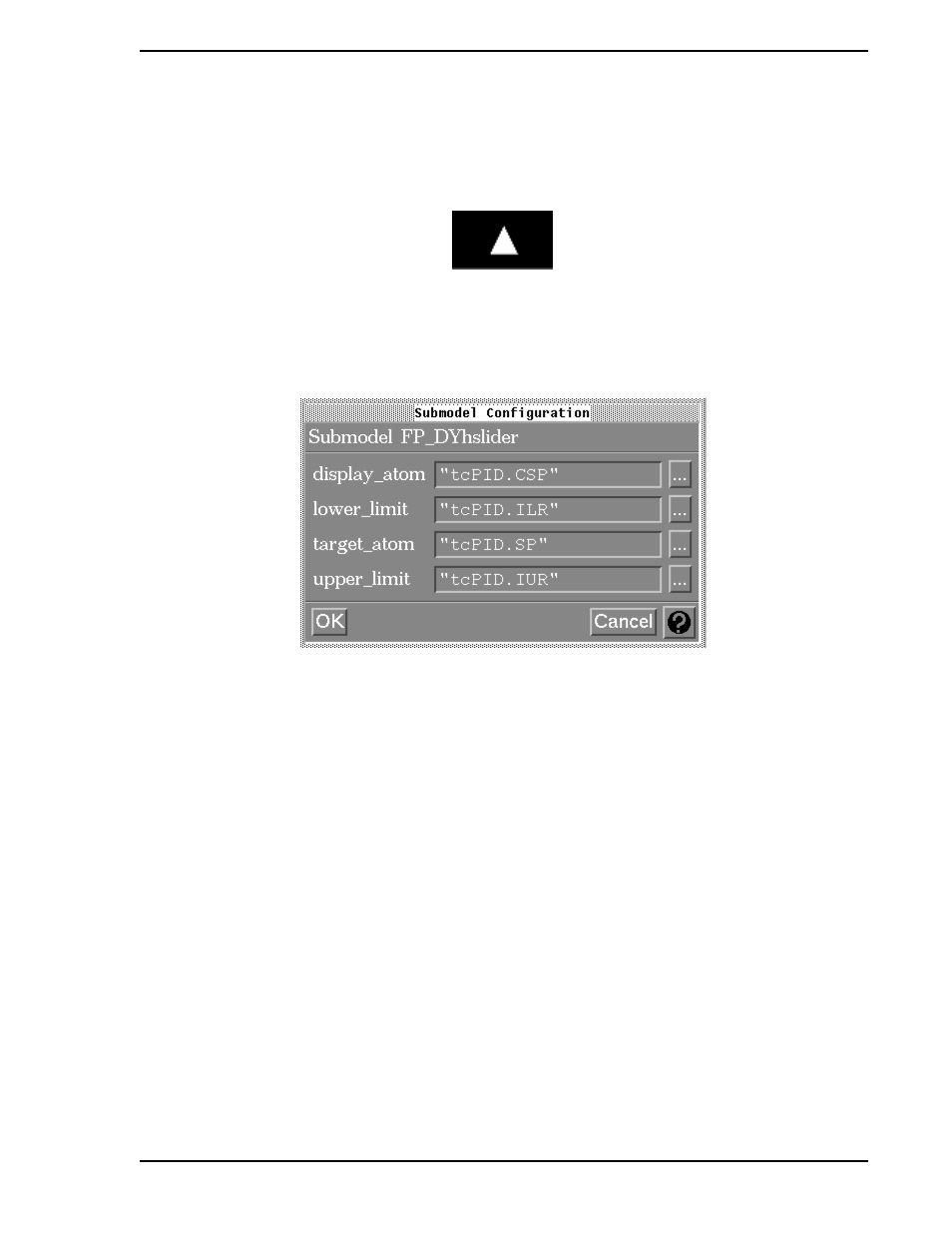

Figure 4-57. Horizontal Slider Submodel Configuration Window
display_atom
Enter the Tag.atom of the controller database point represented by the position of
the solid arrow (e.g., tcPID.OUT).
(User must define variable.)
lower_limit
Enter the Tag.atom of the controller database point or the constant value that
represents the lower limit of the slider (e.g., tcPID.ilr).
Default: None
(User must define variable.)
target_atom
Enter the Tag.atom of the controller database point to be changed when the slider
is released. The value is represented by the position of the hollow arrow (e.g.,
tcPID.TOUT).
Default: None
(User must define variable.)
upper_limit
Enter the Tag.atom of the controller database point or the constant value that
represents the upper limit of the slider (e.g., tcPID.iur).
Default: None
(User must define variable.)
