Micro-PWC CONFIGURATION GUIDE
System Configuration 29
2.8 Alarm Vectors
From the System Window, select Menu > Configure > Network Parameters > Alarm Vectors to view the
Alarm Vector Configuration window (
Figure 2-12 ). This window is used to assign specific displays to tag-
names. If this assignment has been configured, and the associated point goes into alarm, the user need
only click on the Vector button on the point’s alarm line (in either the Mini-Alarm Window or Alarm Review
window) to call up the assigned display.
The Alarm Vector Configuration window is divided vertically into two sections. In the left section, the scrol-
lable Tagname listbox contains a list of all tagnames which have been configured with Alarm Vectors.
The right section of the window is labelled Select Vector Display Type and contains a fixed list of display
types available for vectoring. These include:
• Graphic
• Summary
• Group
• Point
• Trend
• System Status
• Alarm Review
• Event Review
TC00158A

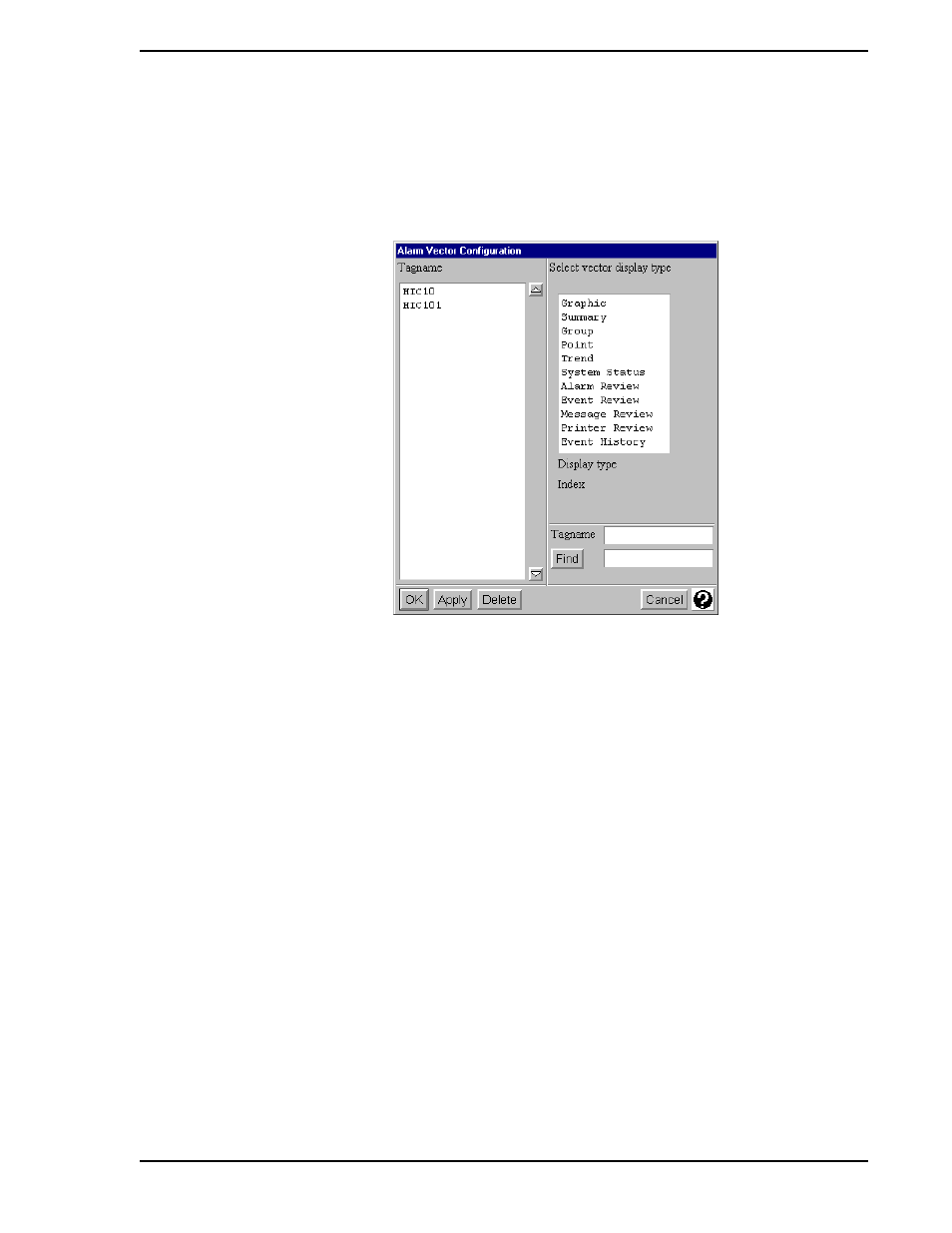

Figure 2-12. Alarm Vector Configuration Window
✎ Note If Alarm Vectoring is not configured for a tagname, clicking the
Vector button will cause the point display for that tag to be
displayed by default (no configuration is necessary).
