Micro-PWC CONFIGURATION GUIDE
Grafx Editor 155
4.4.2.5 FP_DYtank
The submodel FP_DYtank ( Figure 4-30 ) is a tank with a rounded bottom and top. The fill in both the
rounded bottom and the rectangular vessel body is based on the value of a dynamic process variable.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pop-up menu. The following Submodel Configuration window will appear.

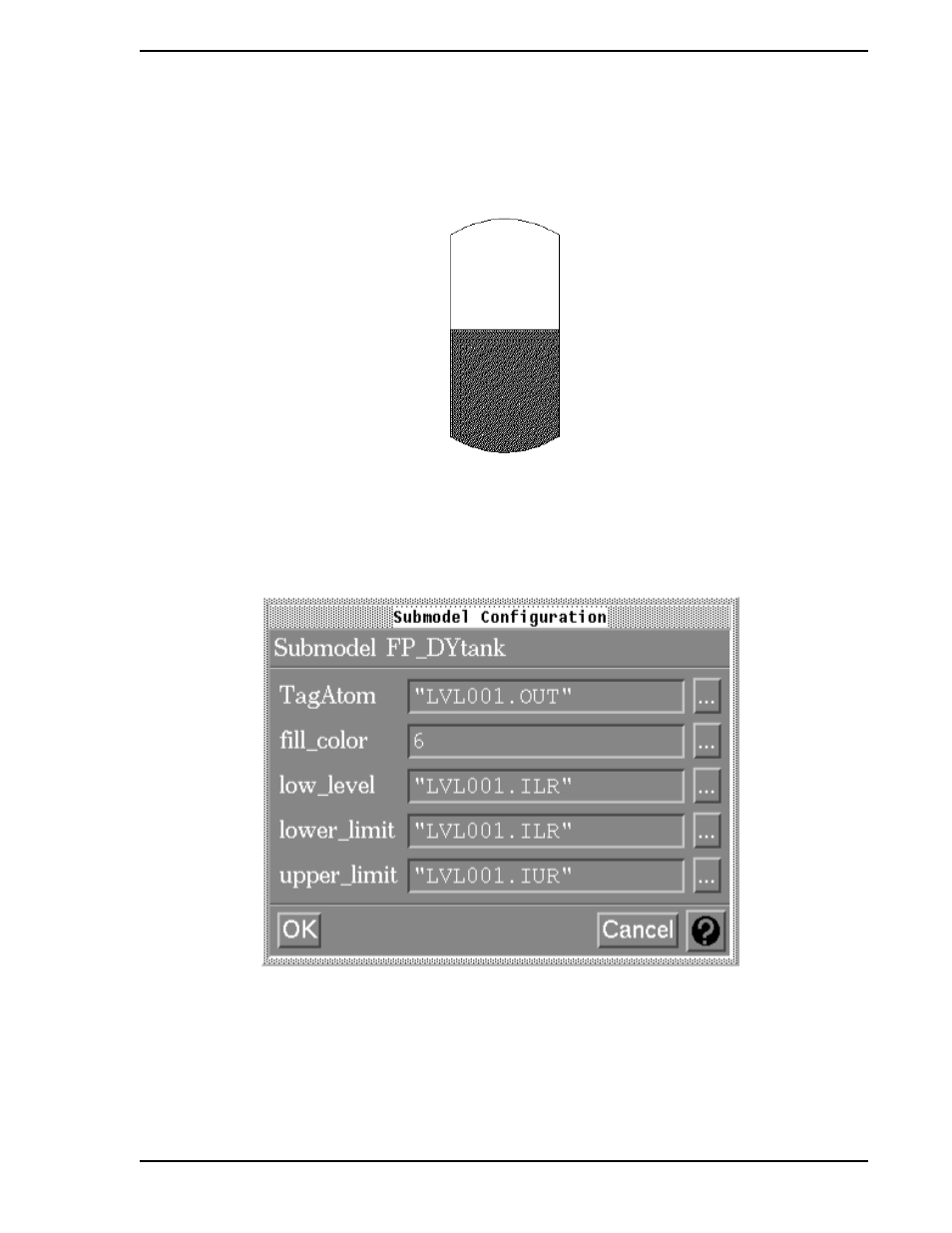

Figure 4-30. Dynamic Tank Submodel (FP_DYtank)
Figure 4-31. Dynamic Tank Submodel Configuration Window
