Micro-PWC CONFIGURATION GUIDE

Utilities 293

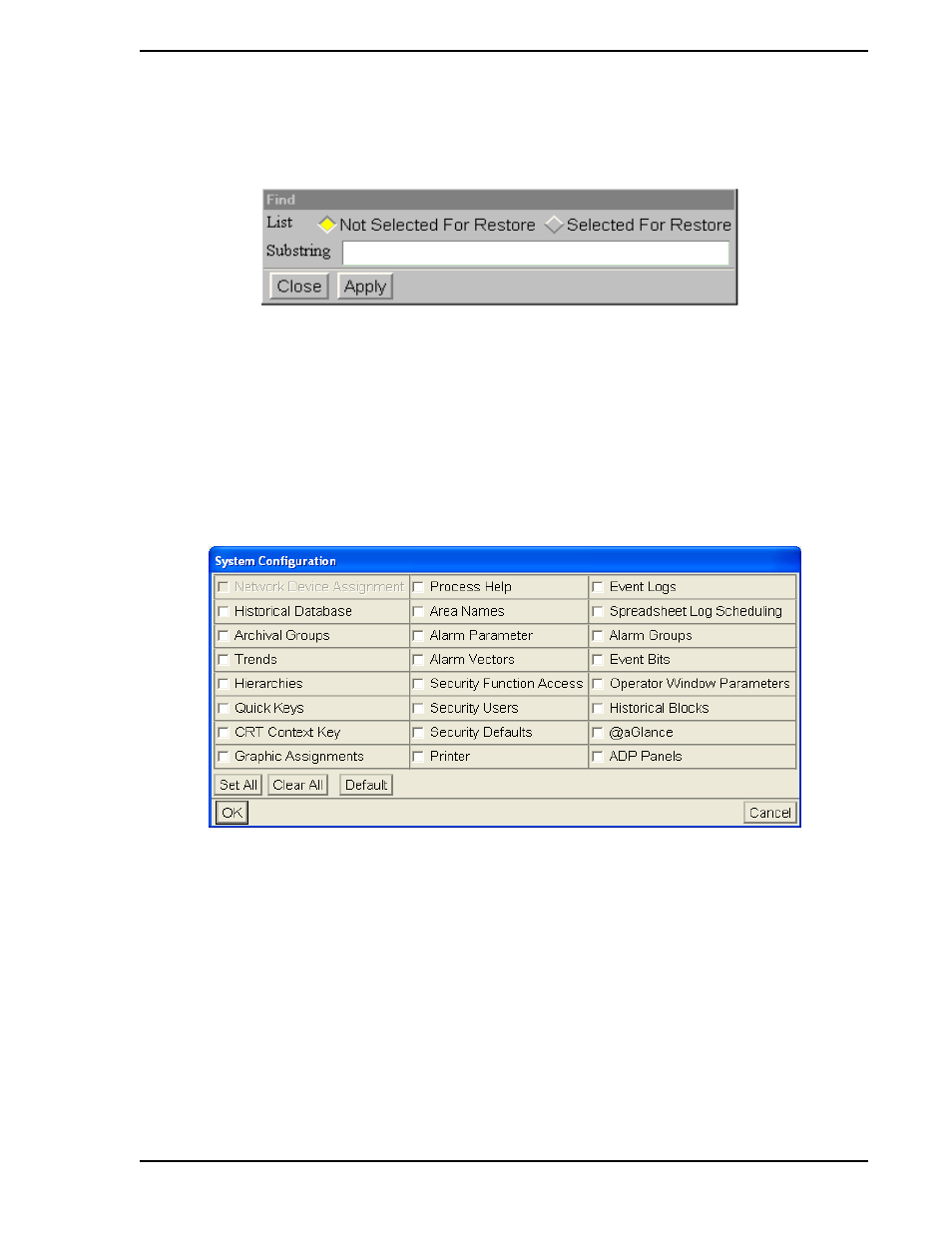

If only a portion of the pathname for a file is known, click on the Find button. A Find window (

Figure 9-22

)

will be displayed.

Select the list to be searched (Not Selected for Restore or Selected for Restore), and enter the known por-
tion of the pathname in the text entry box labelled Substring. Click on Apply; all items in the selected list
which contain that string will be highlighted. (Use the scrollbars to view the portions of the list which extend
beyond the viewing area of the selected list box; note that entries containing the known string are not nec-
essarily adjacent.)

When the Selected button for System Configuration Data is clicked on, the System Configuration Data
window (

Figure 9-23

) will be displayed.

This window allows selection of individual configuration Micro-PWC system configuration types for syn-
chronization. Click on the Set All button to quickly select all Micro-PWC configuration data for backup;
click Clear All to quickly deselect multiple items. When the Default button is clicked, the current selections
will be cleared, and the software will automatically select a pre-determined set of items to synchronize.
Items which are omitted from the default set are those with the potential for causing obvious problems
such as replacement of user login accounts, conflicting requests for the printout of scheduled logs, and so
on.

9.13.3.1 String File Considerations

String Files are the files which contain the text which appears in the windows and on button faces, etc., on
the Micro-PWC displays. These files are typically used by system integrators when converting Micro-PWC

Figure 9-22. Find Window

Figure 9-23. System Configuration Data Window
