Micro-PWC CONFIGURATION GUIDE
176 Grafx Editor
Variables

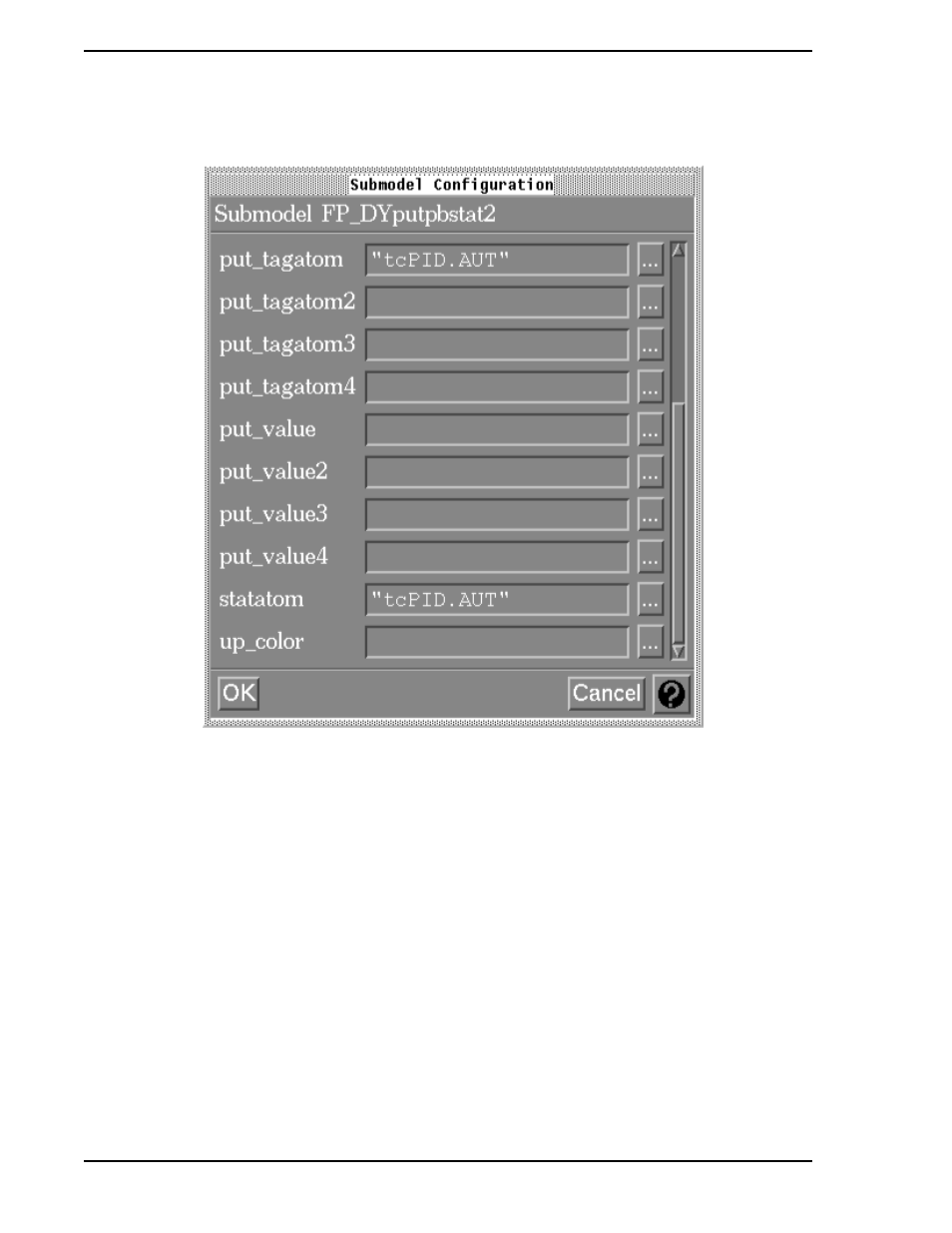

Figure 4-53. FP_DYputpbstat2 Submodel Configuration Window, Part 2
button_label
Enter the label to be displayed on the button (e.g., Auto).
Default: None
face_color
Enter the number of the desired face color of the button. (See any color
palette in the Settings or Properties windows for color numbers.)
Default: 26 (used for FP_DYctrlpb)
low_color
Enter the number of the desired lower edge color of the button.
Default: 29 (used for FP_DYctrlpb)
off_color
Enter the number of the desired color of the button label when the controller
database point configured in statatom is not equal to the value configured in
on_value.
Default: 0 (Black)
