Micro-PWC CONFIGURATION GUIDE
Grafx Editor 171
4.4.3.6 FP_DYput1pb
The submodel FP_DYput1pb ( Figure 4-46 ) is a pushbutton which, when pressed, writes a numeric value
or ASCII character into one controller database point. The following example shows an instance of
FP_DYput1pb configured to start the motor MCV-R01A01 (DCD module) when the button is "pressed"
(clicked on).
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pop-up menu. The Submodel Configuration window for the PUT1 Pushbutton
Submodel will appear will appear (
Figure 4-47 ).
Variables
✎ Note
FP_DYput1pb is basically a simpler version of FP_DYputpb, and
can be used in cases where one value is to be written to one
controller database point. (FP_DYputpb allows up to four values to
be written to as many as four controller database points.)

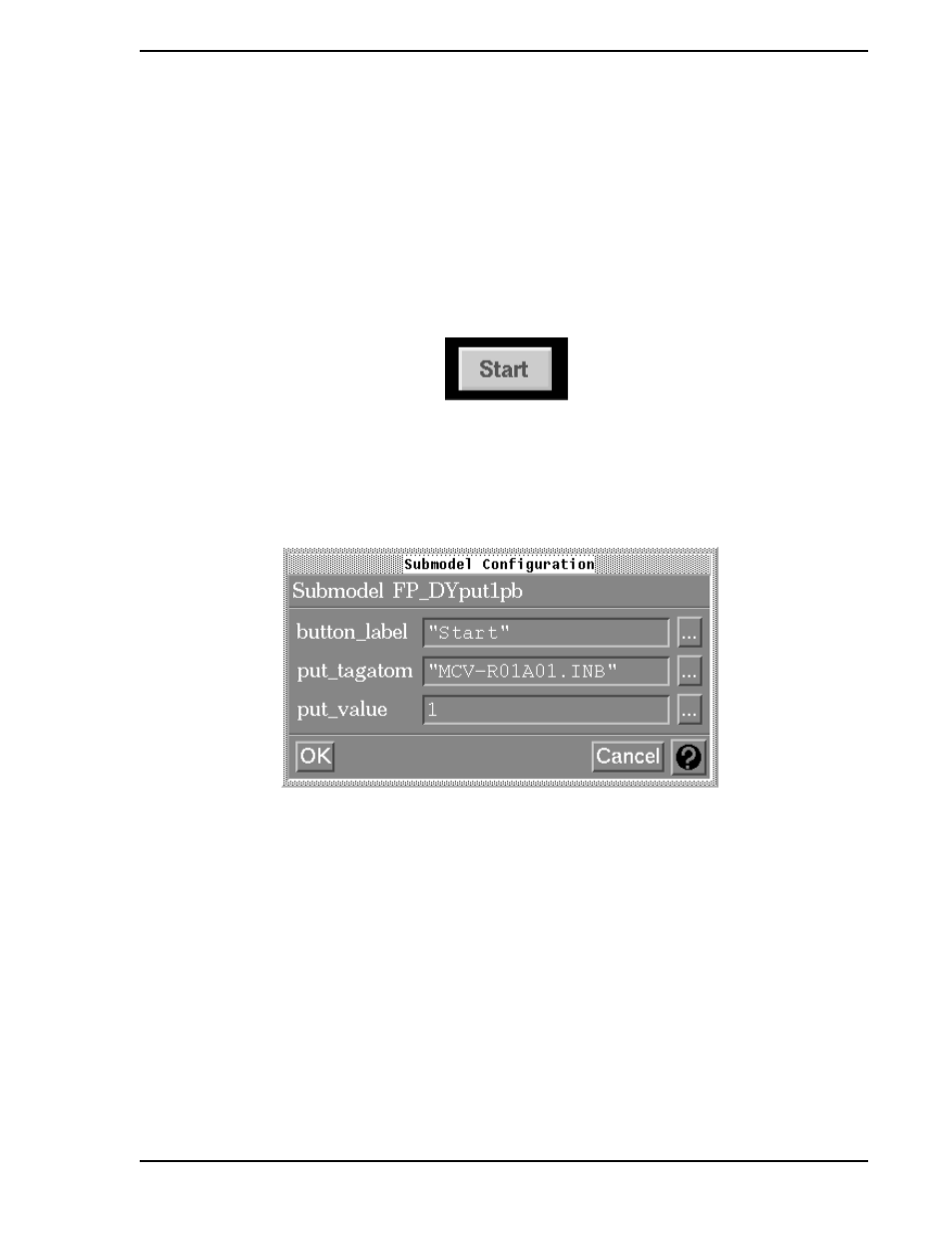

Figure 4-46. Put1 Pushbutton Submodel (FP_DYput1pb)
Figure 4-47. Put1 Pushbutton Configuration Window
button_label Enter the label to be displayed on the button (e.g., Start).
Default: None
put_tagatom Enter the Tag.atom of the controller database point to which the data
configured in put_value will be written (e.g., MCV-R01A01.INB).
Default: None
put_value Enter the value that will be written to the controller database point configured
in put_tagatom (e.g., 1).
Default: None
