Micro-PWC CONFIGURATION GUIDE
Grafx Editor 181
4.4.3.12 FP_DYtoggle
The submodel FP_DYtoggle ( Figure 4-60 ) is a pushbutton that, when pressed, toggles the value of a con-
troller database point between 1 and 0. The color and text of the button label changes based on the value
of a controller database point. The following example shows an instance of FP_DYtoggle configured to
toggle the state of a DCD module's INB bit when the button is clicked on.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pop-up menu. The Submodel Configuration window for the FP_DYtoggle
Pushbutton Submodel will appear.

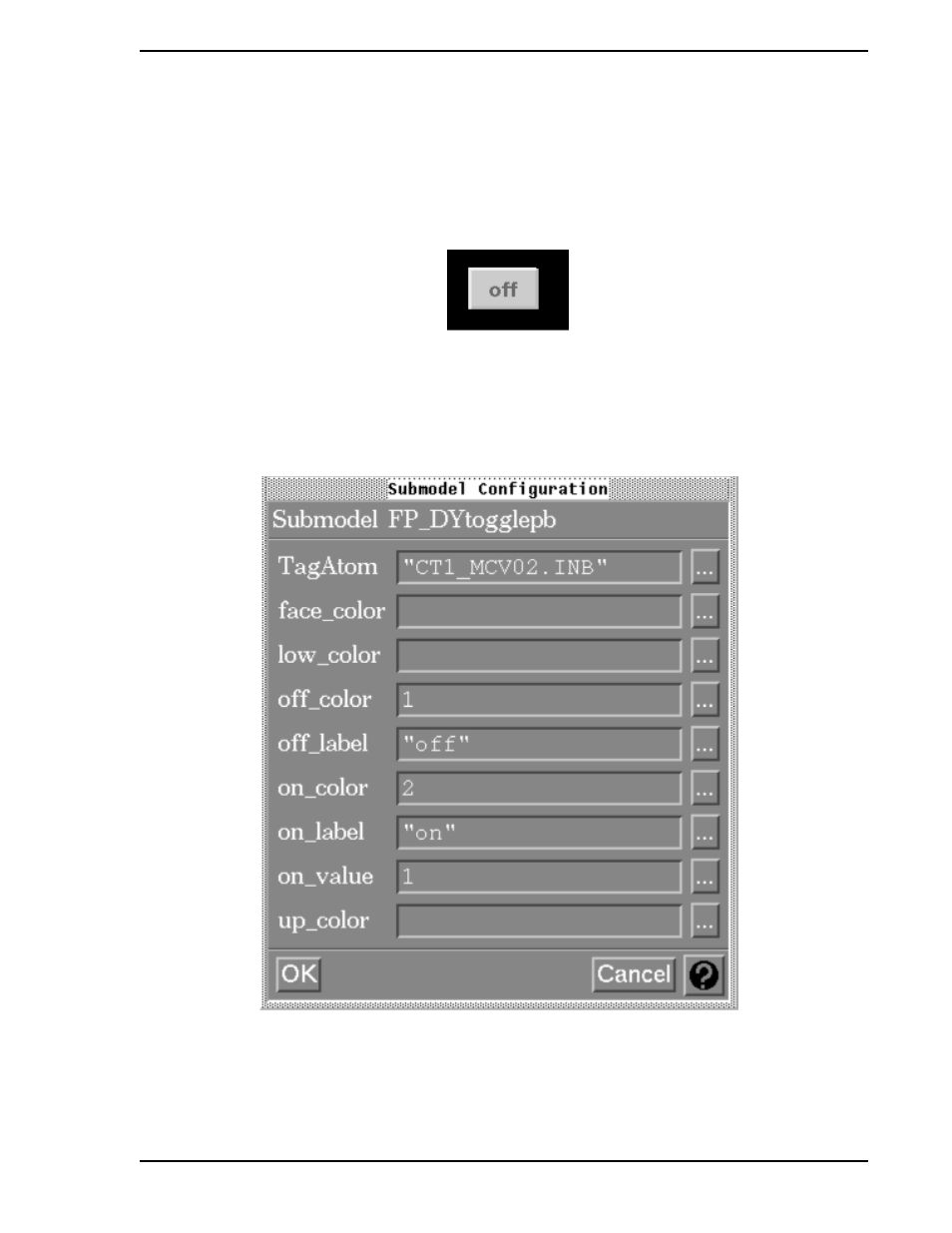

Figure 4-60. FP_DYtoggle Submodel
Figure 4-61. FP_DYtoggle Submodel Configuration Window
