Micro-PWC CONFIGURATION GUIDE

Grafx Editor 153

4.4.2.4 FP_DYVertbar

The submodel FP_DYVertbar (

Figure 4-28

) represents the value of a dynamic process variable in the form

of a vertical bargraph with a scale.

Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model
item on the resulting pop-up menu. The following Submodel Configuration window will appear.

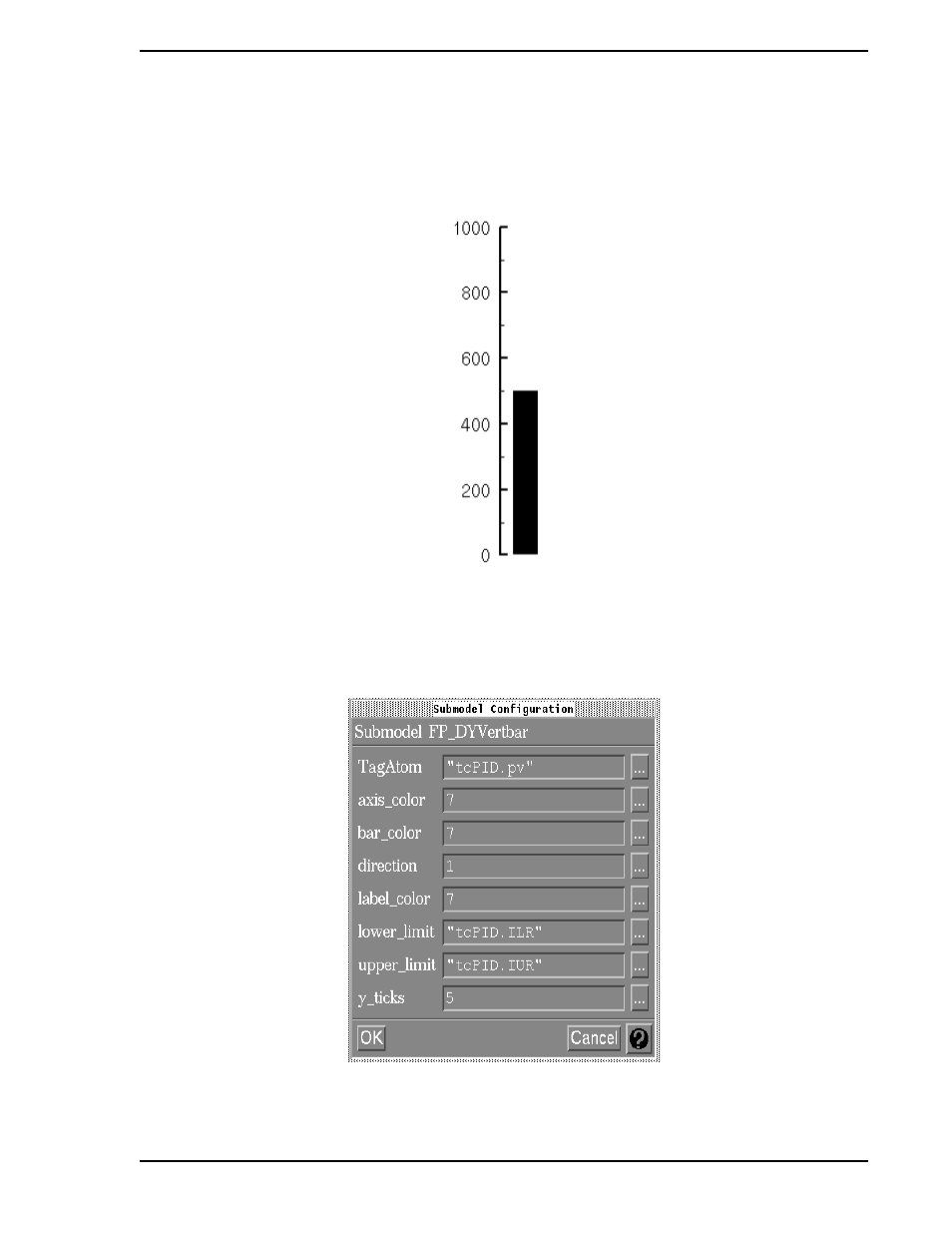

Figure 4-28. Dynamic Vertical Bar (FP_DYVertbar)

Figure 4-29. Dynamic Vertical Bar Configuration Window
