Micro-PWC CONFIGURATION GUIDE
290 Utilities
9.13.2 Selecting a Console Node With Which to Synchronize
To synchronize a configuration type or item on your local system with that in another console group, from
the System Window, select Menu > Utilities > Console Group Sync. The Console Group Sychronization
window (
) will be displayed.
The Console Group Synchronization window provides the number of the local group, plus a list box listing
the other available console groups. For each console group, the Node Name of each console type node in
the group is shown.

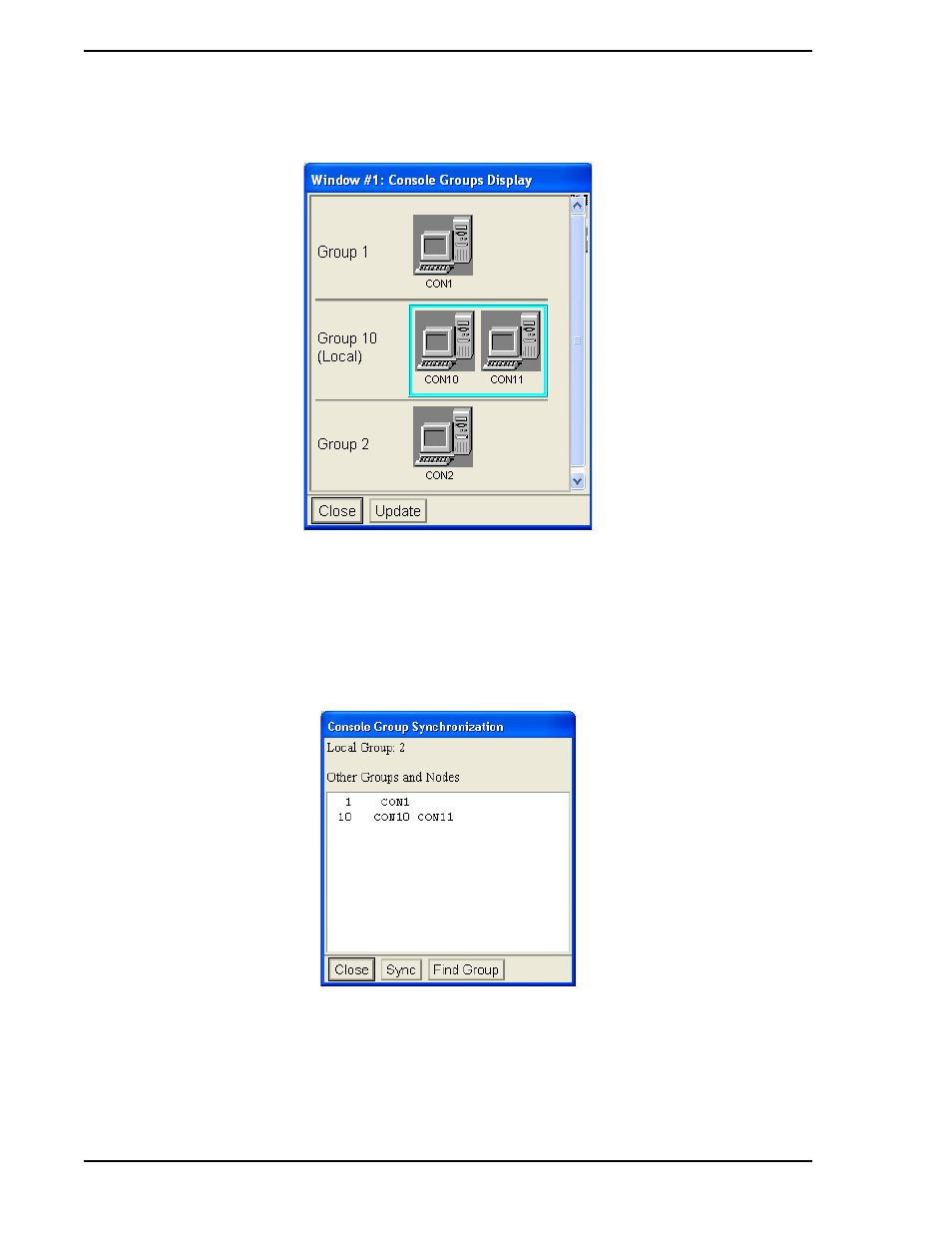

Figure 9-17. Console Groups Display Window
Figure 9-18. Console Group Synchronization Window
