Micro-PWC CONFIGURATION GUIDE
90 Grafx Editor
4.2.4.7 Creating Splines
Splines are created using the Spline button
. The Grafx editor uses the points picked to make the
smoothest appearing curved Line (the Spline) which passes through these points. Points are connected by
a Polyline as they are selected. When the procedure is ended (by clicking on the Select Objects button,
another object button, or clicking the right mouse button), the Polyline is redrawn as a Spline.
EXAMPLE:
1.
Click the Spline button.
2.

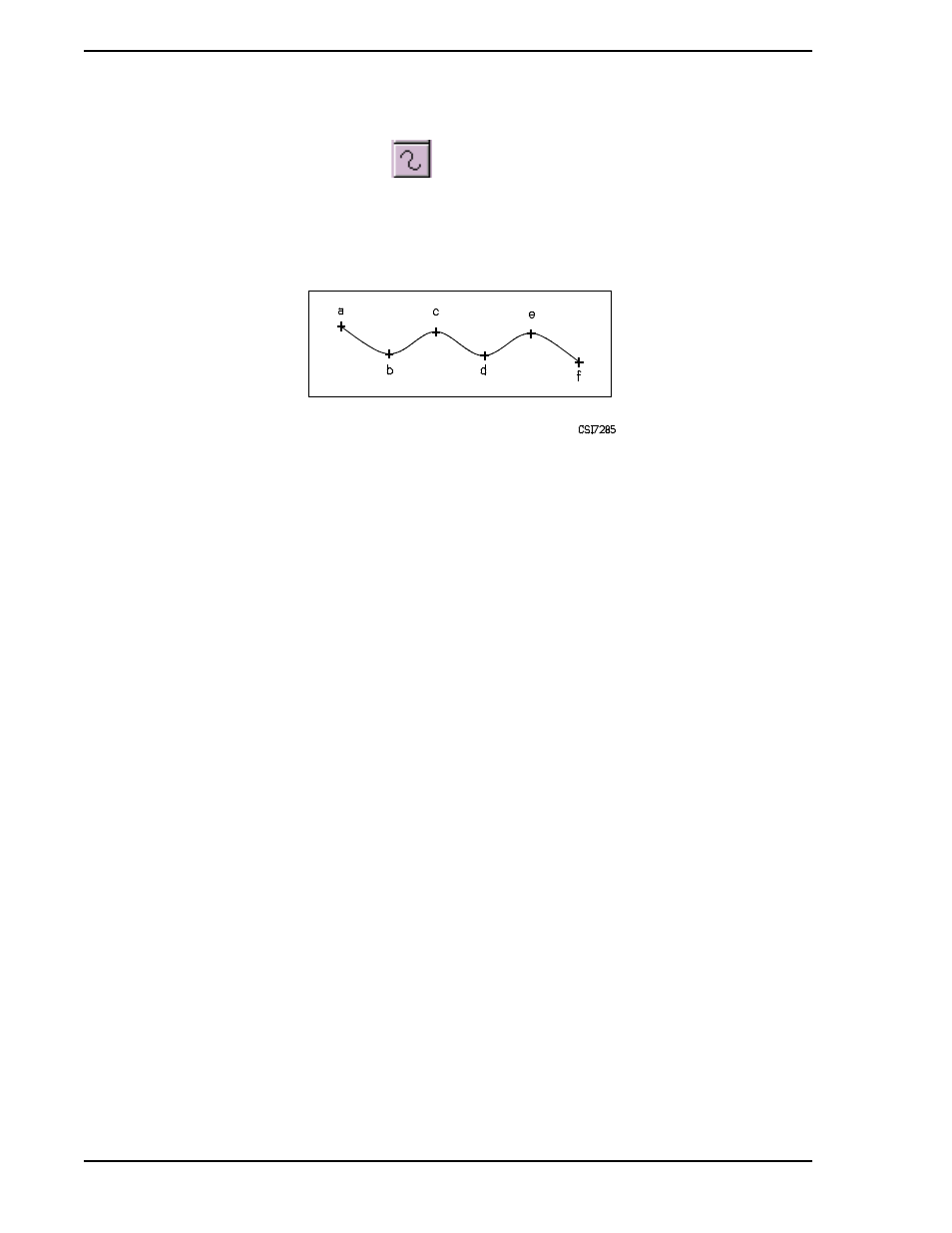

Click on the first point (a), then click on the second point (b), third point (c), and so on.
3.
Terminate the procedure by choosing the Select Objects button, a different toolbar button, or
by clicking the right mouse button. The polyline connecting the chosen points is replaced by a
spline.
