Micro-PWC CONFIGURATION GUIDE
Grafx Editor 161
4.4.3.2 FP_DYmpoppb
The submodel FP_DYmpoppb (
) is a pushbutton which, when pressed, displays a model, cho-
sen by the user, in a pop-up window.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pop-up menu. The following Submodel Configuration window will appear.

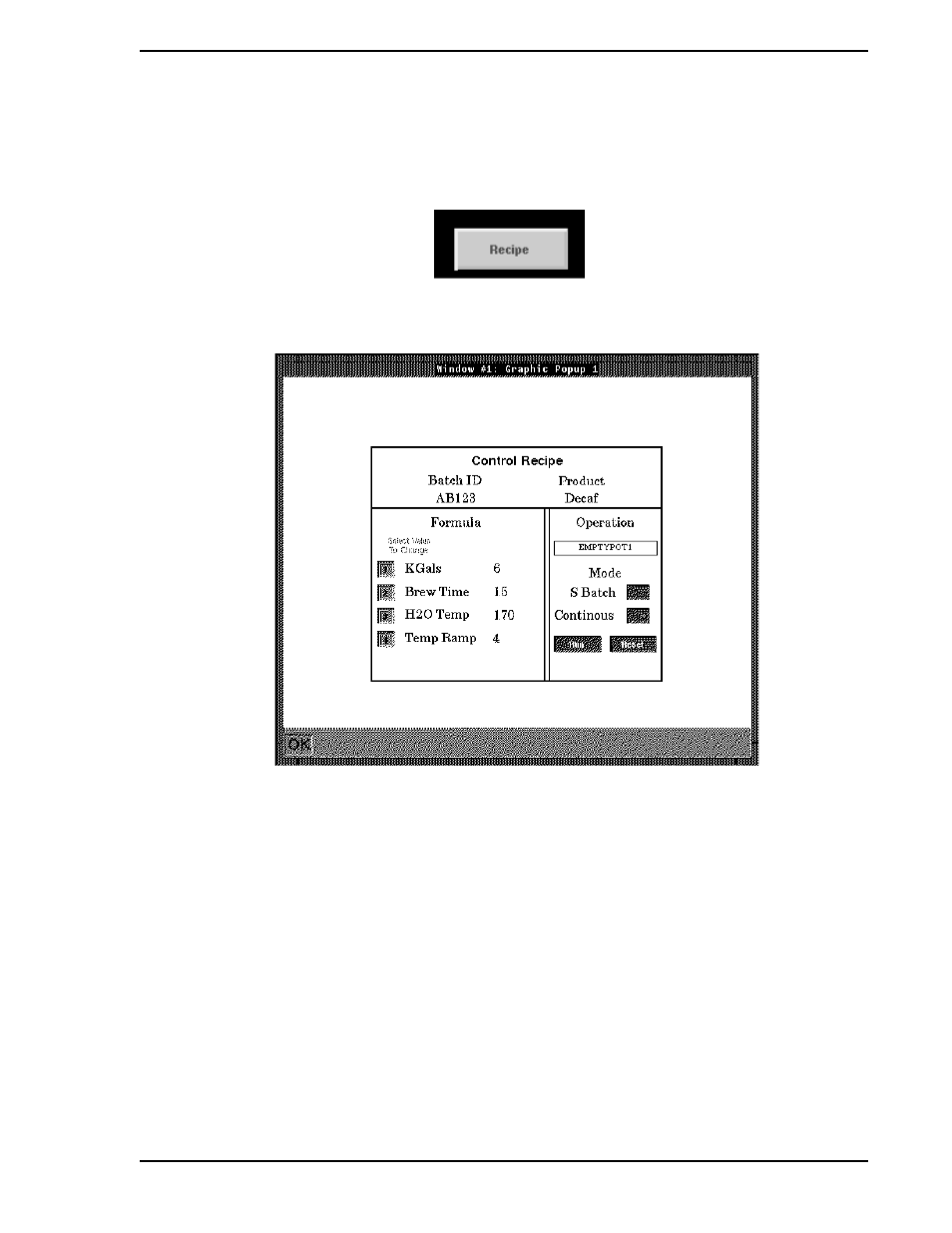

Figure 4-36. Model Pop-up Pushbutton (FP_DYmpoppb)
Figure 4-37. Resulting Pop-up Model
