Micro-PWC CONFIGURATION GUIDE
168 Grafx Editor
4.4.3.5 FP_DYputpb
The submodel FP_DYputpb ( Figure 4-43 ) is a pushbutton which, when pressed, writes numeric values
and/or ASCII text into up to 4 controller database points. The following example shows an instance of
FP_DYputpb configured to start the motor MCV-R01A01 (DCD module) when the button is "pressed"
(clicked on).
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pop-up menu. The Submodel Configuration window for the PUT Pushbutton
Submodel will appear will appear. Notice that this window (
Figure 4-44 ) is scrollable and contains more
variables than those which appear in the display area. Use the scrollbar to access the additional variables
(
Figure 4-45 ).

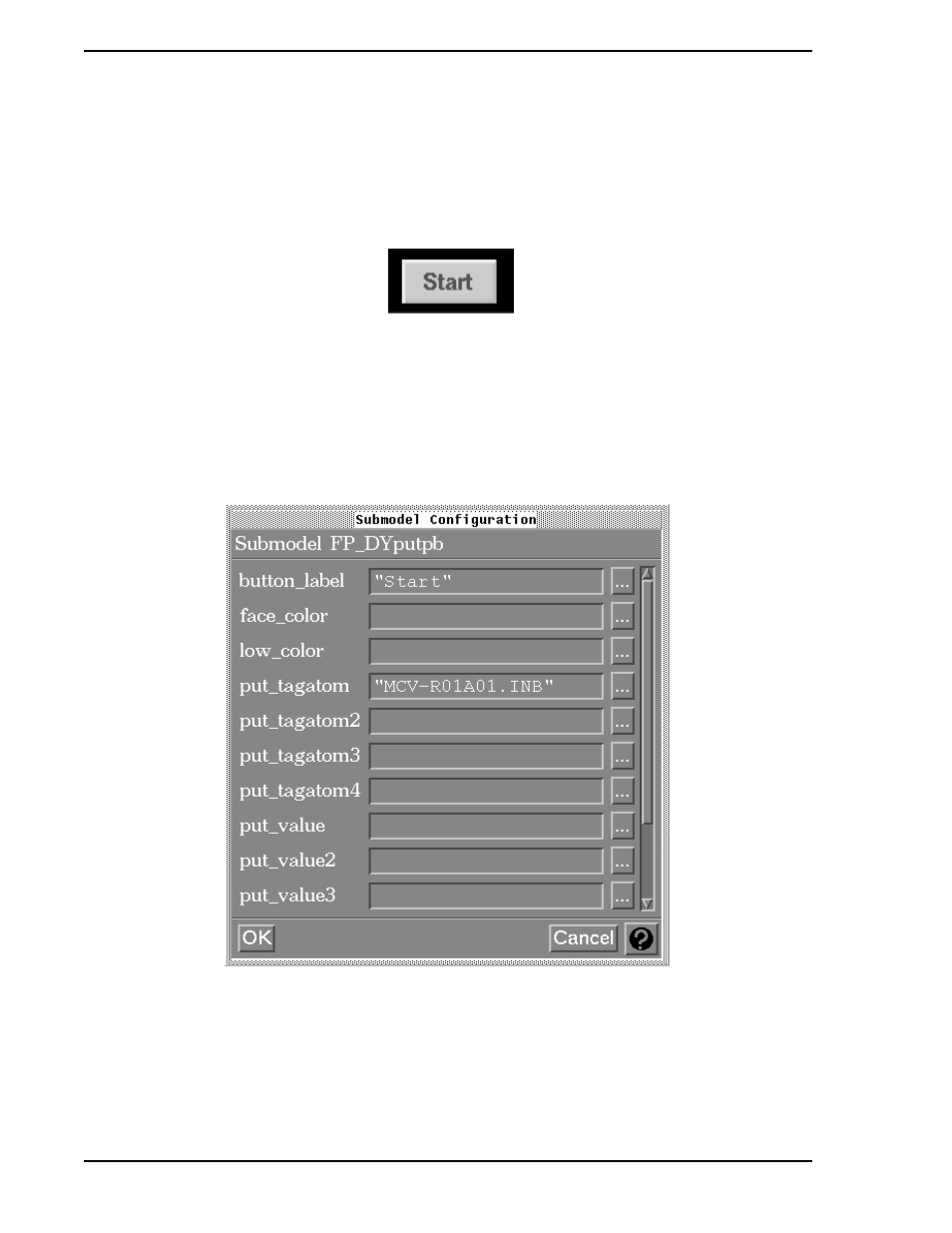

Figure 4-43. Put Pushbutton Submodel (FP_DYputpb)
Figure 4-44. Put Pushbutton Configuration Window, Part 1
