Micro-PWC CONFIGURATION GUIDE
Grafx Editor 93

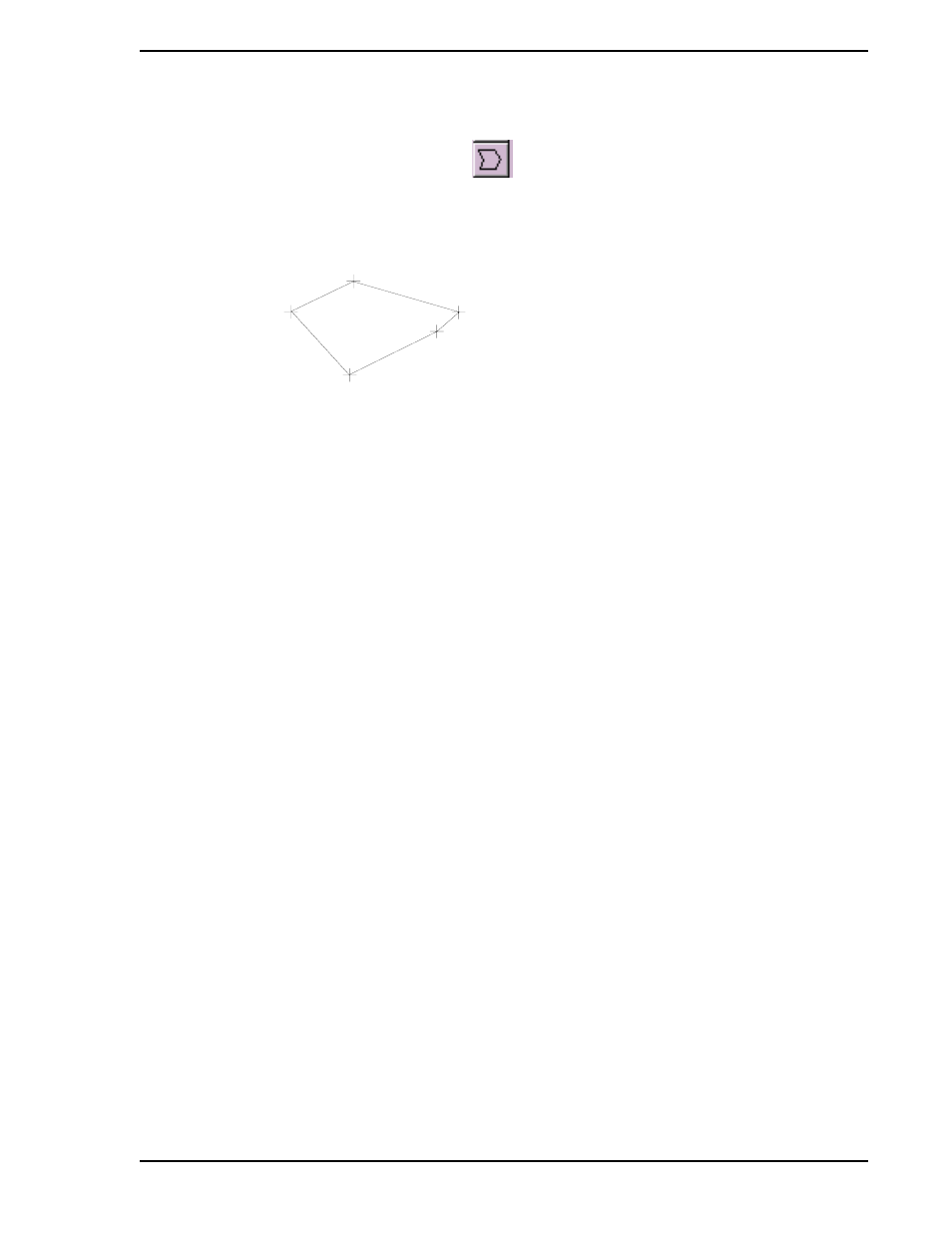

4.2.4.10 Creating Polygons
Polygons are created using the Polygon button . Polygons are many-edged objects which can be
added to a model. Polygons can appear as triangles, trapezoids, or any shape composed of straight
edges. The Grafx editor automatically connects the first point chosen with the last point.
EXAMPLE:
1. Click the Polygon button.
2. Click on the first point (a).
3. Click on the second point (b).
4. Click on the third point (c), and so on.
5. Terminate the procedure by choosing the Select Objects button, a different toolbar button, or
by clicking the right mouse button. The first and last points are automatically connected, and
the polyline connecting the chosen points is replaced by a polygon.
TP81044A
A
B
C
D
E
