Micro-PWC CONFIGURATION GUIDE
Grafx Editor 185
4.4.4.2 FP_DYtagpb
The submodel FP_DYtagpb (
) is a pushbutton containing the tagname of a controller database
point which, when pressed, changes the display in the Operator Window to the point display for the tag-
name.
Position the pointer on the submodel and click the right mouse button, then click on the Configure
Submodel item on the resulting pop-up menu. The following Submodel Configuration window will appear.

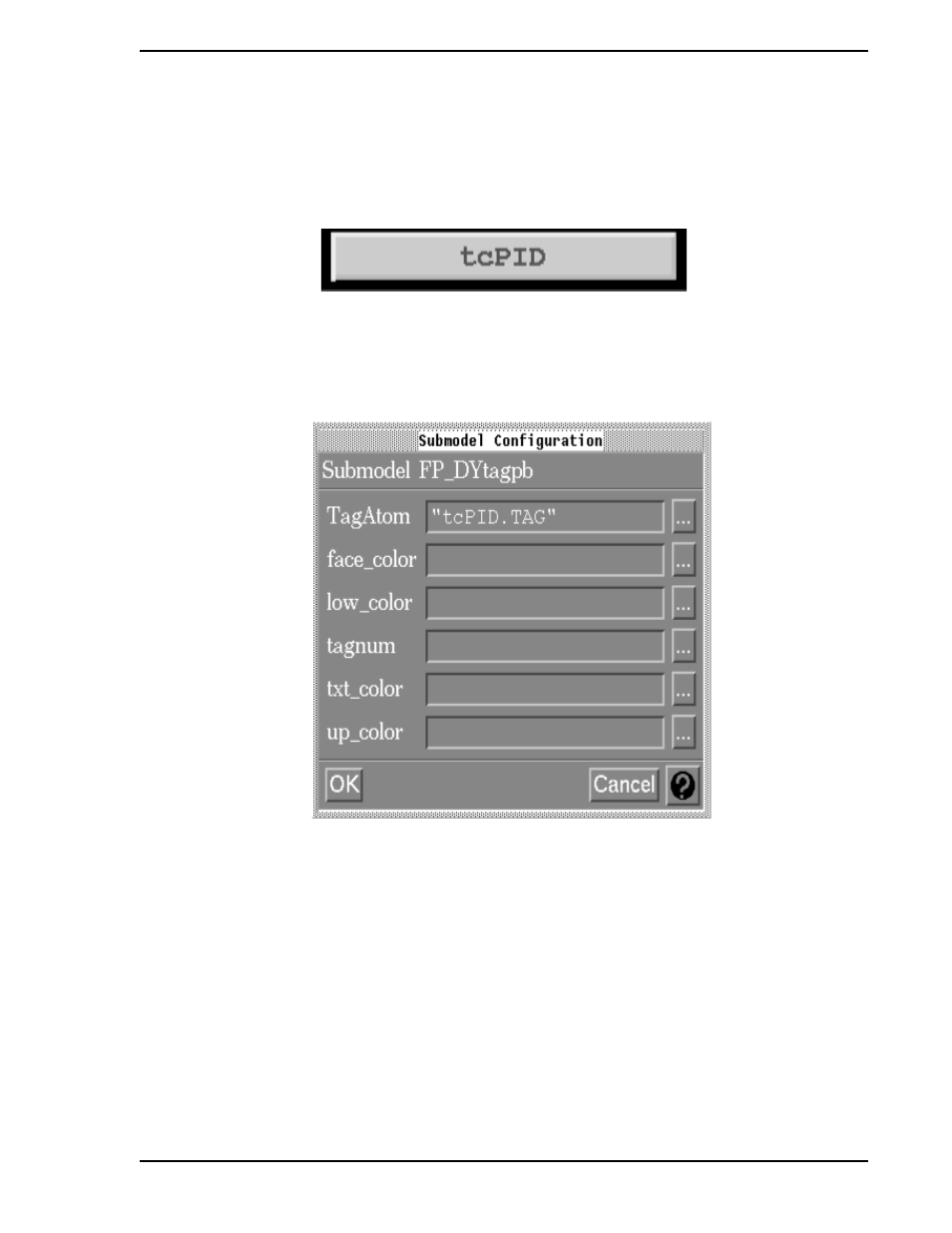

Figure 4-64. Tagname Pushbutton (FP_DYtagpb)
Figure 4-65. Tagname Pushbutton Configuration Window
