4.4.7.2 FP_DYmeter
The submodel FP_DYmeter ( Figure 4-80 ) displays an analog meter representation of the value of a con-
troller database point.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pull-down menu. The following Submodel Configuration window will appear.

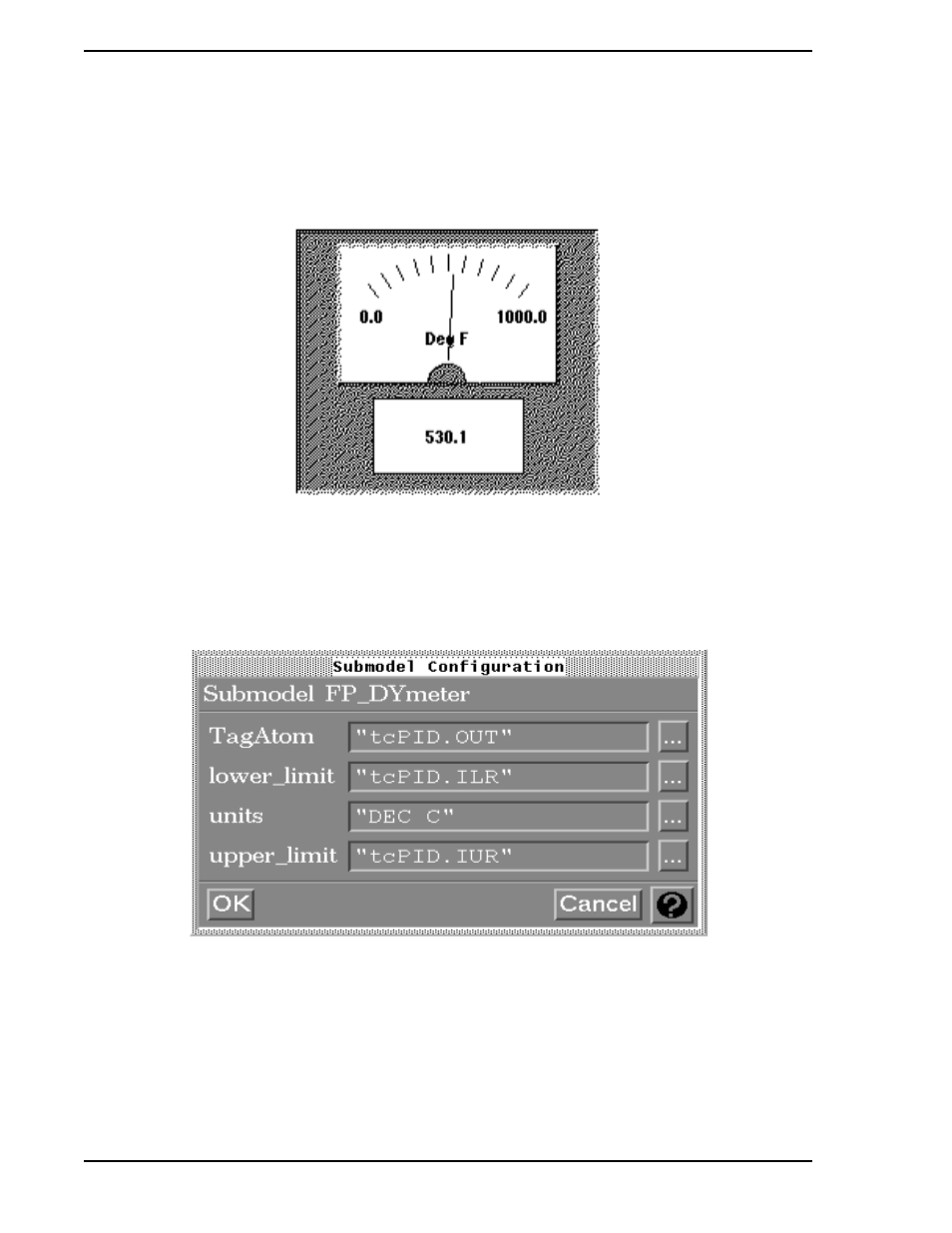

Figure 4-80. Meter Submodel (FP_DYmeter)
Figure 4-81. Meter Submodel Configuration Window
