4.4.5.3 FP_DYtrendpb
The submodel FP_DYtrendpb ( Figure 4-70 ) is a pushbutton which, when clicked on, displays (in a pop-up
window) the Historical Trend with which it has been configured.
Position the pointer on the submodel and click the right mouse button, then click on the Configure
Submodel item on the resulting pull-down menu. The following Submodel Configuration window will
appear.
Variables

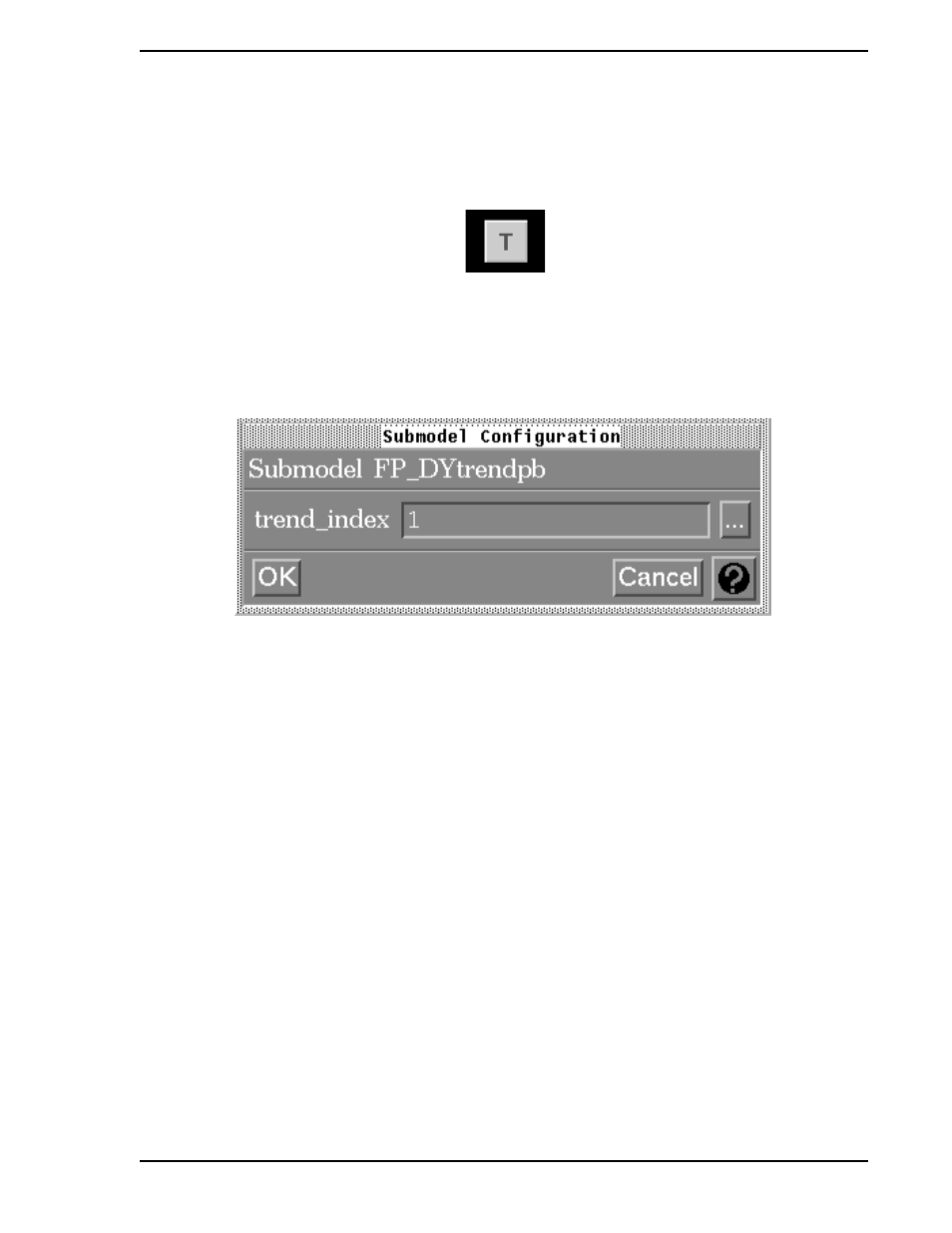

Figure 4-70. Historical Trend Pushbutton (FP_DYtrendpb)
Figure 4-71. Historical Trend Pushbutton Configuration Window
trend_index Enter the index number of the Historical Trend to be displayed when the button is
clicked.
(User must define variable.)
