Micro-PWC CONFIGURATION GUIDE
Grafx Editor 147
4.4.2 Bargraphs
4.4.2.1 FP_DYbargraph
The Submodel FP_DYbargraph ( Figure 4-22 ) represents the value of a dynamic process variable in the
form of a rectangular bar.
Position the pointer on the submodel and click the right mouse button, then click on Configure Submodel in
the resulting pop-up menu. The following Submodel Configuration window will appear.

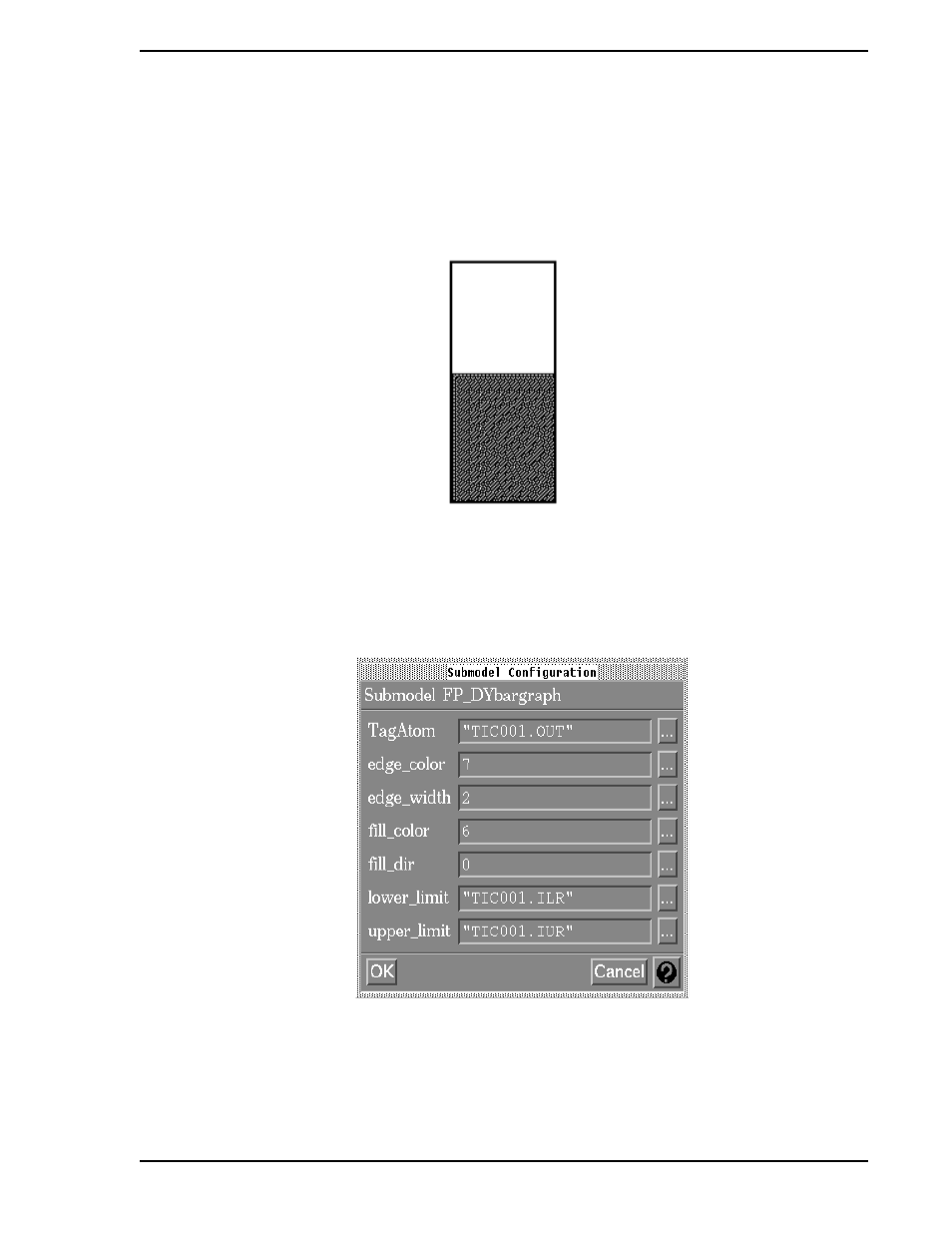

Figure 4-22. Dynamic Bargraph (FP_DYbargraph)
Figure 4-23. Dynamic Bargraph Configuration Window
