Micro-PWC CONFIGURATION GUIDE
86 Grafx Editor
4.2.4.3 Creating Rectangles

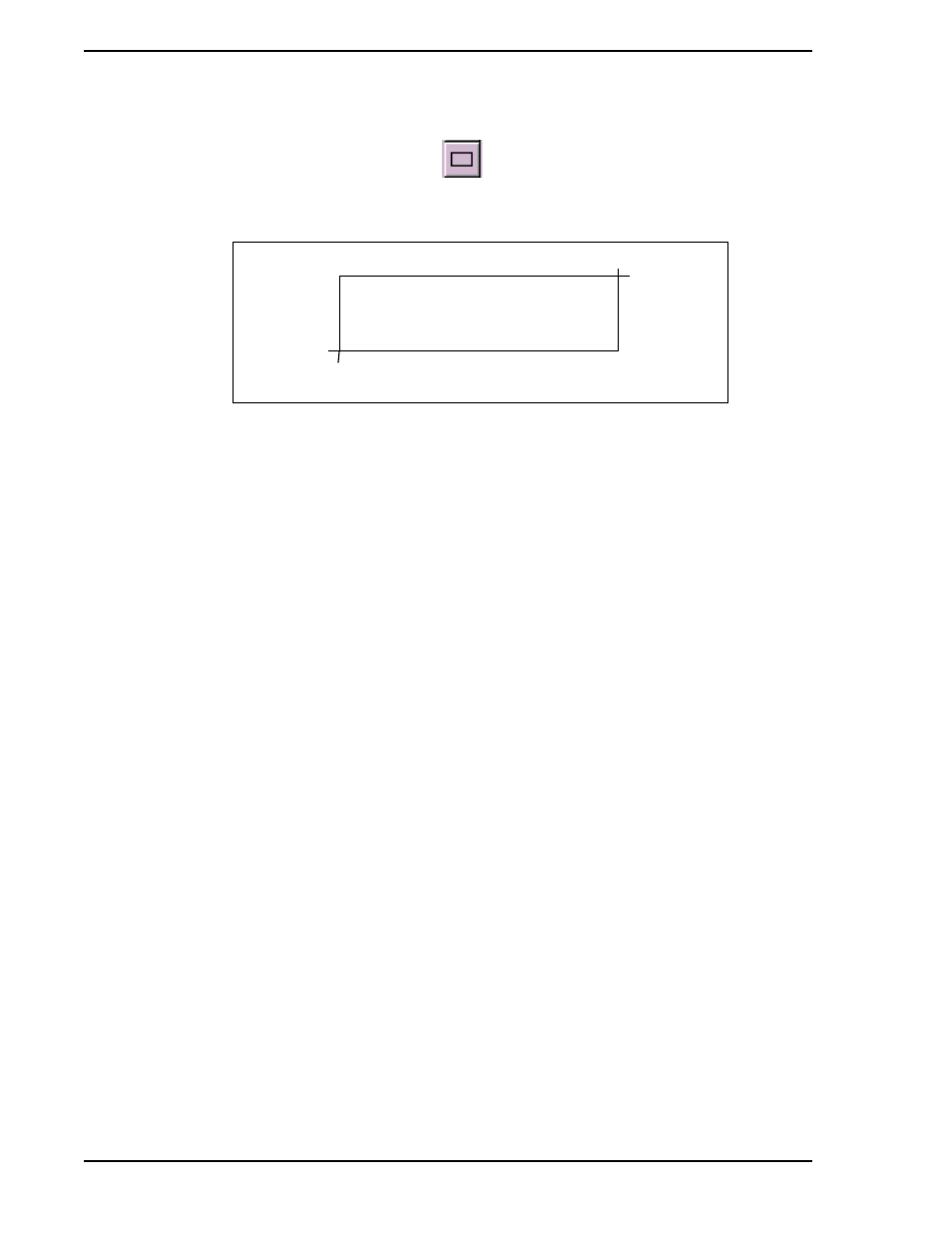

Rectangles are created using the Rectangle button and choosing two opposing corners for each
rectangle.
EXAMPLE:
1. Click the Rectangle button.
2. Position the pointer where the first corner of the rectangle is to be placed (a).
3. Press and hold the left mouse button while dragging the pointer to the second (opposite)
corner of the rectangle (b).
4. Release the left mouse button. (The rectangle appears on the screen.)
5. Repeat steps 2 through 4 to create more rectangles if necessary, or terminate the procedure.
b
a
