Micro-PWC CONFIGURATION GUIDE
Grafx Editor 87
4.2.4.4 Creating Circles

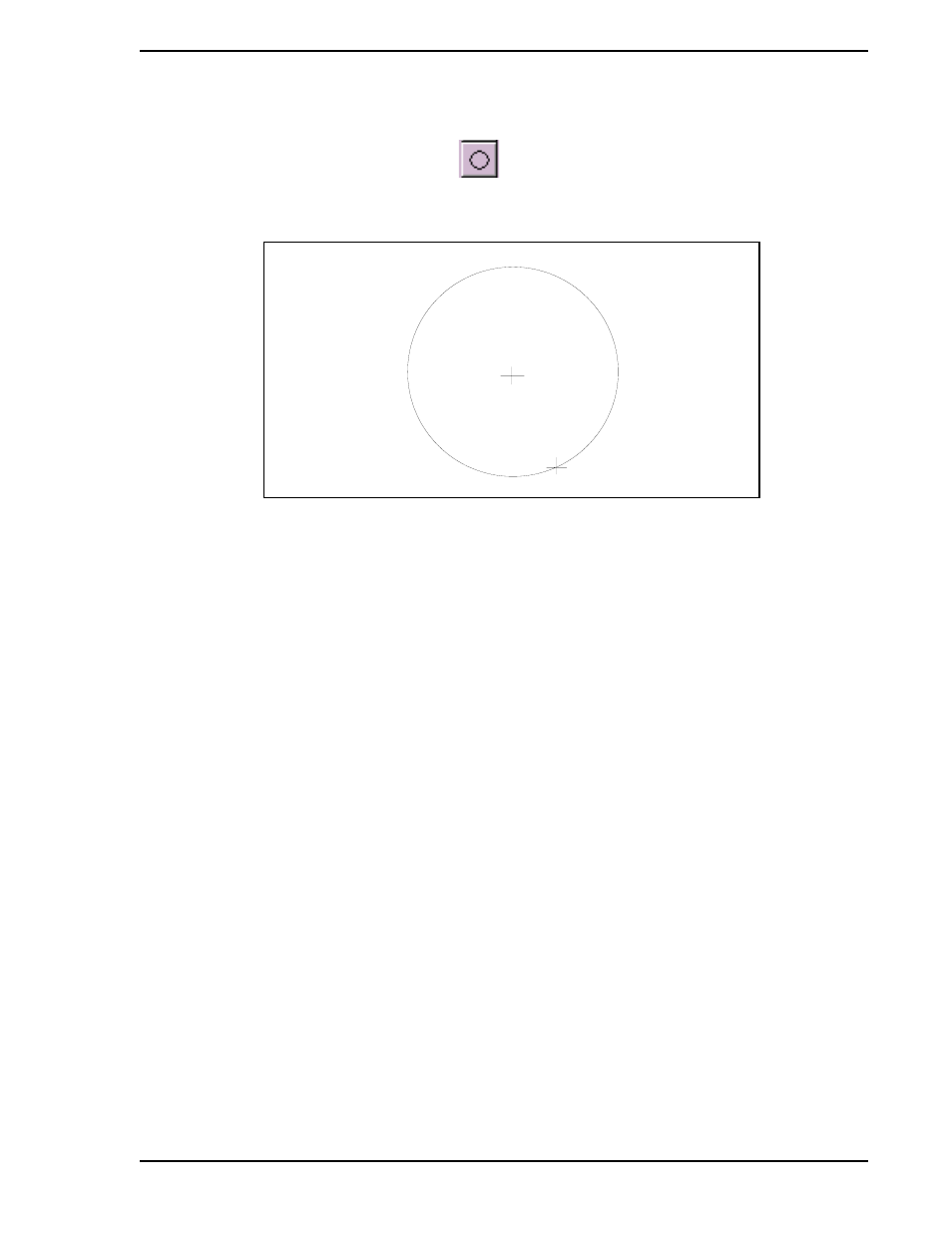

Circles are created using on the Circle button . The location and size of the Circle are indicated by
picking the center and a point on the edge.
EXAMPLE:
1. Click the Circle button.
2. Position the pointer over the point chosen to be the center of the circle (a).
3. Press and hold the left mouse button, while dragging the pointer to the location for the edge of
the circle (b). Release the left mouse button. (A circle appears on the screen.)
4. Repeat steps 2 and 3 to create more circles if necessary, or terminate the procedure.
a
b
