88 Grafx Editor
4.2.4.5 Creating Markers
Markers are created using the Marker button
. Markers are small characters used to indicate posi-
tions of single points. Markers are used while constructing objects to help in placement. They are created
by picking (clicking on) points in the Working View.

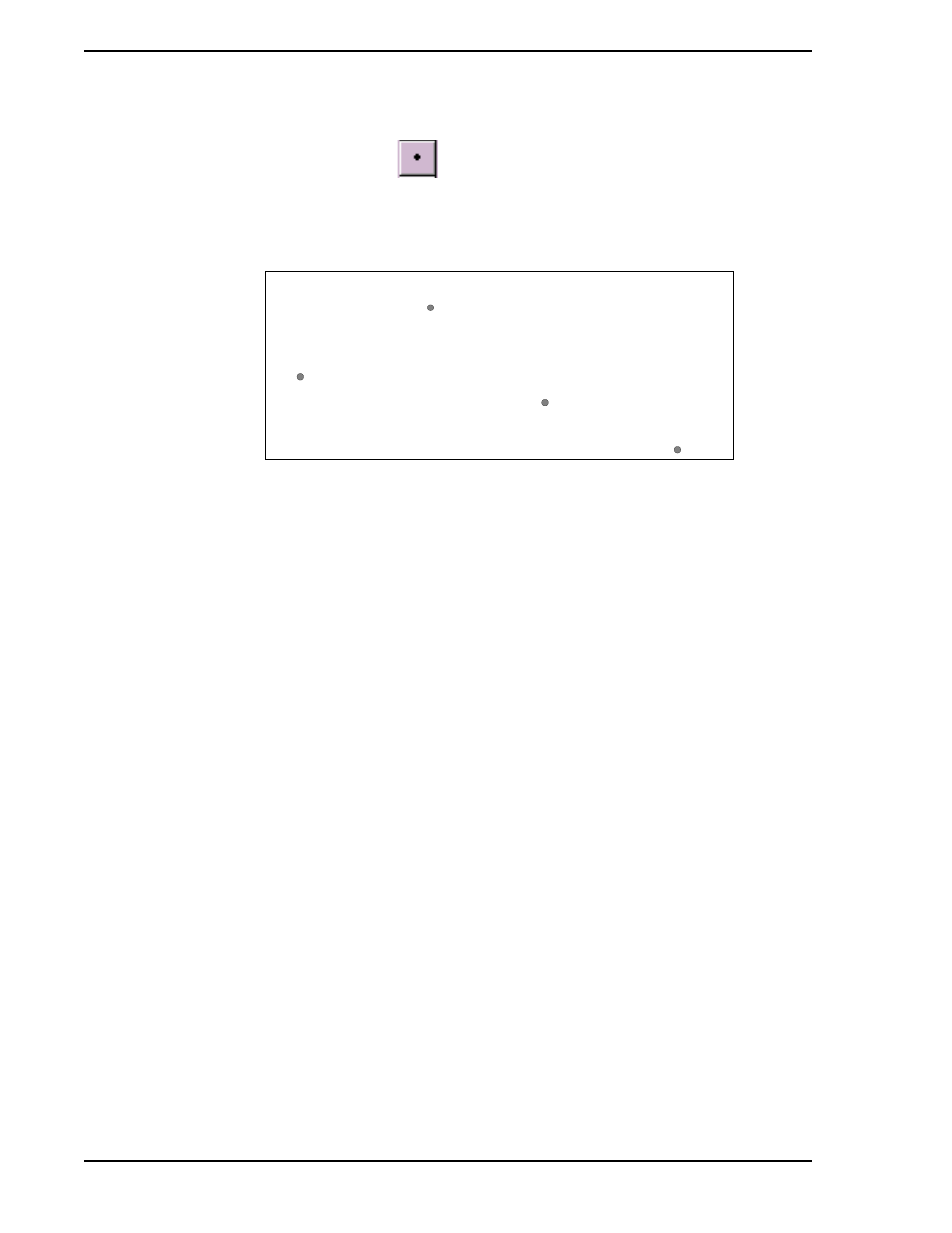

EXAMPLE:
1.
Click the Marker button.
2.
Position the pointer over the location for the marker (a), then click the left mouse button.
(A marker appears on the screen.)
3.
Repeat step
to create more markers (b,c,d) if necessary, or terminate the procedure.
d
b
c
a
