Micro-PWC CONFIGURATION GUIDE
192 Grafx Editor
4.4.5.4 FP_DYHisttrend
In the Grafx editor, FP_DYHisttrend appears simply as an unfilled rectangle which covers the extent of the
submodel. Once the graphic containing this submodel has been installed, a properly configured instance of
FP_DYHisttrend appears as shown in

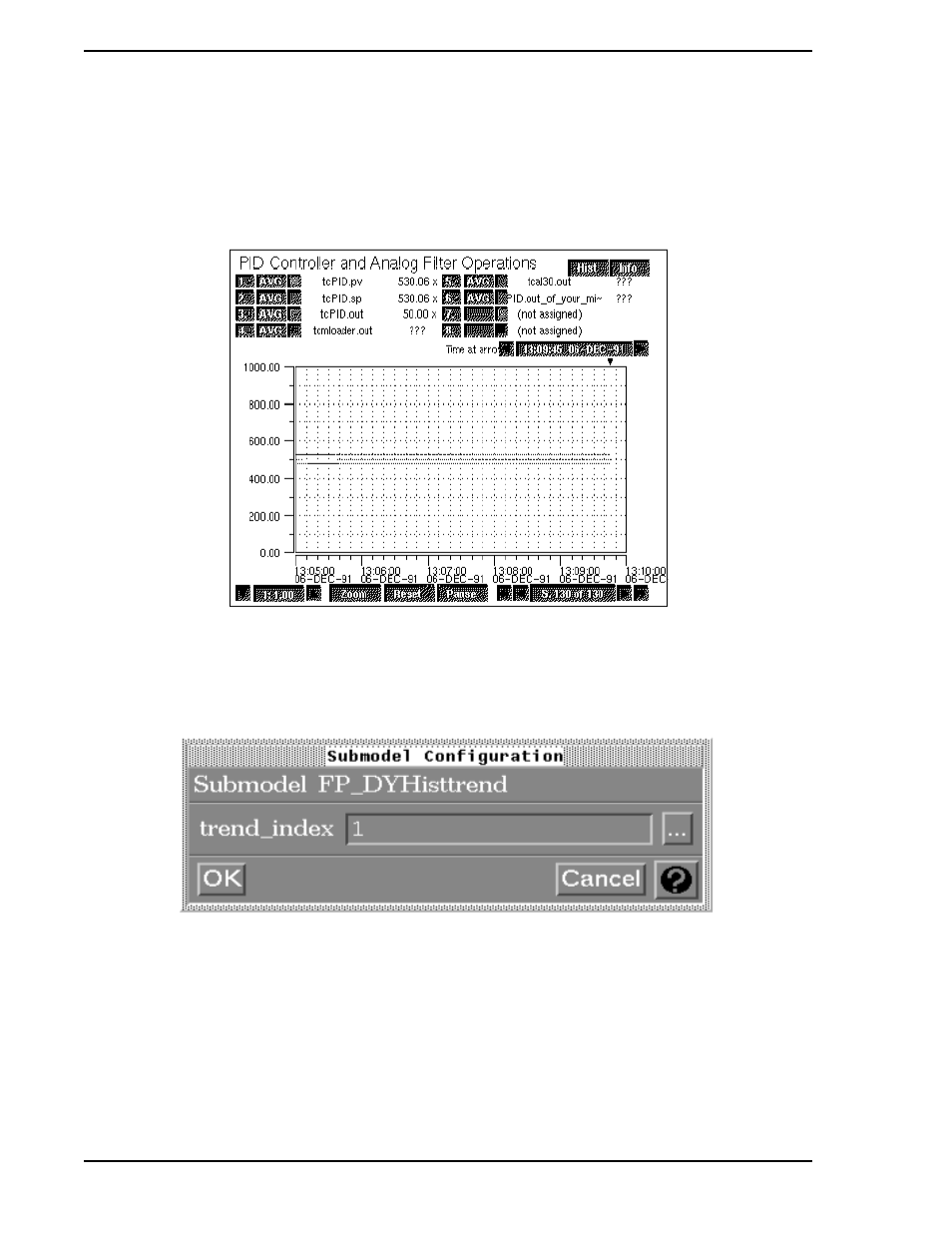

Figure 4-72 . The submodel FP_DYHisttrend is an Historical Trend
display.
Position the pointer on the submodel and click the right mouse button, then click on the Configure Sub-
model item on the resulting pull-down menu. The following Submodel Configuration window will appear.
Variables
Figure 4-72. Historical Trend Model (FP_DYHisttrend)
Figure 4-73. Historical Trend Model Configuration Window
trend_index Enter the index number of the Historical Trend to be displayed when the button is
clicked.
(User must define variable.)
