4.4.3 Submodels for Control and Data Entry
4.4.3.1 FP_DYctrlpb
The submodel FP_DYctrlpb ( Figure 4-34 ) is a model of a pushbutton which, when pressed, displays (in a
pop-up window) the appropriate group display model for the configured controller database point, allowing
for control of that point from a graphic.
✎ Note
Some Control and Data Entry Submodels use the variables
low_color, up_color, and face_color as shading colors to give the
button a 3 dimensional appearance. If these variables are not
configured, the default colors listed with the variable description will
be used. As a general rule, up_color should be lighter than
face_color, which in turn should be lighter than low_color.

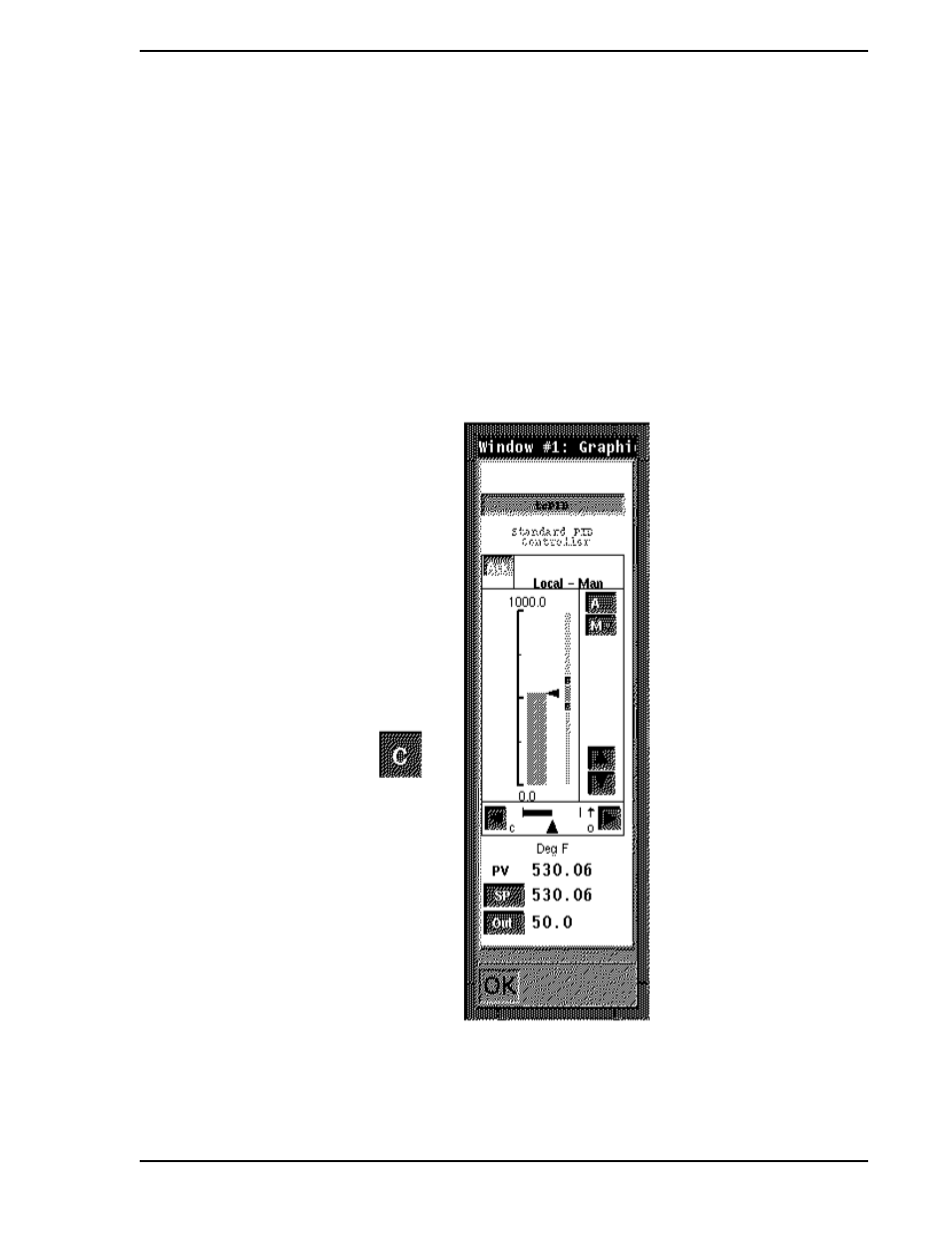

Figure 4-34. Control Pushbutton (FP_DYctrlpb) and Resulting Pop-up Window
