From the System Window, select Menu > Configure > Network Parameters > Event Bit Names to display
the Event Bit Configuration window (
Figure 2-16 ).
By default, the top area of this window contains a list of the first 15 Event Bits and their names, which can
have a maximum of 15 characters. Below this list are Go To and Find buttons, used to access other Event
Bits. A Delete All button is also available for clearing the event bit name configuration. The functions of
these buttons are described below.
2.8.2.1 Edit Event Bit Name
To enter or change an event bit name, first click the text entry box and enter (or modify) an event bit name
of up to 15 characters.
To reference a particular Supervisor card SDT or 53MC5000B SDT event bit, configure the Event Bit name
to be the tagname of the SDT module, followed by a two-digit number specifying which bit in the SDT the
event refers to. For example, an Event Bit named PUMPSTAT03 would be triggered whenever bit 3 in an
SDT with tagname PUMPSTAT is triggered.
2.8.2.2 Go To
Use the Go To button to access an event bit by its index number. Click Go To; a window will be displayed.
Click the text entry box labelled Enter Event Bit Index and enter the index number of the desired event bit,
then click OK. A list of 15 event bits, starting at the requested event bit, will be displayed in the Event Bit
Configuration window.
TC00160A

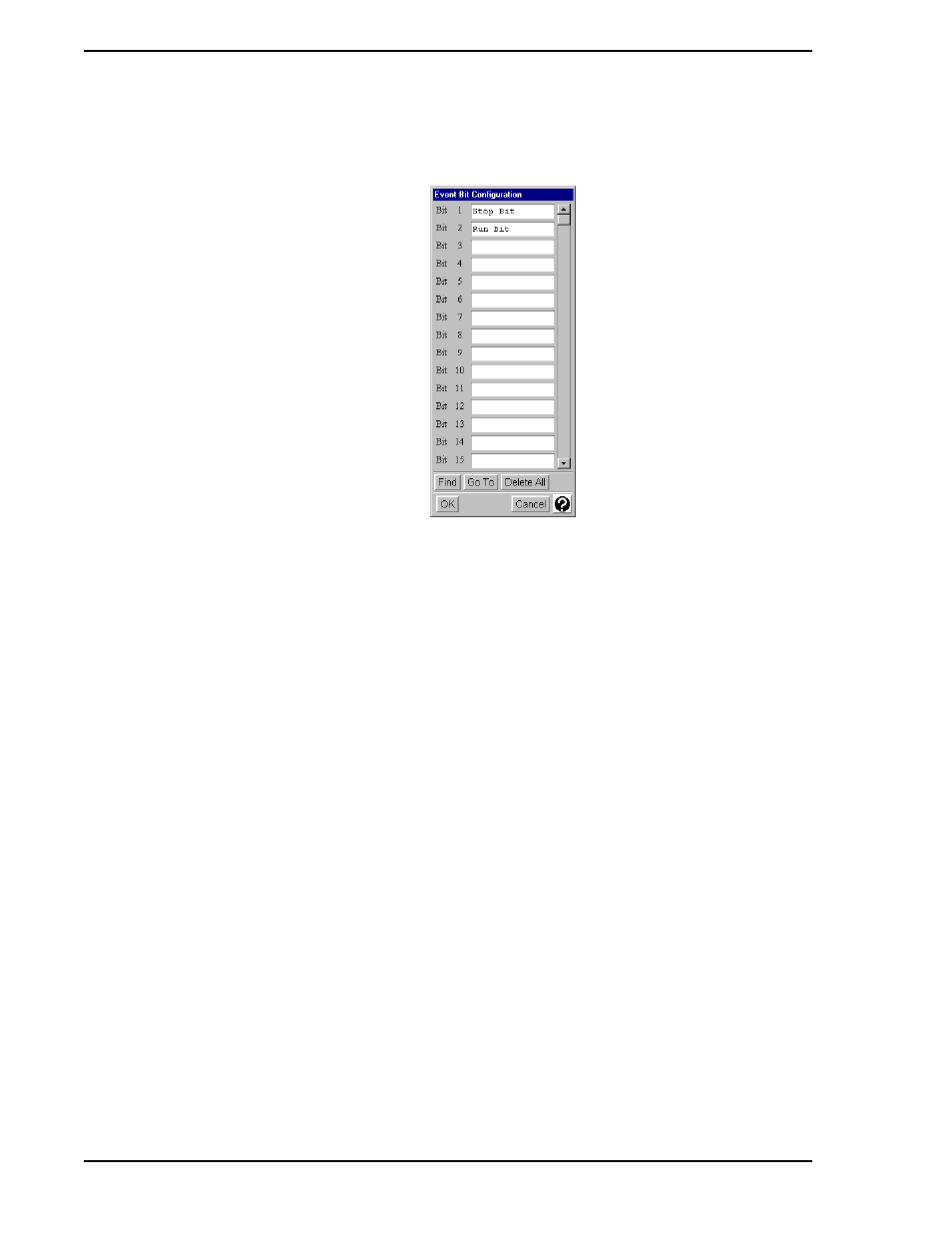

Figure 2-16. Event Bit Configuration Window
✎ Note If a client is being run, the Event Bit configuration can be run only
from the node where the database resides. This node should be a
server node.
