Micro-PWC CONFIGURATION GUIDE
System Configuration 31
2.8.0.2.3 Specifying a Printer Review Display
If Printer Review is selected as the display type, a Printer Selection window ( Figure 2-14 ) will appear. This
window contains a list of devices configured on the network. Click the name of the device containing the
messages which are to be displayed. The device name will be highlighted. Click OK (or double-click the
device name) to complete the operation. If a device has been specified, use of the Vector button will cause
the Printer Review display for the selected device to appear.
If only one display is available for the chosen display type (as is the case for System Status, Alarm Review,
Event Review, Message Review, and Event Historian displays), no index number is required. Click the
desired type in the Display Type list. The name of the type will be displayed in the Display Type field below
the list and the Index field will display a pair of dashes (--).
Target display selection is not saved until either the OK or Apply button in the Alarm Vector Configuration
window has been clicked.
TC00172A

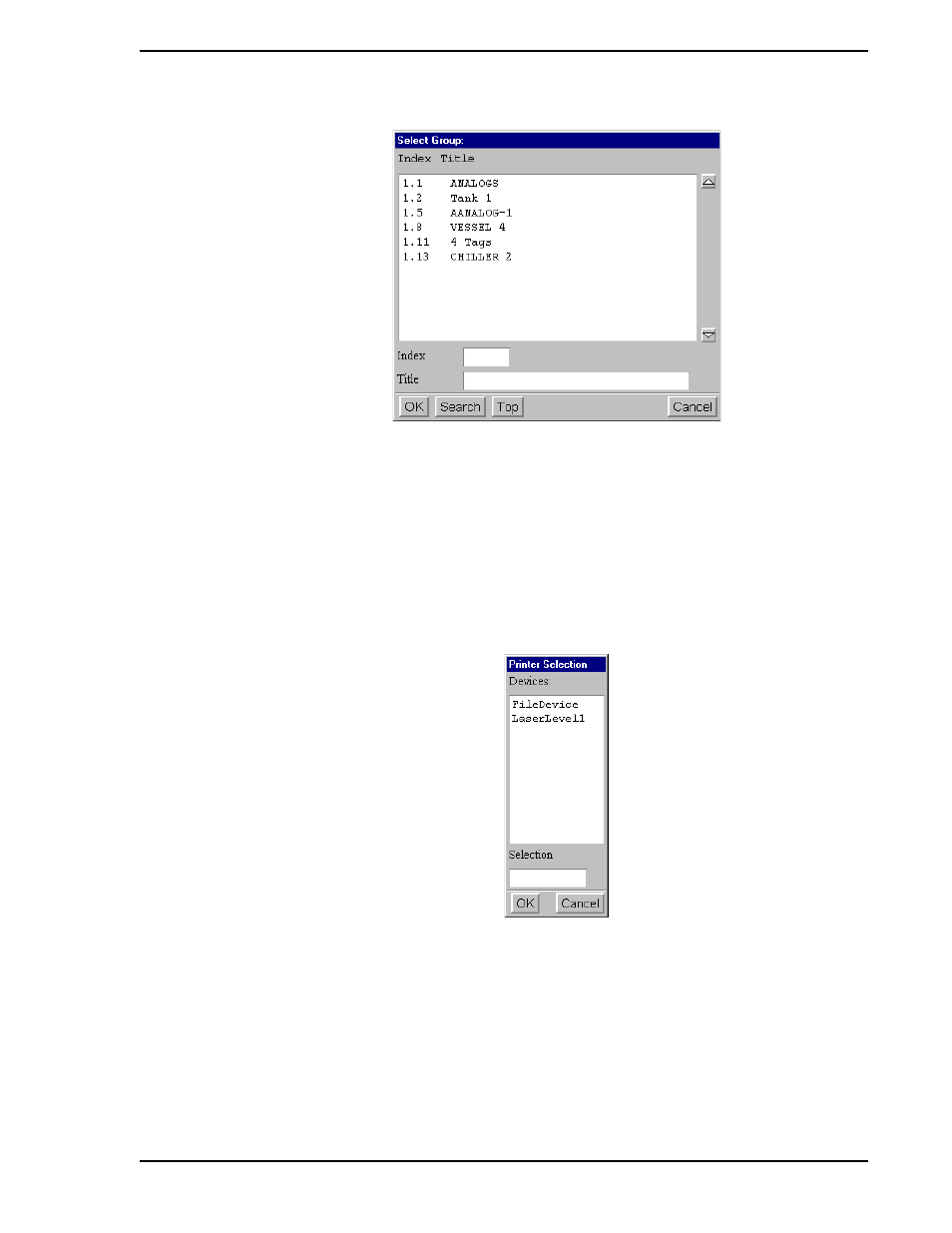

Figure 2-13. Select Graphic Window
TC00241A
Figure 2-14. Printer Selection Window
