Chapter 3 Tutorials
X6004 User’s Guide
82
3

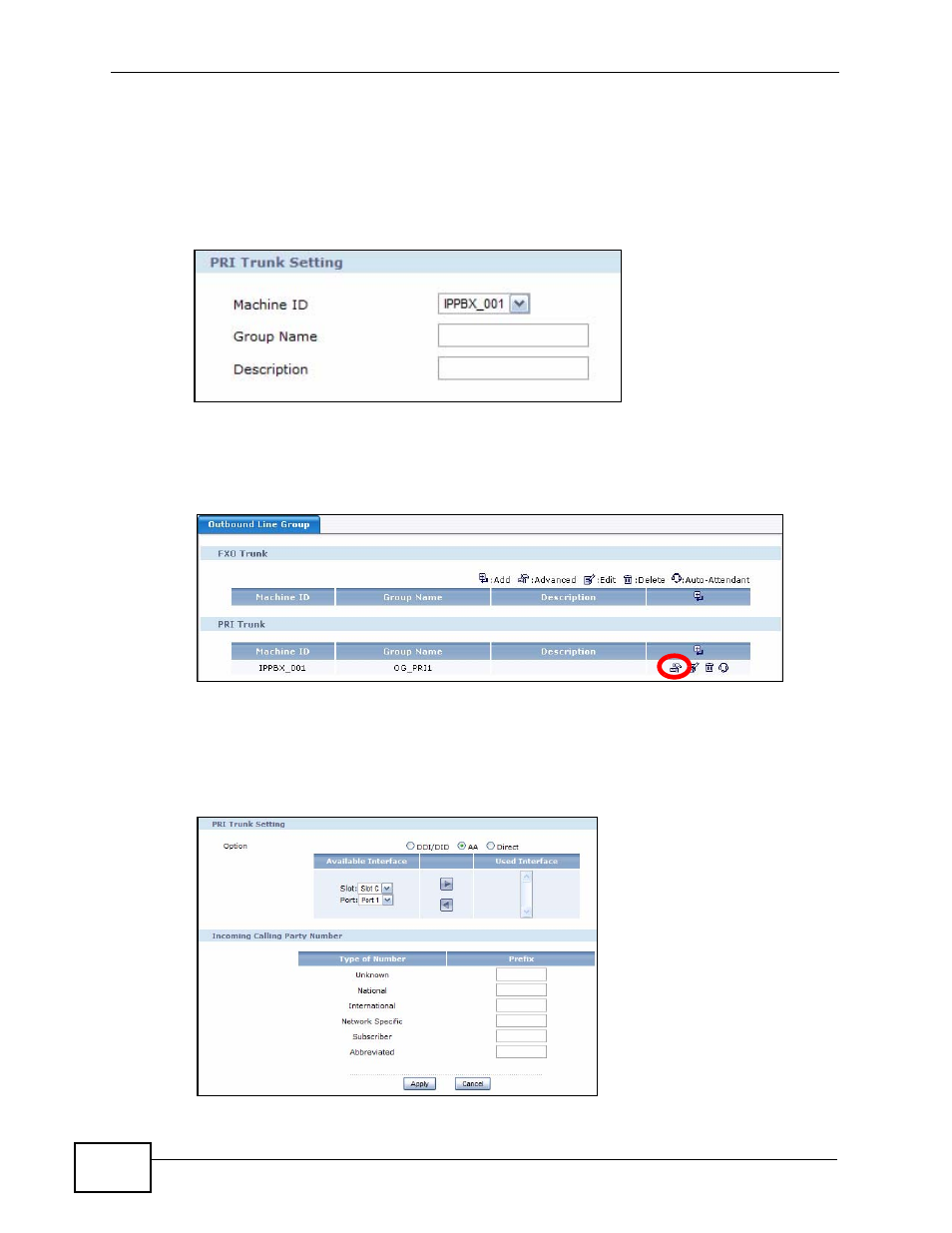

Click the Add icon in the PRI Trunk section to open the following screen. Enter
the name of the group (OG_PRI1 in this example) and click Apply. Note the
Machine ID field (this is a name automatically assigned to the X6004). In some
web configurator screens, the outbound line group is identified in the following
format Machine ID:Group Name, so in our example it is
IPPBX_001:OG_PRI1.
4
The new outbound line group displays in the following screen. Now you will add
the FXO connections to the outbound line group. Click the outbound line group’s
Advanced icon.
5
The following screen displays. Assume that you want calls on Slot B and Port 1 to
be answered by the Auto-Attendant, so select AA and the correct slot and port.
Click the Right icon to move the slot and port to the Used Interface column.
Click Apply when you are done.
