Chapter 23 ZyStack
X6004 User’s Guide
366
The following table describes the labels in this screen.
23.3 ZyStack Intranet Setup
Use this screen to manage local subnets from which IP phones connect to the
X6004s in the ZyStack. Click Configuration > ZyStack > Intranet to view the
following screen.

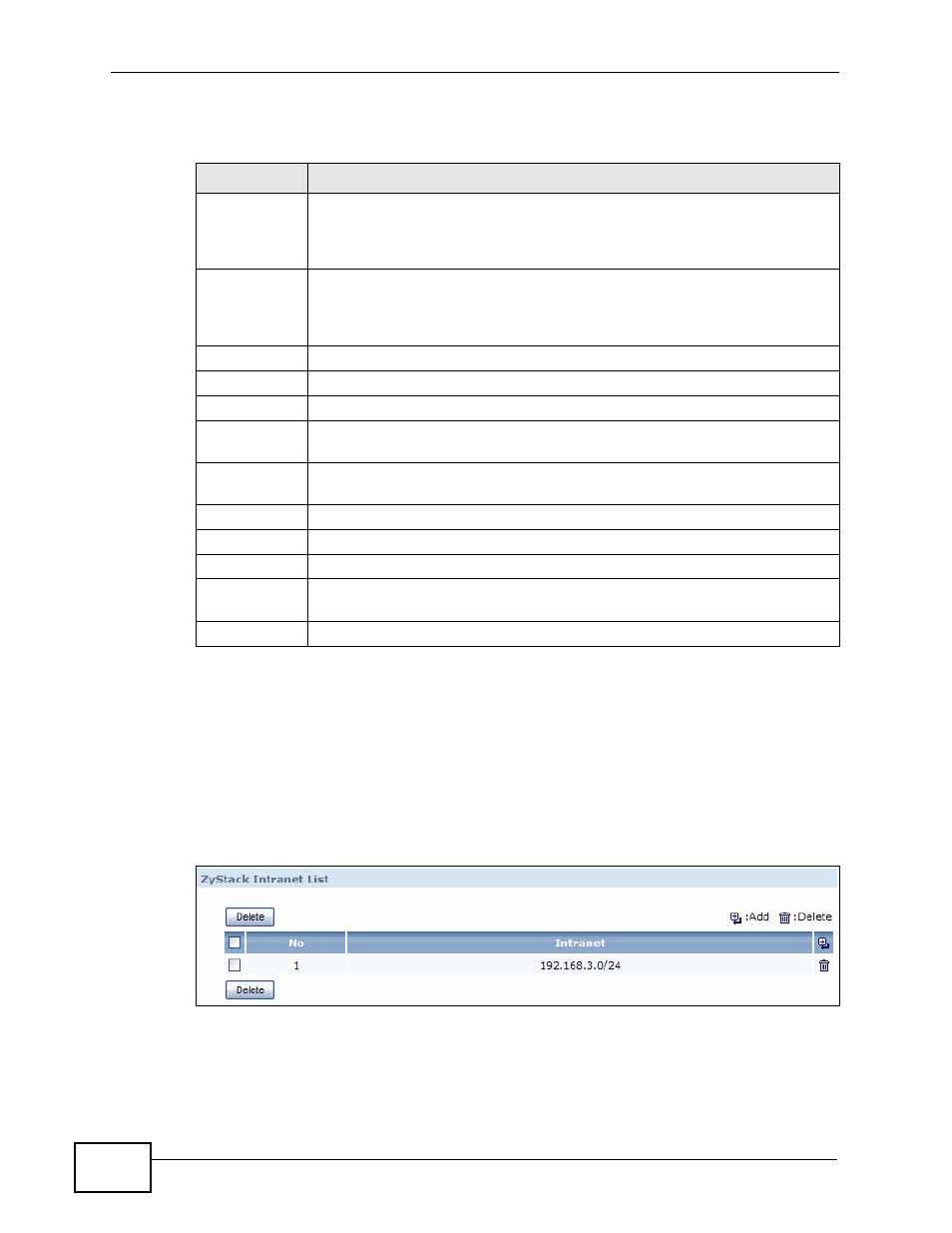

Figure 215 ZyStack Intranet
Table 132 ZyStack Edit
LABEL DESCRIPTION
Machine ID This field displays the system name of the X6004. The system name is
automatically assigned to the X6004 based on when it was added to the
ZyStack. IPPBX_001 is always the master (or a stand-alone IPPBX)
followed by slaves IPPBX_002, IPPBX_003 and so on.
Serial Type the serial number of the X6004 you want to add to the ZyStack. You
can get the serial number by clicking on the edit icon in the
Configuration > ZyStack > Setting screen of an X6004 that is not part
of a ZyStack.
Description Type a description for this ZyStack member.
WAN IP This field displays the WAN IP address of the X6004.
LAN IP This field displays the LAN IP address of the X6004.
Z_Interface This field displays the interface (LAN or WAN) which the X6004s use to
form the ZyStack. This interface is the same for all X6004 in the ZyStack.
Type This field displays whether the X6004 is a Master or a Slave member of
the ZyStack.
WAN MAC This field displays the MAC address of the WAN interface of this X6004.
LAN MAC This field displays the MAC address of the LAN interface of this X6004.
Set Click Set to save your changes.
Cancel Click Cancel to go back to the previous screen without saving your
changes.
Reset Click Reset to reset the screen to the last saved configuration.
