Chapter 5 Network Deployment
X6004 User’s Guide
130
5.2 The LAN Screen
Use this screen to set up the LAN IP address of the X6004. To access this screen,
click Configuration > Network > LAN.

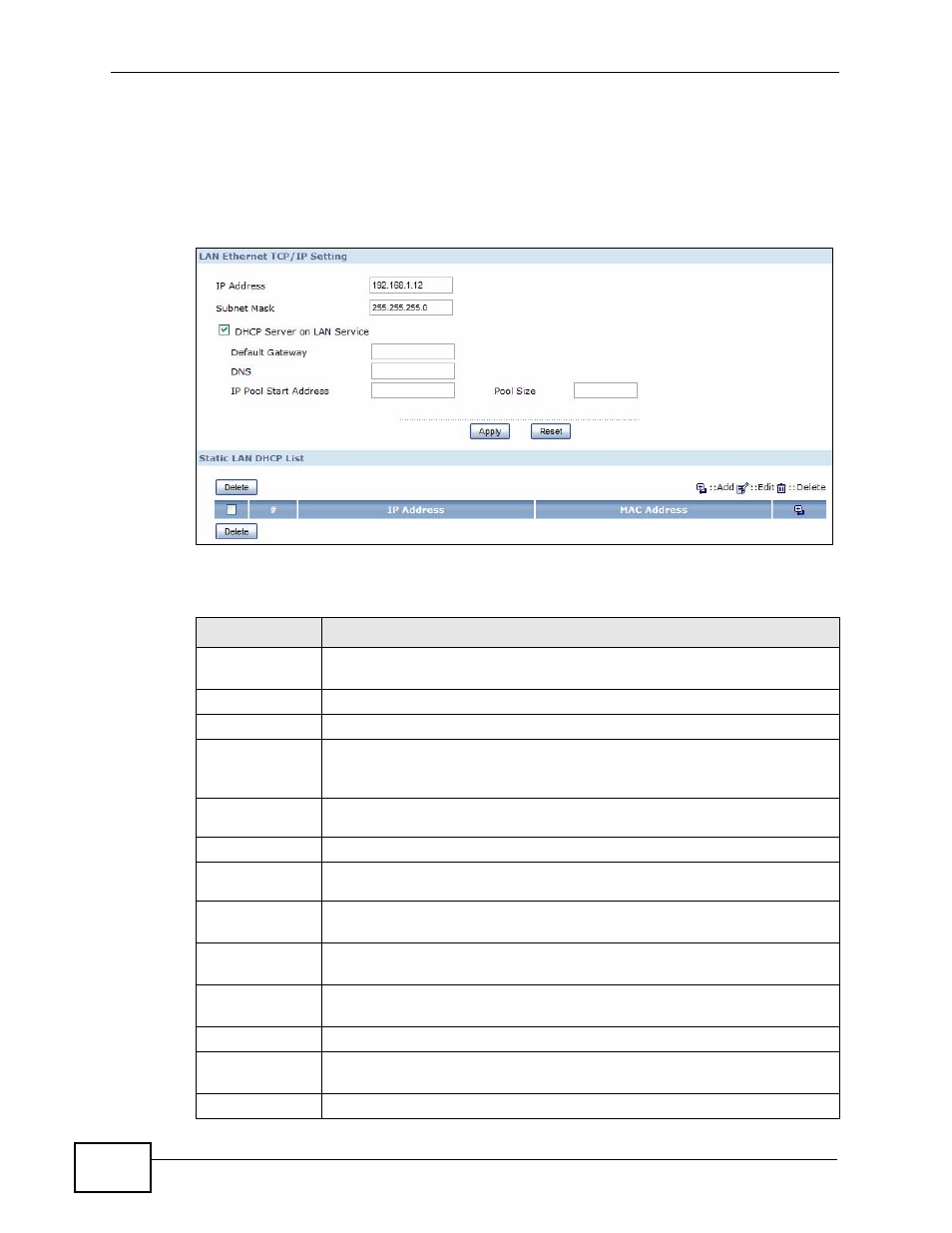

Figure 42 Network > LAN
Each field is described in the following table.
Table 13 Network > LAN
LABEL DESCRIPTION
LAN Ethernet
TCP/IP Settings The IP address you configured here is the SIP server IP address that the
IP phones on your LAN connect to.
IP Address Enter the IP address of the X6004 on the LAN.
IP Subnet Mask Enter the subnet mask of the LAN.
DHCP Server on
LAN Service
Select this to allow the X6004 to assign IP addresses to IP phones on
the network to which it is connected. It cannot function as a router in
this capacity.
Default
Gateway
Enter the DHCP server’s default gateway IP address.
DNS Enter the DNS server IP addresses
IP Pool Start
Address
Enter the first IP address in the IP pool.
Pool Size Enter the maximum number of IP addresses to be issued by the DHCP
server.
Static LAN
DHCP List This section allows you to configure a list of static IP addresses. These
IPs will not be used by the DHCP server.
Delete Select an item from list, then click this button to remove it. Once
removed, it becomes eligible for issuance by the DHCP server.
Select Check a box to select an item from the list.
IP Address This displays a DHCP-issued IP address on your network and its
associated MAC Address.
MAC Address This displays the MAC address associated with the IP address.
