11.3 The DSP Management Screen
Use this screen to manage the DSP channels available on the X6004. To access
this screen, click Configuration > PBX > Server Configuration > DSP
Management.
Note: Your changes of DSP resource reservation will be applied after all ongoing calls
are finished.

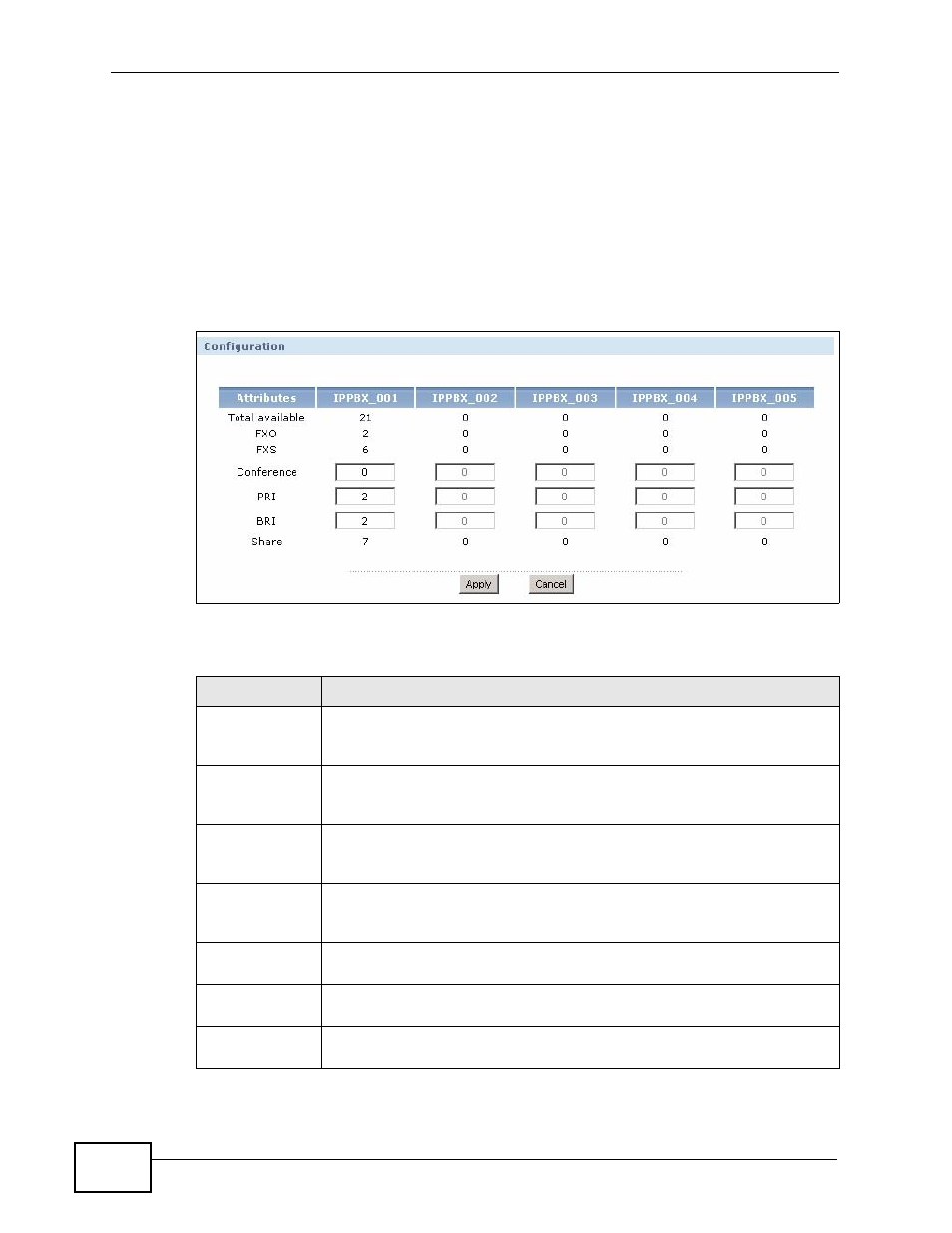

Figure 89 Server Configuration > DSP Management
Each field is described in the following table.
Table 48 Server Configuration > DSP Management
LABEL DESCRIPTION
Attributes This column displays which features use the DSP channels on the
X6004. If you have a ZyStack configured, each column identifies a
single X6004 in the ZyStack.
Total
available
The X6004 automatically detects the total available DSP channels
available on the X6004 and displays them in this field. This value is
based on the DSP modules you have installed on the X6004.
FXO This field displays the total DSP channels assigned to the FXO ports on
the X6004. The X6004 automatically assigns one DSP channel per FXO
port on the X6004.
FXS This field displays the total DSP channels assigned to the FXS ports on
the X6004. The X6004 automatically assigns one DSP channel per FXS
port on the X6004.
Conference Specify the DSP channels you want to assign specifically for conference
calls on the X6004.
PRI Specify the DSP channels you want to assign specifically for the PRI
port on the X6004.
BRI Specify the DSP channels you want to assign specifically for the BRI
ports on the X6004.
