23.4 ZyStack Status
Use this screen to view the status of the ZyStack as well as perform network
connectivity tests between X6004s. Click Configuration > ZyStack > Status to
view the following screen.

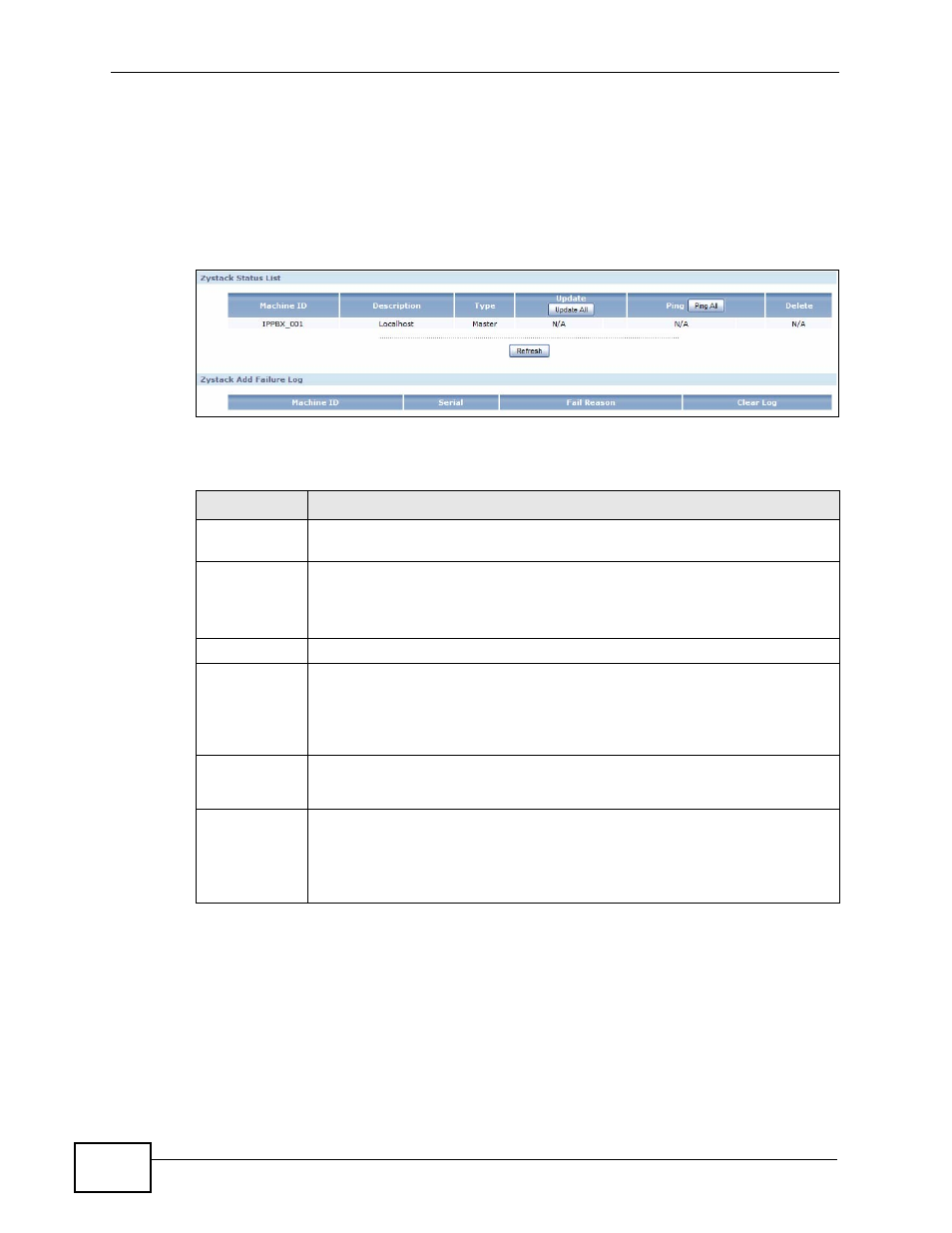

Figure 217 ZyStack Status
The following table describes the labels in this screen.
Table 135 ZyStack Status
LABEL DESCRIPTION
ZyStack
Status List This table displays the X6004s participating in the ZyStack and their
current status.
Machine ID This field displays the system name of the X6004. The system name is
automatically assigned to the X6004 based on when it was added to the
ZyStack. IPPBX_001 is always the master followed by slaves
IPPBX_002, IPPBX_003 and so on.
Description This field displays the description of this ZyStack member.
Type This field displays the role this X6004 performs in the ZyStack. The
options are:
• Master - controls configuration on all the other X6004s.
• Slave - all configuration is done on the slave from the master X6004.
Update/
Update All
Click an Update button refresh the item’s information on this screen, or
click Update All to refresh all of the information.
Ping Click a Ping button to test IP connectivity with one member of the
ZyStack or click Ping All to test IP connectivity with all members of the
ZyStack. This field displays N/A when this function is not available for a
specified X6004. This field displays Ok if you have a network connection
from the master to the slave X6004.
