Chapter 33 Remote Management
X6004 User’s Guide
466
Login Screen
After you accept the certificate, the X6004 login screen appears. The lock
displayed in the bottom right of the browser status bar denotes a secure
connection.

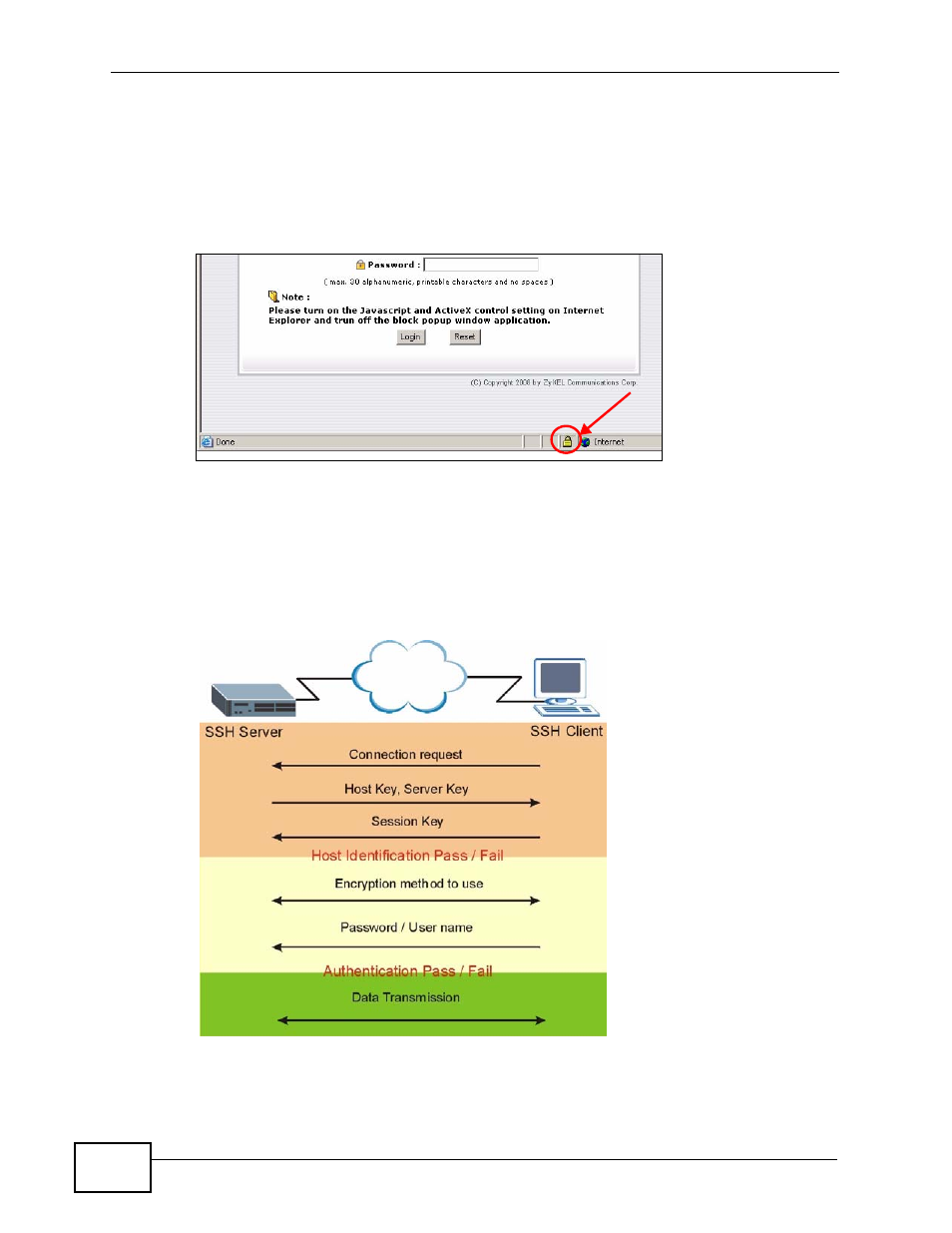

Figure 272 Example: Lock Denoting a Secure Connection
How SSH Works
The following table summarizes how a secure connection is established between
two remote hosts.
Figure 273 How SSH Works
WAN
